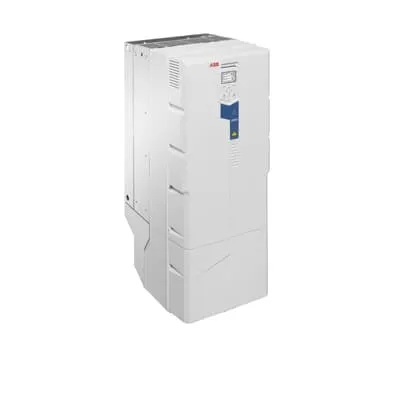

ABB 3ABD00048746-D LV AC wall-mounted drive for water and wastewater - IP21/IP55
Part Number: 3ABD00048746-D
Quick Summary
ABB 3ABD00048746-D LV AC wall-mounted drive for water and wastewater delivers precise pump control. This compact solution is designed to optimize pumping performance in municipal and industrial water applications while reducing energy consumption. CE certified with IP21 enclosure as standard, with optional IP55 and flange mounting variants to suit harsh environments. By integrating sensorless flow calculation, multipump control, level management, and dry-run protection, it not only cuts operating costs but also enhances system reliability. The drive also features an energy calculator to visualize savings, while intuitive control options like Hand-Off-Auto, Drive Composer, and a Bluetooth interface streamline commissioning and ongoing maintenance. In short, it provides robust, compliant performance with clear business value for pumping stations and treatment facilities.
Product Information
Extended Description
3ABD00048746-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: The drive includes sensorless flow calculation and multipump control to optimize water distribution, reducing energy use across pumping stations and boosting reliability in municipal systems. This translates to measurable energy savings and smoother operation in wastewater facilities. Feature → Business Impact → Application: Level control and dry run protection minimize pump downtime and equipment wear, extending pump life and lowering maintenance costs in vertical lift stations and treatment plants. Feature → Business Impact → Application: Soft pipe fill and quick ramps enable gentle start/stop sequences, reducing surge events and protecting piping networks in municipal networks and industrial water processes. Feature → Business Impact → Application: Built-in energy calculator visualizes savings, supporting operational benchmarking and justifying capital projects for efficiency upgrades in large-scale pumping projects. Feature → Business Impact → Application: Intuitive Hand-Off-Auto control, Drive Composer PC tool, and optional Bluetooth panel shorten commissioning and troubleshooting cycles, delivering faster ROI for engineering teams. Feature → Business Impact → Application: IP21 standard enclosure with IP55 and flange options provides installation flexibility and ruggedness, easing retrofits in confined spaces or challenging plant environments. Feature → Business Impact → Application: Pn 200 kW and 363 A rating ensures compatibility with mid-to-large surface pumps, enabling scalable solutions in water reuse, lift stations, and treatment facilities. Feature → Business Impact → Application: Compliance with CE and industry standards reduces risk during audits and supports regulatory adherence in municipal and industrial contexts.
Get a Quick Quote for a ABB 3ABD00048746-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048746-D?
Enquire Now
FAQs
Yes. The drive is designed for wall-mounted installation in water and wastewater systems. It ships with a standard IP21 enclosure and offers optional IP55 and flange mounting variants, giving you flexibility for tight spaces, corrosive environments, and retrofit projects while maintaining easy access for maintenance.
The drive supports a nominal power of 200 kW and 363 A, suitable for mid-to-large pumping stations. It is compatible with IEC-based pump systems and provides sensorless flow calculation, soft starts, and dry-run protection to optimize motor performance and protect pumps during starts and stops.
Absolutely. The ACQ580-01 driven variant includes multipump control and level control capabilities, making it well-suited for multi-pump configurations in wastewater treatment plants, lift stations, and process streams where precise sequencing and protection are required.
The unit carries CE compliance and standard IP21 protection, with optional IP55 and flange mounting. These features support regulatory adherence in European markets and ensure reliable operation in moderate to challenging environments.
By leveraging built-in energy calculators, sensorless flow optimization, and efficient start/stop sequences, the drive reduces pump energy use and equipment wear, delivering lower energy bills, less downtime, and faster ROI for water and wastewater projects while simplifying maintenance.
