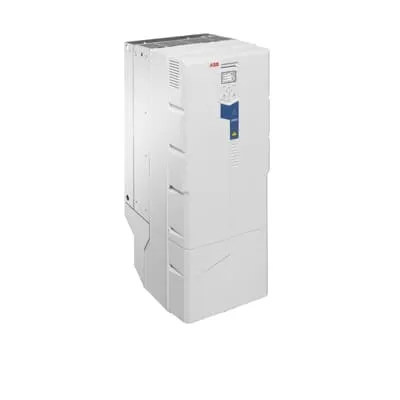

ABB ACQ580-01-430A-4+X1666+N7560 Wall-Mounted Drive - IP21
Part Number: 3ABD00048747-D
Quick Summary
ABB ACQ580-01-430A-4+X1666+N7560 wall-mounted LV drive delivers efficient motor control for water and wastewater pumping. Many systems struggle with energy waste and excessive wear due to variable flow, driving up operating costs. The solution leverages IP21 standard enclosure with IP55 option and pump-focused features such as sensorless flow calculation, level control, dry-run protection, and quick ramps. With an integrated energy calculator, Hand-Off-Auto control, and Drive Composer PC tool, it enables measurable energy savings, longer pump life, and simpler commissioning for water utilities and industrial process plants. This combination supports rapid deployment in new builds and retrofit projects, aligning with sustainability goals and total-cost-of-ownership improvement.
Product Information
Extended Description
3ABD00048747-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Sensorless flow calculation enables accurate flow estimation without additional sensors, reducing installation cost while improving energy efficiency in municipal and industrial pumping systems. This supports smoother process control and longer impeller life in wastewater stations. Feature → Business Impact → Application: Multipump control coordinates multiple pumps, balancing head and demand to minimize cycling and energy consumption, ideal for variable-demand water utilities and treatment facilities. Feature → Business Impact → Application: Level control and dry-run protection protect pumps from running dry, reducing maintenance costs and unplanned downtime in basins and lift stations. Feature → Business Impact → Application: Soft pipe fill and quick ramps reduce surge stress, extending pipeline and valve life while enabling gentler ramp rates for critical processes in potable water and industrial processing plants. Feature → Business Impact → Application: Built-in energy calculator and intuitive HMI (Hand-Off-Auto) accelerate commissioning and ongoing optimization, delivering measurable utility savings and faster return on investment for retrofit projects. Feature → Business Impact → Application: Drive Composer PC tool and optional Bluetooth control panel simplify configuration, monitoring, and remote support, improving maintenance efficiency and lowering on-site labor costs. The drive’s compact wall-mounted footprint, IP21 standard enclosure (with IP55 and flange options), and compatibility with common ABB interfaces make it a practical fit for new builds and upgrades in water and wastewater installations. Long-tail keywords addressed include water pumping efficiency, sensorless pump control, multi-pump coordination, energy calculator integration, and retrofit-ready motor drive.
