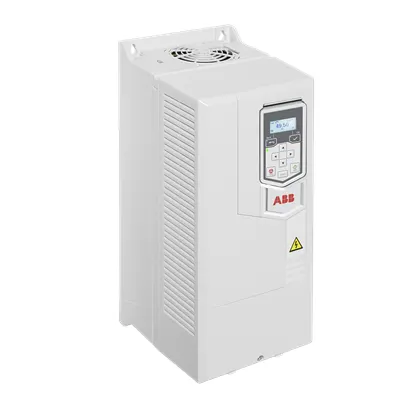

ABB ACS530-01-046A-4+0J404 AC Drive - IP20 Enclosure
Part Number: 3ABD00048775
Quick Summary
ACS530-01-046A-4+0J404 is a compact ABB drive that precisely controls motors for compressors, conveyors, and pumps. It addresses the common challenge of lengthy commissioning and integration in mixed industrial environments by delivering built-in features that reduce wiring and setup time. CE marking and IP20 enclosure help meet essential safety and indoor installation requirements, while the rugged design supports reliable operation in busy facilities. Designed for light industries such as food and beverage, plastics, textiles, material handling, and agriculture, it also supports energy efficiency and streamlined maintenance as a clear business advantage. This combination makes it easy to justify as a core component in modern automation architectures with compatible ABB controls and external PLCs.
Product Information
Extended Description
3ABD00048775 ABB: The ACS530-01 can control your compressors, conveyors, pumps, centrifuges, fans, and many other variable and simple constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The basic control panel enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. The wall-mounted ACS530-01 comes in an IP20 enclosure as standard.
Built-in essential features streamline drive selection and reduce wiring, enabling fast setup right out of the box. This lowers engineering effort and minimizes spare parts, cutting commissioning time for OEMs and maintenance teams. The ACS530-01-046A-4+0J404 is well suited to compressors, conveyors, pumps, centrifuges, and fans across light industries. IP20, wall-mounted enclosure provides reliable operation in indoor environments, reducing the need for additional protective housings and simplifying installation in cramped switchgear spaces. With a 22 kW power rating and IN 45 A input, the drive handles variable torque demands while maintaining smooth motor control, supporting energy efficiency and reduced operating costs. Interoperability with ABB controls and common PLCs enables seamless data exchange and remote monitoring, making it a practical choice for food & beverage, plastics, textiles, and material handling lines. The rugged design also helps minimize downtime and maintenance overhead in busy production environments, delivering predictable ROI for mid-sized automation projects.
Get a Quick Quote for a ABB 3ABD00048775
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048775?
Enquire Now
FAQs
The ACS530-01-046A-4+0J404 is designed for wall-mount installation in IP20-rated indoor spaces. Begin by selecting a stable mounting surface, mount the drive in a well-ventilated area, and connect the input power, motor, and any control wiring. Use the built-in control panel to program basic parameters, commission the drive quickly, and verify motor direction and speed setpoints. The integrated features minimize external hardware, reducing wiring complexity and wiring errors during installation.
The model specifies a 22 kW motor rating with an input current of 45 A. It comes in a wall-mounted IP20 enclosure and is CE marked for safety compliance. This combination supports reliable motor control for lightweight torque applications such as conveyors and pumps, while enabling compact installation and straightforward maintenance in standard industrial environments.
Yes, the ACS530-01-046A-4+0J404 fits well for light-industry conveyors in food and beverage lines due to its compact wall-mount IP20 enclosure, built-in control features for fast commissioning, and ABB reliability. While it isn’t an IP-rated outdoor drive, its IP20 protection is adequate for dry indoor environments common in processing facilities, reducing the need for extra protective enclosures.
The built-in control panel reduces reliance on external controllers and wiring, enabling faster diagnostics and simpler maintenance routines. Technicians can program, calibrate, and troubleshoot directly from the drive, shortening downtime during changes in line speed or torque requirements. This helps keep production lines running smoothly with less specialized support.
ROI improves through energy-efficient motor control, reduced wiring and auxiliary hardware, and faster commissioning. The 22 kW, 45 A configuration offers robust performance for compressors, pumps, and conveyors in light industries, while CE compliance and IP20 enclosure simplify safety and installation. Lower maintenance costs and shorter downtime contribute to a favorable payback period for mid-sized automation projects.
