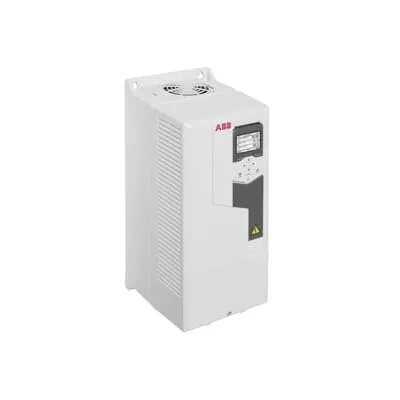

ABB ACS580-01-046A-4+J404 Wall-Mounted Drive - IP21/IP55 Options
Part Number: 3ABD00048859-D
Quick Summary
ABB ACS580-01-046A-4+J404 is a wall-mounted LV AC drive that provides precise variable-speed control for compressors, pumps, conveyors, and more. Engineers often grapple with lengthy commissioning and complex parameter tuning, so a straightforward setup with built-in assistants is highly beneficial. This drive leverages IP21 enclosure as standard, with IP55 and flange-mount variants available to fit varied industrial environments. By delivering robust protection and a simple settings interface, it reduces downtime and maintenance while enhancing process stability. For manufacturers and integrators, the ACS580-01-046A-4+J404 delivers energy-efficient control with easy integration into existing automation architectures, driving improved throughput and lower total cost of ownership.
Product Information
Extended Description
3ABD00048859-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: The ACS580-01-046A-4+J404 comes as a plug-in ready wall-mounted drive, reducing installation time and the need for extra hardware, which directly lowers commissioning costs for OEMs. This translates to faster project timelines for food & beverage lines, plastics processing, and material handling systems. Feature → Energy management → Application: Built-in energy-efficient control and straightforward menus enable faster tuning and stable speed profiles for fans, pumps, and conveyors, resulting in measurable energy savings and reduced operational expenses. Feature → Robust protection → Application: IP21 enclosure with IP55 and flange-mount options provides rugged reliability in factory floors, textile mills, and agriculture environments, ensuring compliance with basic protection against dust and moisture while maintaining performance. Feature → Integrated diagnostics → Application: Advanced assistants and recovery options minimize calibration drift and downtime, supporting predictive maintenance and longer asset life in heavy-use applications like extruders and centrifuges. Feature → Compatibility → Application: Plug-and-play compatibility with common PLCs and sensors reduces integration effort, enabling seamless upgrades in retrofit projects and new line installations. Feature → Lifecycle value → Application: The drive’s compact footprint and minimal additional hardware decrease spare part needs, lower installation costs, and improve total cost of ownership for long-running production lines.
Get a Quick Quote for a ABB 3ABD00048859-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048859-D?
Enquire Now
FAQs
The ACS580-01-046A-4+J404 is designed for plug-in readiness on standard low-voltage motors up to 22 kW. It supports straightforward wiring to typical sensors and PLCs, reducing integration effort. Its compact footprint and built-in features minimize the need for extra hardware, while its configuration assistants help ensure correct motor direction, ramp rates, and torque limits during retrofit or new installations.
Key specs include a 22 kW nominal power rating and 45 A current rating, an IP21 standard enclosure, and available IP55 and flange-mount variants. It is engineered for control of compressors, pumps, conveyors, extruders, centrifuges, mixers, and fans, delivering reliable torque control and energy-efficient operation in light industrial settings.
Yes. The ACS580-01-046A-4+J404 is purpose-built for general-purpose, variable-speed control in light industries. Its built-in features, quick setup, and robust protection suit applications in food & beverage, plastics, textiles, material handling, and agriculture, enabling smoother process control and reduced energy use in pumps and compressors.
The unit ships with an IP21 enclosure as standard, offering basic protection for indoor installations. For harsher environments, IP55 variants and flange mounting options are available, improving dust and moisture resistance and allowing flexible mounting to suit equipment layouts in production floors.
Built-in features and diagnostic tools streamline commissioning and ongoing maintenance, reducing downtime and service visits. The drive’s energy-efficient speed control lowers power consumption, while its compact, hardware-efficient design minimizes spare parts and installation costs, contributing to a favorable return on investment over the asset life.
