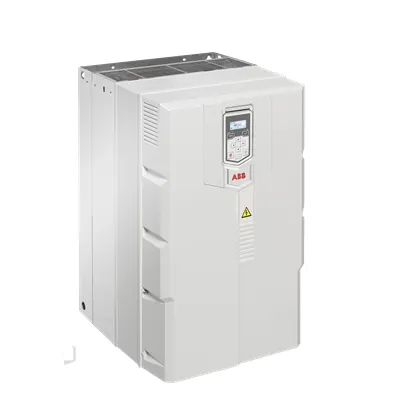

ABB ACS530-01-363A-4+N7562 - IP20 Enclosure Drive
Part Number: 3ABD00049217-D
Quick Summary
ABB ACS530-01-363A-4+N7562 is a compact variable frequency drive for precise motor control in compressors, conveyors, pumps, and other variable torque loads. Engineers often struggle with long setup times and complex configurations; this drive simplifies selection and commissioning with built‑in features and a straightforward wall‑mounted design to minimize downtime. It carries CE certification and IP20 protection, supporting reliable operation in moderate to demanding environments. By combining integrated control with a rugged construct, it delivers energy‑efficient performance and a scalable path within ABB’s ACS530 family, helping reduce total cost of ownership while enabling easier upgrades for future automation needs.
Product Information
Extended Description
3ABD00049217-D ABB: The ACS530-01 can control your compressors, conveyors, pumps, centrifuges, fans, and many other variable and simple constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The basic control panel enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. The wall-mounted ACS530-01 comes in an IP20 enclosure as standard.
Feature: Built‑in control panel and standard features simplify drive selection and commissioning. Benefit: Faster setup, reduced need for extra hardware, and lower maintenance costs. Application: Food & beverage lines, plastics processing, and material handling where quick start‑up matters.Feature: IP20 enclosure and rugged wall‑mounted design. Benefit: Durable performance in light industrial environments with straightforward installation and service access. Application: Packaging, textile, and agricultural equipment where space and protection matter.Feature: Broad application coverage across compressors, conveyors, pumps, centrifuges, and fans. Benefit: One drive platform supports multiple machine types, reducing supplier complexity and spare parts inventory. Application: Mixed production lines requiring flexible speed control and torque management.Feature: 200 kW PN and IN 363 A rating. Benefit: Handles demanding loads with reliable current capacity, improving process stability and control accuracy. Application: Large fans, pumps, and material handling systems demanding robust motor control.Feature: Built‑in basic controls and compatibility with the ACS530 family. Benefit: Faster integration, easier upgrades, and consistent performance across a product line. Application: Retrofit projects and new installations where a scalable, future‑proof VFD strategy matters.Feature: No unnecessary external hardware required. Benefit: Lower upfront cost, simplified commissioning, and reduced warranty risk. Application: Standard drive deployments in light industrial facilities seeking cost efficiency.
Get a Quick Quote for a ABB 3ABD00049217-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049217-D?
Enquire Now
FAQs
The ACS530-01-363A-4+N7562 is designed for light‑industrial variable torque and simple constant torque tasks. It excels in compressors, conveyors, pumps, centrifuges, and fans, delivering robust control in sectors like food & beverage, plastics, textile, material handling, and agriculture. Built‑in features reduce hardware requirements and accelerate commissioning for multi‑machinery lines.
Install the wall‑mounted drive on a sturdy frame with allowed clearances for cooling and maintenance. Connect mains L, N, and protective earth per the manual, wire motor outputs to the driven equipment, and use the integrated control panel for initial parameterization. Ensure the environment meets IP20 conditions and follow safety procedures for service access.
The drive provides a 200 kW nominal power rating with an input current of 363 A. It comes in an IP20 wall‑mounted enclosure and is suitable for controlling compressors, conveyors, pumps, centrifuges, and fans. Its integrated control features support reliable torque and speed regulation for a range of light industrial applications.
Yes. The ACS530‑01 series conforms to CE marking requirements, indicating compliance with applicable EU safety, health, and environmental protection standards. This ensures conformity for industrial installation and helps support regulatory compliance in European operations.
The drive’s built‑in features and minimal external hardware reduce maintenance overhead and spare parts. Energy‑efficient speed control lowers motor electricity consumption, while faster commissioning shortens downtime during line changes or upgrades. Together, these factors contribute to a favorable ROI, especially on lines with frequent speed and torque adjustments.
