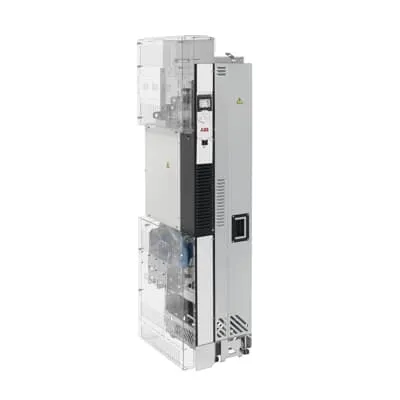

ABB 3ABD00049400-D Drive Module - Position Control
Part Number: 3ABD00049400-D
Quick Summary
ABB 3ABD00049400-D is a LV AC industrial single drive with position control for high-power motion in manufacturing. Engineers often face tuning and integration challenges when connecting drives to PLCs and motors; this module streamlines configuration with parameter-based setup and PLCopen motion blocks. It carries CE conformity and supports SIL-rated safety integration with proper safety controllers, enabling robust compliance for demanding machinery. With seamless connectivity to motors and PLCs, it reduces commissioning time and supports scalable applications in material handling, packaging, and automation lines, delivering predictable performance and lower total cost of ownership. This combination of flexibility and reliability makes it a practical choice for engineering teams pursuing uptime and consistency in production environments.
Product Information
Extended Description
3ABD00049400-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: Position control via the +N5700 program enables precise, repeatable motion on high-power axes. Business Impact: Reduces tuning iterations and downtime while delivering accurate positioning for complex material handling tasks. Application: Conveyor systems, palletizers, and automated warehousing that demand repeatable axis control. Feature: PLCopen motion control blocks provide flexible, parameter-driven configuration. Business Impact: Accelerates commissioning and supports rapid adaptation to different machines without custom software; improves engineering efficiency and time-to-production. Application: Multi-axis pick-and-place, machining centers, and packaging lines. Feature: Connectivity to all motors and PLCs ensures broad compatibility. Business Impact: Simplifies integration with existing control architectures, lowers integration risk, and minimizes new wiring costs. Application: Industrial plants deploying standard industrial networks and fieldbuses. Feature: High-power LV AC drive with 315 kW, 585 A capability. Business Impact: Handles demanding position control tasks with robust torque and speed response, reducing spare-part needs and extending uptime. Application: Heavy-load axes in material handling and manufacturing lines. Feature: ACS880 family reliability and safety-focused design. Business Impact: Builds in safety-ready performance and supports scalable maintenance strategies; helps meet regulatory requirements while reducing unplanned downtime. Application: Critical production lines requiring dependable drive performance and safety alignment.
Get a Quick Quote for a ABB 3ABD00049400-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049400-D?
Enquire Now
FAQs
Start by confirming compatibility with the ACS880 drive family and your motor rating. Connect the LV AC supply, wire the drive to the motor, and enable the +N5700 position control program. Use PLCopen motion blocks for parameter-driven setup, and align network connections with your PLC/HMI architecture to minimize commissioning time.
Key specs include a 315 kW nominal power rating and 585 A current capacity within the ACS880-04-585A-3+N5700 configuration. It is a LV AC drive module with position control capable of handling high-power axes, with PLCopen-based motion control for flexible programming and reliable torque and speed response.
Yes. The 3ABD00049400-D excels in high-power position control for heavy-load axes found in conveyors, palletizers, and automated storage systems. Its +N5700 position control, combined with PLCopen blocks, provides precise axis movements, repeatability, and smooth ramping—key for material handling throughput and reliability.
The module is designed to meet CE conformity for essential health and safety requirements. It also supports SIL-rated safety integration when paired with appropriate safety controllers, offering a path to compliant safe operation in automated machinery and complex production lines.
With parameter-based configuration and PLCopen compatibility, setup and maintenance are streamlined, reducing downtime during changes. The high-power, reliable ACS880 drive reduces spare-parts needs and extends equipment uptime, contributing to a favorable total cost of ownership and faster ROIs on automation projects.
