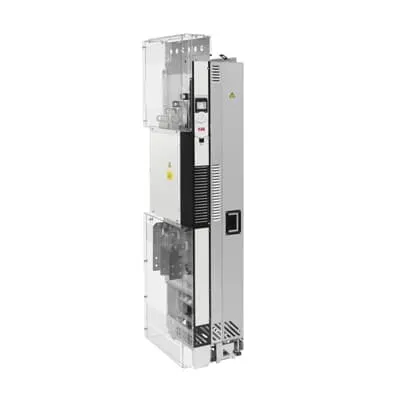

ABB 3ABD00049409-D LV AC Drive Module - Position Control
Part Number: 3ABD00049409-D
Quick Summary
ABB 3ABD00049409-D is a LV AC drive with precise position control for high-power motion in production and material handling. Engineers often struggle with motion inaccuracies, lengthy setup times, and downtime when integrating powerful axes into existing systems. This drive family targets CE conformity and supports PLCopen motion blocks, enabling safer, standardized configuration and easier programming. With seamless connectivity to all motors and PLCs, it delivers scalable control and reduced integration effort, driving lower total cost of ownership. For OEMs and end users, the result is reliable axis positioning, tighter process control, and smoother machine commissioning across varied production environments.
Product Information
Extended Description
3ABD00049409-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature → Benefit → Application: The ACS880-based 3ABD00049409-D delivers 450 kW of power and 820 A current, enabling high-torque, high-precision positioning for large axes, which translates to faster cycle times and improved throughput in material handling. This level of performance reduces mechanical wear and energy waste by maintaining steady torque and reducing motor slip during demanding moves, ideal for stamping presses, conveyors, and robotic guidance systems. Feature → Benefit → Application: Position control via the +N5700 PLCopen motion control blocks provides programmable axes with standardized blocks, simplifying integration with PLCs and motors. The business impact is faster commissioning, easier maintenance, and predictable motion programs across plant lines. Feature → Benefit → Application: Easy parameter-based configuration minimizes engineering time and error-prone setup, supporting rapid deployment in OEM facilities and retrofit projects. Feature → Benefit → Application: Broad connectivity to motors and PLCs ensures compatibility with diverse automation architectures, reducing spare parts and vendor lock-in while enabling scalable upgrades in production machinery. Feature → Benefit → Application: CE conformity and PLCopen-based motion control support compliance, safety readiness, and consistent performance in automotive, food & beverage, and packaging lines. The approach also mitigates common objections about complex programming by delivering clear, rules-based motion blocks and robust diagnostics. Feature → Benefit → Application: Documentation-driven maintenance and industry context provide practical, field-ready insights that help maintenance teams reduce unplanned downtime and extend equipment life.
Get a Quick Quote for a ABB 3ABD00049409-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049409-D?
Enquire Now
FAQs
Begin with the ACS880 configuration using the PLCopen motion control blocks (+N5700) to map axis numbers to your PLC. Ensure compatible motor wiring, provide proper safety interlocks, and set parameter ranges for torque, velocity, and position. Use the drive’s diagnostics to verify communication with the PLC and motor feedback. This approach minimizes wiring errors and accelerates commissioning, especially when upgrading production lines.
It delivers 450 kW of power and 820 A of current, supporting robust torque and precise positioning for large axes. The PLCopen-based motion control blocks offer scalable, modular programming, enabling repeatable axis moves across machines. This combination reduces cycle times, enhances repeatability, and improves process reliability in demanding automation environments.
Yes, the 3ABD00049409-D is CE-conformant, aligning with EU safety requirements. It supports PLCopen motion control blocks for safe, standardized programming and can be integrated with risk mitigation practices across automation workflows. For harsh environments, IP-rated enclosure options can further protect the drive while maintaining safe operation.
Ideal for production machinery and material handling applications where precise position control and high power are essential. Common uses include automated assembly lines, conveyors with accurate stop/start positions, and robotic axes requiring repeatable motion. The module’s flexible programming and broad PLC compatibility simplify deployment across multidisciplinary manufacturing environments.
The device reduces downtime through reliable, standardized motion control and faster commissioning via parameter-based setup. Energy efficiency and reduced motor wear translate into lower operating costs and longer component life. With PLCopen blocks and plug-and-play connectivity, maintenance teams benefit from easier diagnostics, fewer spare parts, and rapid troubleshooting across the automation stack.
