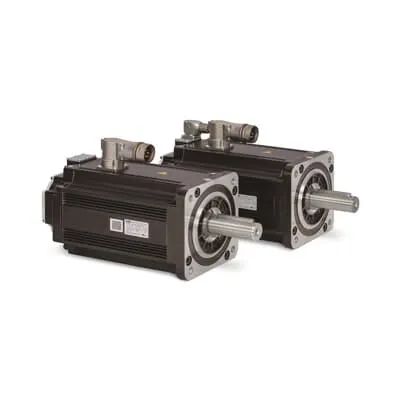

ABB 3ABD00049450 HDS motor - IP65, 0.75 kW, Hiperface
Part Number: 3ABD00049450
Quick Summary
The ABB HDS motor 3ABD00049450 delivers precise servo motion for demanding automation tasks in packaging, robotics, and machine tools. It combines compact form with high dynamic response to reduce cycle times and boost throughput, even under rapid direction changes. Engineered to minimize inertia and heat, it enhances reliability in continuous operation. Key protections and specifications include IP65 enclosure for washdown and dust resistance, 230 VAC three-phase input, and multi-turn Hiperface feedback for accurate position sensing. Easy integration with ABB drives and compatible third-party controllers supports scalable automation architectures, while the motor’s robust design lowers total cost of ownership through predictable performance and simplified maintenance.
Product Information
Extended Description
3ABD00049450 ABB: HDS series motor, 230 VAC, flange size 100 mm, low inertia, 0.75 kW, multi-turn Hiperface, key, no brake, seal
Configuration Only
No
Country of Origin
Finland (FI)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | CSB | CSC
Warranty Return
Product under warranty must be returned
Country of Origin
Finland (FI)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
ABB Type Designation
HDS100-0308AD4KNS
CN8
85044088
Country of Origin
Finland (FI)
Customs Tariff Number
8501520000
Degree of Protection
IP65
Flange Size Range
100 mm
Frame Size
A
Global Commercial Alias
HDS100-0308AD4KNS
Gross Weight
5.17 kg
HS Code
850152-- Electric motors and generators (excluding generating sets).- Other AC motors, multi-phase :-- Of an output exceeding 750 W but not exceeding 75 kW
Input Voltage (Uin)
230 V
Invoice Description
HDS series motor, 230 VAC, flange size 100 mm, low inertia, 0.75 kW, multi-turn Hiperface, key, no brake, seal
Made To Order
No
Maximum Peak Current
15.5 A
Maximum Peak Torque
7.5 N·m
Maximum Speed
4000 r/min
Minimum Order Quantity
1 piece
Motor Power AC-3
0.75 kW
Number of Phases
3
Order Multiple
1 piece
Package Level 1 Depth / Length
360 mm
Package Level 1 Height
187 mm
Package Level 1 Units
1 carton
Package Level 1 Width
165 mm
Product Name
HDS motor
Product Net Depth / Length
253.5 mm
Product Net Height
140 mm
Product Net Weight
4.71 kg
Product Net Width
100 mm
Product Type
HDS_servo_motor
Quote Only
No
Rated Output Current
4.3 A
Rated Speed
3000 r/min
Rated Torque
2.5 N·m
Replaced Product ID (OLD)
3ABD00024309
Rotor Inertia (I)
0.000131 kg/m²
Selling Unit of Measure
piece
Shaft Diameter
19 mm
Shaft Length
40 mm
Short Description
HDS series motor, 230 VAC, flange size 100 mm, low inerita, 0.75 kW, multi-turn Hiperface, key, no brake, seal
Stocked At (Warehouses)
Zhengzhou, China | Beijing, China | Beijing, China
Two Speed Motor
No
UNSPSC
26101109
WEEE B2C / B2B
Business To Business
WEEE Category
Product Not in WEEE Scope
The 0.75 kW, 230 VAC, three-phase power train delivers efficient, high‑torque performance with compact packaging, allowing tight machine layouts and easier heat management. Business impact: improved energy efficiency and reduced enclosure footprint in modern automated lines. Application: packaging machines and assembly cells where space is at a premium and fast response is essential. The low rotor inertia (I = 0.000131 kg/m²) enables rapid acceleration and precise speed control, reducing cycle times and mechanical wear in pick-and-place tasks, robotics, and CNC tooling. The 100 mm flange and 19 mm shaft diameter provide straightforward mounting with a robust shaft connection and a 40 mm shaft length for flexible coupling options. IP65 protection supports washdown environments and dusty production floors, minimizing downtime. The multi-turn Hiperface encoder delivers high-resolution feedback for superior position accuracy, enhancing repeatability in repetitive tasks and complex motion profiles. The motor weighs 4.71 kg net and offers a peak current of 15.5 A, helping drive strong torque during start-up and rapid load changes. With no brake and a standard key on the shaft, installation is simpler and maintenance costs are reduced. All of these attributes align with long-term cost-of-ownership goals, particularly in high‑throughput packaging, robotics, and automated tooling scenarios. Compatibility with ABB drives and third-party controllers enables smooth integration into existing control architectures, while the 230 V input and 3‑phase design support common industrial electrical infrastructure, reducing wiring complexity and commissioning time.
Get a Quick Quote for a ABB 3ABD00049450
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049450?
Enquire Now
FAQs
The motor uses a 100 mm flange (Frame Size A) with a 19 mm shaft and a 40 mm shaft length, designed for easy mounting and coupling to compatible drives and mechanical systems. The shaft includes a key for secure, backlash‑free transmission.
It operates on 230 V, three‑phase input, with a rated power of 0.75 kW, rated speed 3000 r/min, and rated torque 2.5 N·m. Peak current is 15.5 A, and the drive is compatible with multi-turn Hiperface feedback for precise positioning.
Yes. The HDS motor carries an IP65 protection rating, offering robust dust and water ingress protection ideal for washdown zones and challenging manufacturing floors.
According to the supplier data, stock is available in multiple warehouses with a lead time of 0 days, enabling rapid fulfillment and minimal project delays.
Its low rotor inertia, no brake design, and integrated Hiperface encoder deliver fast dynamic response and high position accuracy with reduced mechanical wear. Combined with easy installation and broad drive compatibility, this reduces downtime and maintenance costs while improving throughput.
