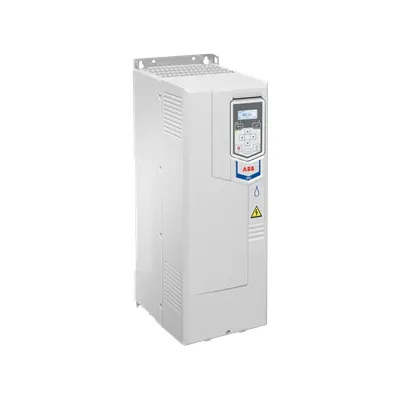

ABB ACQ531-01 Drive - IP20 Enclosure, 30 kW Pump Control
Part Number: 3ABD00049830
Quick Summary
The ABB ACQ531-01 Drive is a compact, wall-mounted variable speed drive for pump control in water and wastewater systems. Many installations struggle with fluctuating flow, energy waste, and complex tuning, which this drive simplifies through built-in pump applications and intuitive settings. It carries CE conformity and a robust IP20 enclosure, delivering European compliance and safe indoor mounting. Built-in energy calculator supports measurable energy savings, while optional accessories like Hand-Off-Auto control panels and Drive Composer streamline commissioning and ongoing optimization.
Product Information
Extended Description
3ABD00049830 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature: The drive is compact and wall-mounted with an IP20 enclosure. Business impact: It saves valuable floor space and simplifies installation in space-constrained pump rooms. Application: Suitable for water and wastewater pumping stations and retrofit projects where a wall-mounted VFD is preferred. Paragraph adds more detail: Feature: Built-in energy calculator. Business impact: Quantifies energy savings and supports ROI tracking for operators. Application: Useful for utilities and treatment facilities aiming to reduce operating costs. Paragraph continues: Feature: Optional Hand-Off-Auto panel, Drive Composer PC tool compatibility, and Bluetooth control panel option. Business impact: Accelerates commissioning, enhances remote diagnostics, and provides flexible operator control. Application: New installations and upgrades across municipal pumping stations and process plants. Paragraph continues: Feature: Integrated pump application functionality. Business impact: Reduces external programming and simplifies pump control logic. Application: Water-wastewater pumping lines requiring reliable, turnkey pump control. Paragraph continues: Feature: Durable design with CE conformity and IP20 protection. Business impact: Ensures regulatory compliance and safe indoor operation with long service life. Application: Suitable for standard indoor plant environments and retrofit projects across utilities.
Get a Quick Quote for a ABB 3ABD00049830
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049830?
Enquire Now
FAQs
Wall-mount installation simplifies pump room layouts but requires vertical clearance for wiring access and proper ventilation. Ensure the IP20 enclosure is kept free of dust and moisture, mount on a sturdy surface, and follow standard wiring practices for 62 A input connections. Use the optional Hand-Off-Auto panel or Bluetooth interface to optimize operator interaction.
Key specs include a 30 kW rated output and an IN current of 62 A, housed in an IP20 enclosure. The drive supports wall mounting and is compatible with pump applications in water and wastewater systems. Optional accessories include Drive Composer PC tool and a Hand-Off-Auto panel for streamlined commissioning and control.
Yes. The drive is specifically designed for pump control in water and wastewater applications, offering reliable wall-mounted installation, energy-saving features, and pump-focused programming. Its IP20 protection and CE compliance support installation in standard indoor plant environments.
The ACQ531-01 Drive carries CE conformity for European compliance and an IP20 enclosure rating for indoor protection. These certifications support regulatory alignment and safe operation within standard utility and treatment facility environments.
The built-in energy calculator quantifies expected energy savings from optimized pump operation, enabling ongoing performance monitoring and ROI calculations. When combined with the drive’s precise pump control, operators can reduce energy costs and justify capital investments for upgrades or retrofits.
