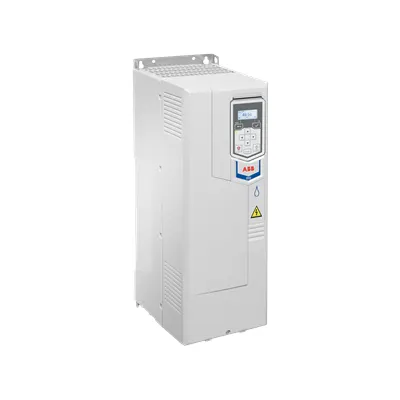

ABB ACQ531-01 Drive - IP20 Wall-Mounted Pump IP20
Part Number: 3ABD00049831
Quick Summary
ACQ531-01 drives deliver energy-efficient pumping control for water and wastewater applications. Engineers often face downtime and energy waste when integrating new pumps with legacy controls; this compact wall-mounted drive simplifies setup and reduces commissioning time. The solution features an IP20 enclosure for indoor use and a robust wall-mount form factor, providing reliable protection in challenging environments. It also offers built-in pump application functionality and an energy calculator to quantify savings, while optional Hand-Off-Auto control, Drive Composer PC tool, and Bluetooth control panel support flexible operation. For teams scaling to municipal or industrial pumping, the combination of compact footprint, plug-and-play components, and real-time efficiency metrics translates to lower total cost of ownership and faster project delivery.
Product Information
Extended Description
3ABD00049831 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature → Business Impact → Application: The ACQ531-01 integrates built-in pump application functionality, which shortens commissioning time and minimizes engineering efforts by reducing the need for external control logic. This translates to faster project delivery and lower startup risk in water and wastewater pumping applications. Application: Municipal pumping stations and wastewater treatment facilities gain a reliable, turnkey solution that aligns with standard infrastructure timelines. Feature → Business Impact → Application: The energy calculator visualizes projected energy savings, enabling operators to quantify ROI and justify automation investments. This supports ongoing operational decisions and long-term cost reduction in pump operations. Application: Utility-grade water systems can demonstrate measurable efficiency gains to stakeholders and regulatory bodies. Feature → Business Impact → Application: IP20 enclosure and wall-mounted design simplify installation in indoor plant spaces, reducing mounting time and permitting requirements. Application: Compact facilities, plant basements, or limited-wall spaces in water utilities benefit from easier integration and safer indoor operation. Feature → Business Impact → Application: Optional Hand-Off-Auto control panel, Drive Composer PC tool, and Bluetooth control panel deliver flexible control and remote diagnostics, cutting on-site visits and enabling remote tuning. Application: Operators in remote sites or multiple pumping stations can maintain consistent performance with minimal site visits. Feature → Business Impact → Application: 37 kW PN and 73 A input rating ensure compatibility with mid-range pumping motors, enabling seamless cascade or standalone pump control. Application: Medium-sized water and industrial pumping solutions align with existing motor inventories, reducing spare-part complexity.
Get a Quick Quote for a ABB 3ABD00049831
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049831?
Enquire Now
FAQs
When deploying the ACQ531-01, mount the drive on a clean, indoor wall with adequate clearance for heat dissipation and cable access. Ensure a stable power supply capable of delivering IN 73A, and follow ABB installation guidelines for wiring the motor, feeds, and optional control panels. Use the IP20-rated enclosure to protect against dust and incidental contact in standard indoor environments.
The built-in energy calculator models real-time motor speed and torque settings to estimate energy consumption reductions. By simulating different pump curves and duty cycles, it provides a quantitative basis for OPEX reductions and ROI calculations. Operators can validate savings before implementation, supporting data-driven decisions in water and wastewater pumping projects.
Yes. The ACQ531-01 is designed for pumping solutions in water and wastewater environments, delivering 37 kW of power with a 73 A input rating. Its compact, wall-mounted form factor and pump-application functionality streamline integration into pumping stations, treatment facilities, and municipal infrastructure while maintaining reliable operation.
Drive Composer provides PC-based configuration and diagnostics, simplifying commissioning and ongoing tuning. The AQQ531-01 supports optional Hand-Off-Auto control and Bluetooth-enabled panels for remote operation. Regular firmware updates via ABB tools help maintain compatibility with emerging control features. Ensure proper protective grounding and periodic inspection of cabling to preserve reliability.
ROI depends on the duty cycle, pump load variability, and energy prices, but users typically observe measurable energy reductions from optimized pump speed control. By leveraging the energy calculator, installers can forecast savings, justify capital expenditure, and track payback periods, especially in continuous-operation pumping stations and municipal water systems.
