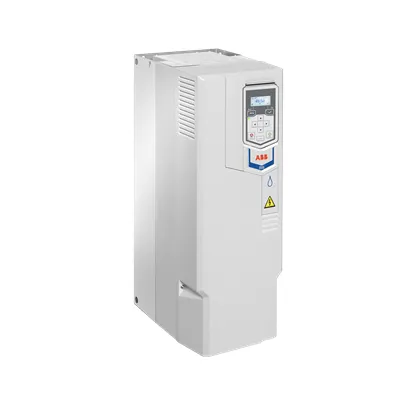

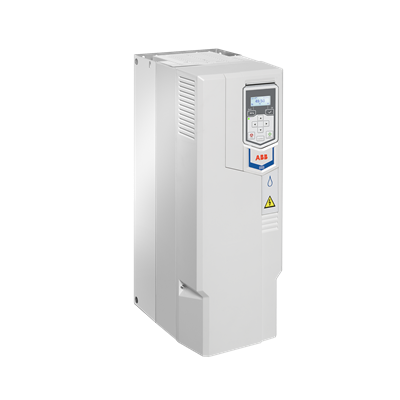

ABB ACQ531-01-106A-4+J400 Drives - IP20 Enclosure
Part Number: 3ABD00049833
Quick Summary
ABB ACQ531-01-106A-4+J400 drives deliver precise pump control for water and wastewater applications. This compact, wall-mounted VFD optimizes flow while reducing energy waste, making it ideal for municipal and industrial pumping. The design emphasizes reliability in harsh environments, with an IP20 enclosure and practical options such as Hand-Off-Auto control, Drive Composer PC tool, and Bluetooth connectivity. Built-in energy calculation visualizes savings in real time, helping you justify investments and optimize ongoing operating costs. For engineers and procurement teams, the ACQ531-01 delivers a straightforward integration path with standard motor protection, scalable options, and a predictable total cost of ownership across multiple pump SKUs.
Product Information
Extended Description
3ABD00049833 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature → Business Impact → Application: The ACQ531-01-106A-4+J400 provides robust pump-specific features and compact, wall-mounted installation, enabling you to deploy in constrained plant spaces while delivering reliable flow control. This translates to measurable energy savings and reduced footprint in wastewater treatment facilities where space and efficiency matter. Feature → Business Impact → Application: Built-in energy calculator guides selection and tuning to achieve optimum efficiency, lowering operating costs in long-running municipal pumping systems and industrial process lines. Feature → Business Impact → Application: Optional Hand-Off-Auto control panel and Bluetooth connectivity streamline commissioning and remote oversight, delivering faster startup, reduced maintenance visits, and safer, hands-free operations on water supply pumps. Feature → Business Impact → Application: Drive Composer PC tool enables precise configuration and diagnostic insight, supporting faster integration with existing SCADA and PLC environments, while meeting compliance requirements for pump protection and parameter logging. Feature → Business Impact → Application: IP20 enclosure and wall-mount design improve protection and ease of installation on plant walls, lowering installation cost and enabling rapid retrofits in refurbished facilities. Feature → Business Impact → Application: Energy-efficient variable speed operation minimizes mechanical wear and reduces peak demand charges, delivering a compelling ROI for municipal water utilities and industrial process pumps.
Get a Quick Quote for a ABB 3ABD00049833
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049833?
Enquire Now
FAQs
Yes. The wall-mounted IP20 enclosure and compact footprint make it ideal for retrofits on existing pump skids. Its standard motor protection interfaces and Drive Composer PC tool simplify commissioning, while optional Hand-Off-Auto control panels enable seamless integration with legacy control schemes and SCADA interfaces, reducing downtime during replacement projects.
The drive provides 55 kW output with a nominal input current of 106 A, enabling precise speed control for pump loads. This combination supports smooth motor acceleration, reduced mechanical stress, and improved head control in variable-flow pumping, which translates to more consistent process pressure and lower energy consumption in water and wastewater applications.
The ACQ531-01-106A-4+J400 is tailored for water and wastewater pumping, municipal distribution, and industrial process lines requiring reliable, adjustable pump speed. Its energy calculator and optional control panels suit applications emphasizing energy efficiency, process stability, and easy remote monitoring, making it a strong fit for utilities and plant operators seeking cost-effective pumping solutions.
The unit is designed with an IP20 enclosure for indoor, wall-mounted installations and is aligned with market expectations for CE-like compliance in many regions. When integrating into regulated environments, verify CE marking and SIL-system compatibility with your safety modules and local regulatory requirements, and plan for standard electrical protections and motor protection interlocks.
Deployment benefits include faster commissioning via Drive Composer, optional Bluetooth for field diagnostics, and hands-off control that reduces operator intervention. The built-in energy calculator supports ongoing optimization, while remote monitoring capabilities and standard SCADA compatibility can lower maintenance visits, shorten mean time to repair, and enhance overall ROI for municipal and industrial pumping projects.
