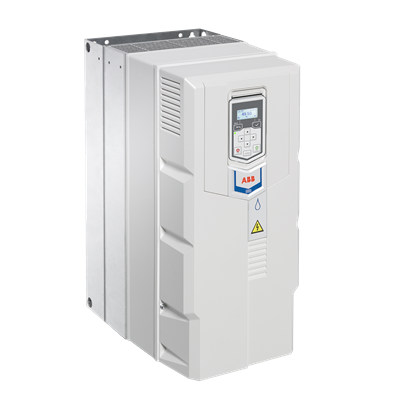

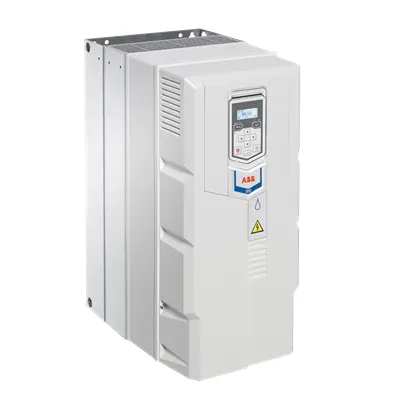

ABB 3ABD00049834 ACQ531-01 drives with 75kW - IP20
Part Number: 3ABD00049834
Quick Summary
ACQ531-01 drives deliver efficient pump control for water and wastewater applications. Many pump systems suffer energy waste and costly maintenance without optimized control. CE compliance ensures conformity with safety and environmental standards, while IP20 enclosure protection helps guard electronics in wall-mounted installations. Optional Hand-Off-Auto panels, Drive Composer PC tool, and Bluetooth control panels extend usability for operators. For procurement and maintenance teams, this ABB solution translates to lower operating costs, predictable performance, and faster deployment in municipal and industrial pumping projects. This combination supports energy management initiatives, reduces peak demand, and aligns with asset management strategies. For teams evaluating VFDs, ABB's ACQ531-01 family offers scalable features from basic to advanced control.
Product Information
Extended Description
3ABD00049834 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature: Built-in pump application functionality. Business Impact: Streamlines pump control, reduces commissioning time, and improves accuracy of flow regulation in variable load conditions. Application: Water supply and wastewater pumping where consistent head pressure is critical. The ABB drive adjusts to hydraulic variations, delivering measurable energy savings. Feature: Integrated energy calculator. Business Impact: Enables on-device calculation of potential savings, supporting budgeting and ROI demonstrations. Application: Municipal pumping projects and industrial process ferries where energy management programs are in play. Feature: IP20 wall-mounted enclosure. Business Impact: Simplifies installation in standard electrical rooms, saving space and reducing protection risk. Application: Indoor plant floors and service corridors with easy access for maintenance. Feature: Optional Hand-Off-Auto panel, Drive Composer PC tool, Bluetooth control panel. Business Impact: Improves operator efficiency, speeds commissioning, and enables remote monitoring and field service. Application: Routine start-stop sequences at remote facilities, with centralized asset management. Feature: 75 kW rating and 145 A input suitability. Business Impact: Supports high-demand pumping cycles with reliable torque and performance, lowering wear and energy spikes. Application: Large municipal or industrial pump stations requiring robust, scalable drive solutions.
Get a Quick Quote for a ABB 3ABD00049834
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049834?
Enquire Now
FAQs
Install the ACQ531-01 drive on a clean, dry wall within reach of service panels. Allow clear access for wiring and routine maintenance, and mount with proper clearance for cooling. Use the optional Hand-Off-Auto panel for local control and Drive Composer PC tool during commissioning to streamline parameter setting and fault diagnostics.
The built-in pump application feature optimizes start/stop curves, acceleration profiles, and anti-cavitation routines for pumping stations, reducing hydraulic losses and noise while maintaining desired flow. This reduces energy consumption and extends motor life. In wastewater plants, the drive adapts to variable loads, enhancing reliability during peak demand and ensuring compliant operation with municipal specs.
Yes, the ACQ531-01 drive carries CE compliance for safety and environmental requirements, and ships with an IP20 enclosure as standard. This combination supports reliable operation in typical indoor plant environments and provides protection against contact with live parts and intrusion by solid objects, reducing maintenance risk and improving uptime. CE markings also support audits and supplier compliance.
ROI comes from reduced energy use, lower wear due to optimized motor control, and maintenance efficiency from built-in diagnostics. In municipal pumps, 75 kW units can trim peak energy consumption, shorten downtime, and extend service intervals. When combined with energy calculations, operators can quantify payback periods and justify upgrades within asset management plans.
Configuration and monitoring are supported by Drive Composer PC tool and optional Bluetooth interface, plus local Hand-Off-Auto control. The PC tool simplifies parameter setup, fault diagnostics, and commissioning data, while Bluetooth connectivity enables mobile access in the field. Regular monitoring and alerting help maintenance teams plan replacements, track energy performance, and ensure ongoing regulatory compliance.
