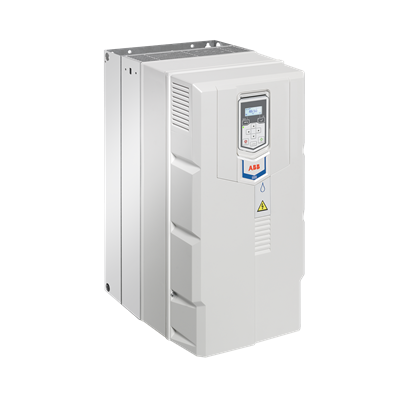

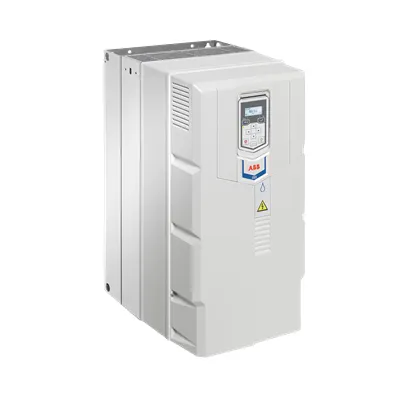

ABB ACQ531-01 Drives - IP20 Enclosure
Part Number: 3ABD00049836
Quick Summary
ACQ531-01 drives deliver precise pump speed control for water and wastewater applications. Engineers and operators often face energy waste and fluctuating flow that drive up operating costs and complicate compliance. IP20 enclosure protection and wall‑mount design support safe, compact integration, while CE‑style compliance considerations and robust integration options help ensure smooth deployments. The built‑in energy calculator quantifies savings, and optional accessories like Drive Composer and Bluetooth control panel simplify commissioning across sites. By delivering energy efficiency, easier configuration, and reliable pump control, these ABB drives translate into tangible business value for water and wastewater facilities.
Product Information
Extended Description
3ABD00049836 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
The wall‑mounted, compact design reduces footprint and simplifies installation in constrained pump stations, delivering a cleaner, safer control space and faster project turnarounds for water treatment plants. This translates to lower site labor costs and improved maintenance access, with a measurable impact on total cost of ownership. The ACQ531‑01’s pump‑oriented functionality ensures appropriate pump behavior out of the box, minimizing over‑speed events and cavitation risks while enabling smoother process control and longer pump life. Business impact: reduced energy use and maintenance overhead, improved system reliability, and easier regulatory reporting. The built‑in energy calculator provides real‑time visibility into savings potential, supporting energy management programs and enabling data‑driven optimization for utility‑scale facilities. Application: track and report efficiency gains to stakeholders and regulators. The optional Hand‑Off‑Auto control panel, Drive Composer PC tool, and Bluetooth controller streamline commissioning, diagnostics, and remote tuning, reducing on‑site commissioning time and enabling remote support. Business impact: faster project delivery, lower commissioning costs, and improved operator training. The energy‑aware software features align with long‑term sustainability goals while maintaining pump performance, making compliance with environmental and safety standards more straightforward. Application: retrofit programs or new builds seeking predictable energy reductions. Compatibility with ABB’s Drive Composer enables structured configuration flows, test runs, and save/restore project data, supporting scalable deployment across multiple sites. Business impact: consistent setups across sites and accelerated multi‑site projects. The IP20 standard enclosure, along with wall‑mount stability, supports safe integration in typical electrical rooms and outdoor‑adjacent pump stations, reducing enclosure complexity and associated costs. Application: quick, code‑compliant installations with minimal enclosure upgrades. Industry insight: water and wastewater systems benefit from dedicated pump control features that reduce energy use and improve process stability, especially when combined with energy reporting and remote configuration utilities.
Get a Quick Quote for a ABB 3ABD00049836
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049836?
Enquire Now
FAQs
ACQ531-01 is designed as a compact, wall‑mounted drive with an IP20 enclosure, simplifying mounting in standard electrical rooms and pump stations. When installing, verify proper heat dissipation, secure mounting to a rigid surface, and correct wiring of motor and sensor interfaces. Utilize the Drive Composer for pre‑config and on‑site tuning, and consider optional Hand‑Off‑Auto control for simple operator transitions between manual and automatic modes.
The drive supports up to 110 kW with an input current rating of 206 A, housed in an IP20 enclosure for wall‑mounted installation. It targets pump applications in water and wastewater, offering pump‑specific features, energy monitoring, and compatibility with ABB’s PC tool Drive Composer and optional Bluetooth control for flexible commissioning and operation.
Yes, the ACQ531‑01 is purpose‑built for pump control in water and wastewater facilities. Use the built‑in pump application features to optimize flow and pressure, configure the drive via Drive Composer, and employ the Hand‑Off‑Auto panel for operator handover. The energy calculator helps quantify savings, supporting ongoing optimization and reporting to operators and regulators.
The ACQ531‑01 uses an IP20 enclosure as standard for wall‑mounted installations, supporting safe operation in typical electrical rooms. While IP ratings are explicit in the data, consult the official ABB datasheet for exact CE compliance and any SIL safety integrations required for your specific use case and regional requirements.
The drive reduces energy consumption through optimized pump control, aided by the built‑in energy calculator that quantifies gains for energy management reporting. Commissioning with Drive Composer and optional Bluetooth control panel speeds deployment, lowers on‑site labor, and simplifies maintenance by providing centralized configuration, diagnostics, and remote troubleshooting capabilities.
