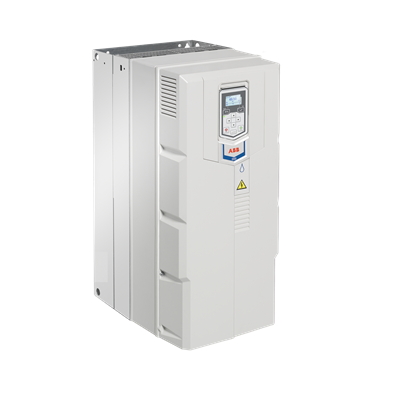

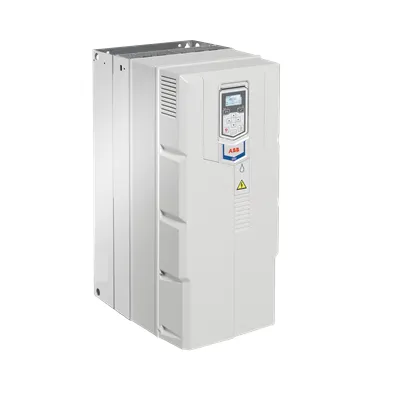

ABB 3ABD00049837 ACQ531-01 Drives - IP20 Enclosure
Part Number: 3ABD00049837
Quick Summary
ACQ531-01 drives enable energy-efficient pump control for water and wastewater systems. Operators face rising energy costs and time-consuming commissioning when tuning pump curves and protecting equipment. The drives feature an IP20 enclosure for safe wall mounting and are compatible with ABB's optional Hand-Off-Auto control panel, Drive Composer PC tool, and Bluetooth control panel to simplify setup and maintenance. With the built-in energy calculator and pump-application features, plant engineers can quantify savings, reduce downtime, and improve regulatory compliance, delivering measurable value across operations.
Product Information
Extended Description
3ABD00049837 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature → Business Impact → Application: The ACQ531-01 includes built-in pump application functionality that reduces engineering time by providing ready-to-use pump control logic, enabling quicker commissioning and consistent performance across pumps in water/wastewater networks. This translates to lower installation costs and predictable energy use, especially in municipal pumping stations where reliability matters. Feature → Business Impact → Application: An energy calculator embedded in the drive quantifies energy savings from optimized flow and speed, empowering operators to demonstrate ROI and justify maintenance budgets while controlling lifecycle costs. Feature → Business Impact → Application: The compact wall-mounted IP20 enclosure saves valuable plant space and simplifies retrofits in control rooms or existing cabinets, delivering easier service access and faster deployment in tight environments. Feature → Business Impact → Application: Optional Hand-Off-Auto control panel, Drive Composer PC tool, and Bluetooth control panel enable intuitive commissioning, remote diagnostics, and flexible operation modes, reducing on-site visits and improving uptime in critical pumping applications. Feature → Business Impact → Application: Compatibility with ABB’s ecosystem and plug-in tools supports scalable deployment, standardized configuration, and smoother integration with other drives and field devices in water and wastewater facilities.
Get a Quick Quote for a ABB 3ABD00049837
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049837?
Enquire Now
FAQs
The ACQ531-01 is designed as a compact wall-mounted drive with an IP20 enclosure, ideal for control rooms or cabinet retrofits. Installation typically involves secure wall mounting, proper cable routing to power and motor terminals, and wiring for optional accessories such as the HO-A panel or Bluetooth interface. Proper enclosure clearance and ventilation are recommended to maintain cooling performance and reliability.
The drive includes built-in pump application features tailored to pump curves, flow control, and protection logic, which simplifies commissioning and operation in water and wastewater facilities. Its 132 kW rating and 246 A current capability support medium- to large-capacity pumps, while the energy calculator helps quantify savings from optimized speed and torque profiles over time.
Yes. The ACQ531-01 supports optional accessories such as the Hand-Off-Auto control panel for local/manual operation and the Drive Composer PC tool for advanced commissioning, parameter tuning, and monitoring. The Bluetooth control panel option provides additional flexibility for remote configuration, diagnostics, and troubleshooting without on-site visits.
Drive Composer streamlines parameter setup, enables precise pump parameterization, and offers guided commissioning workflows. It reduces engineering time, improves consistency across multiple drives in a plant, and supports remote diagnostics and firmware updates. This results in faster startup, easier troubleshooting, and lower total cost of ownership for pump installations.
The ACQ531-01 comes in an IP20-rated enclosure suitable for indoor wall-mounting in controlled environments. This level of protection guards against solid objects larger than 12.5 mm and provides basic protection against accidental contact. For outdoor or harsher environments, additional enclosure protection or alternative models may be required, and integration with ABB components should follow standard system-design practices.
