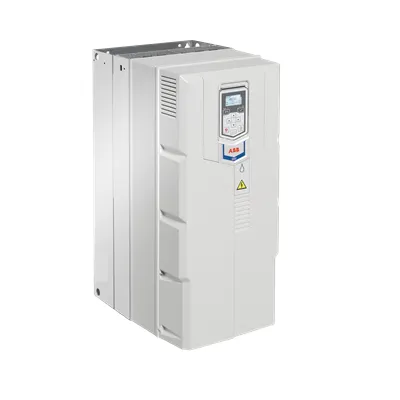

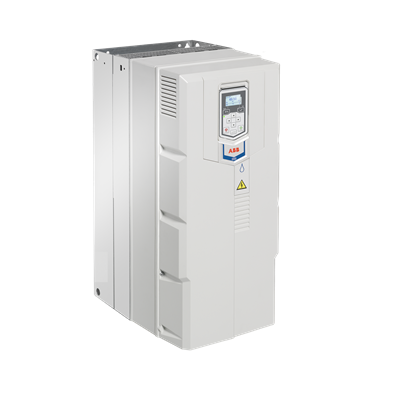

ABB 3ABD00049838 ACQ531-01 Drives - IP20 Enclosure
Part Number: 3ABD00049838
Quick Summary
ACQ531-01 drives are compact wall-mounted variable frequency drives designed for water and wastewater pumping applications. Operators often struggle with energy waste, variable flow, and downtime during commissioning. This drive family features IP20 enclosure protection for reliable installation and built-in pump-application functionality to simplify setup. With optional Hand-Off-Auto control, the Drive Composer PC tool, and a Bluetooth control panel, operators gain flexible, field-ready control and faster diagnostics. The included energy calculator visualizes savings, supporting energy-management programs and regulatory reporting, while maintaining compatibility with ABB’s broader automation ecosystem for future-proofed investments. In practice, customers report faster commissioning, lower training costs, and measurable throughput improvements.
Product Information
Extended Description
3ABD00049838 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Built-in pump-application functionality accelerates configuration and optimizes control loops for centrifugal pumps. The business impact is faster startup, reduced tuning time, and more stable flow under varying load conditions. In municipal and industrial pumping systems, this translates to fewer service interruptions and longer asset life. The energy calculator quantifies potential savings in real time, supporting energy-management programs and regulatory reporting. This delivers lower operating costs, improved KPIs, and a clear ROI during plant retrofits or new installations, especially for municipal water and wastewater projects. Optional Hand-Off-Auto control, Drive Composer PC tool, and Bluetooth control panel offer flexible commissioning and remote diagnostics. The result is faster fault isolation, reduced on-site visits, and reliable operation across shifts. The IP20 wall-mount design saves space and simplifies maintenance while staying compatible with ABB’s automation ecosystem. These drives are well-suited for field deployments in water-treatment and industrial pumping.
Get a Quick Quote for a ABB 3ABD00049838
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049838?
Enquire Now
FAQs
The ACQ531-01 is designed as a compact, wall-mounted VFD within ABB’s drives ecosystem and supports pump control features suitable for water and wastewater applications. It integrates with optional Hand-Off-Auto, Drive Composer PC tool, and a Bluetooth panel for flexible commissioning, diagnostics, and scalable control across municipal and industrial pumping systems.
Key specs include a 160 kW power rating and 293 A input current (PN: 160 kW, IN: 293 A), housed in a standard IP20 enclosure for wall-mounted installation. It features built-in pump application capabilities, with optional Hand-Off-Auto control, Drive Composer PC tool, and Bluetooth control for flexible operation and diagnostics.
Yes. The ACQ531-01 is specifically designed for water and wastewater pumping, offering robust control of pump speed, energy-efficient operation, and built-in features that align with the demands of municipal and industrial pumping networks, including energy calculation for ongoing efficiency improvements.
The provided data specifies an IP20 enclosure, indicating standard protection for on-wall installations. It does not list CE, SIL, or other certifications for this model; please confirm exact certification status with ABB or your procurement team to ensure alignment with regional regulatory requirements.
ROI is driven by energy savings quantified by the built-in energy calculator, reduced commissioning time, and lower maintenance visits due to compact design and diagnostics tools. Optional features like Hand-Off-Auto and Drive Composer PC tool enable faster fault diagnosis and smoother maintenance planning in field deployments.
