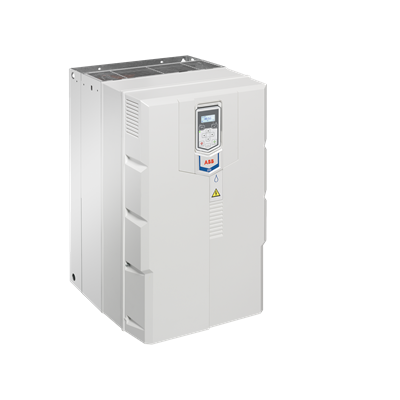

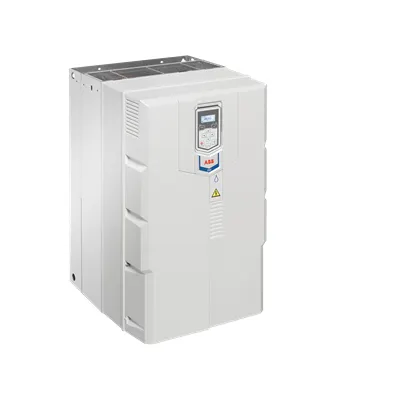

ABB ACQ531-01-430A-4+J400 Drive - IP20 Enclosure
Part Number: 3ABD00049840
Quick Summary
ABB ACQ531-01-430A-4+J400 drive delivers precise pump control for water and wastewater applications, enabling efficient and reliable flow management. Engineers often wrestle with energy waste, mismatched duty cycles, and lengthy commissioning when upgrading pump stations. This model features an IP20 enclosure and alignment with common industrial standards to support safe operation and regulatory compliance. By leveraging built-in energy calculations, simple commissioning tools, and optional Hand-Off-Auto and Bluetooth panels, it delivers measurable business value through lower energy use, reduced maintenance effort, and faster project ROI. For operators seeking dependable, scalable pump drive performance, this solution combines robust hardware with intuitive software support.
Product Information
Extended Description
3ABD00049840 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature: Built-in pump application functionality and energy calculator. Benefit: Optimizes energy use and reduces operating costs by tailoring drive performance to pump duty cycles. Application: Water and wastewater pumping where energy efficiency directly lowers utility bills and carbon footprint. Feature: IP20 enclosure and compact wall-mount design. Benefit: Space-efficient installation with enhanced accessibility for service and maintenance. Application: On-wall pump rooms and cramped mechanical spaces where footprint matters. Feature: Optional Hand-Off-Auto control panel and Drive Composer PC tool. Benefit: Speeds up commissioning, simplifies parameter tuning, and improves ongoing diagnostics. Application: Commissioning new systems and upgrading existing plants without lengthy downtime. Feature: Compatibility with Bluetooth control panel. Benefit: Enables remote configuration and troubleshooting, reducing site visits. Application: Remote monitoring and quick adjustments in distributed pump networks. Feature: Robust construction for water/wastewater environments. Benefit: Improved reliability and longer service life, lowering replacement costs. Application: Heavy-duty pumping installations with challenging ingress and thermal conditions.
Get a Quick Quote for a ABB 3ABD00049840
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049840?
Enquire Now
FAQs
This drive is designed for on-wall installation with an IP20 enclosure. Begin by selecting a vibration-free, clean mounting surface with adequate clearance for cooling and service access. Mount the unit securely, connect power and motor cables per the user manual, and configure the Drive Composer parameters. Use the optional Hand-Off-Auto panel for commissioning and safety interlocks, then verify motor protection, wiring integrity, and energy calculator readouts during initial run. Follow ABB’s field-setup guidelines for surge protection and enclosure grounding to ensure reliable operation in water/wastewater facilities.
Key specifications include a nominal power of 250 kW (PN) with a rated current of 430 A (IN), delivered in an IP20, wall-mounted enclosure. The model name ACQ531-01-430A-4+J400 identifies the standard drive with an optional Hand-Off-Auto control panel and Bluetooth interface. Primary features also include a built‑in energy calculator for efficiency optimization and compatibility with Drive Composer for configuration and monitoring.
Yes. The ACQ531-01-430A-4+J400 is purpose-built for pumping in water and wastewater contexts, offering precise flow control, energy efficiency, and compact on-wall installation. Its robust IP20 enclosure supports typical plant room environments, while the built-in energy calculator helps quantify savings. Optional control panels and software tools streamline commissioning and maintenance, reducing downtime in critical pumping stations.
The drive features an IP20 enclosure suitable for indoor, dry environments. ABB drives in this family are designed to align with common industrial safety and performance expectations, including regulatory-friendly integration and CE-aligned practices. When selecting, verify project-specific requirements such as local CE or SIL safety expectations and ensure proper installation with grounded enclosures and compliant control wiring to maintain certifications.
The ROI is driven by energy savings from precise pump speed control, reduced downtime through easier commissioning with Drive Composer and optional Hand-Off-Auto, and lower maintenance costs from a robust IP20-rated enclosure. The built-in energy calculator provides actionable metrics to optimize duty cycles, while the on-wall design simplifies service access. Over the asset life, these factors contribute to lower total cost of ownership and faster project payback in water and wastewater installations.
