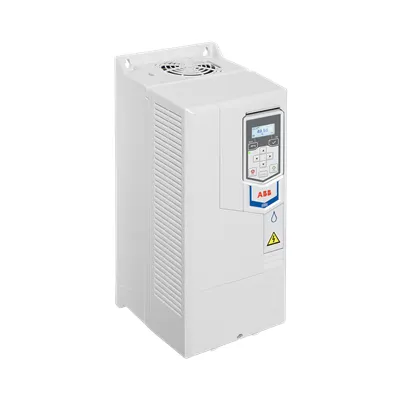

ABB ACQ531-01 drive 3ABD00049851 - IP20 Enclosure
Part Number: 3ABD00049851
Quick Summary
ABB ACQ531-01 drive is a compact VFD for pump control in water and wastewater applications. Operators often wrestle with energy waste, lengthy tuning, and inconsistent pump behavior across shifts. With an IP20 enclosure and built‑in energy calculator, it supports reliable operation while delivering measurable savings. Optional Hand-Off-Auto control panels, Drive Composer PC tool, and Bluetooth panels tailor the drive to your installation. Together, the compact footprint and pump-focused features reduce setup time and enable scalable control strategies.
Product Information
Extended Description
3ABD00049851 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature: Integrated pump application function provides ready-to-run control logic for common pump setups. Business Impact: Accelerates commissioning, reduces risk of misconfiguration, and shortens time-to-value for new installations. Application: Municipal water networks, wastewater lift stations, and industrial process pumping benefit from plug‑and‑play operation without extensive programming. Feature: Real-time energy calculator and efficiency features. Business Impact: Enables verification of energy savings, supports cost controls, and strengthens compliance with energy-management initiatives. Application: Utilities and process industries seeking measurable operating cost reductions over the asset lifecycle. Feature: Optional Hand-Off-Auto control panel, Bluetooth control panel, and Drive Composer PC tool. Business Impact: Improves on-site and remote configurability, reduces commissioning time, and speeds troubleshooting. Application: Field installations in facilities with limited access or multiple operators. Feature: IP20 enclosure and wall-mountable design. Business Impact: Simplifies installation, protects electronics in demanding environments, and minimizes space requirements. Application: Plant floors, control cabinets, and retrofit projects where space is at a premium. Feature: Compatibility with ABB drive ecosystem and motor families. Business Impact: Smooth integration with existing drives, standardizes maintenance, and extends asset life. Application: Water and wastewater plants implementing scalable, multi-drive pumping solutions.
Get a Quick Quote for a ABB 3ABD00049851
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049851?
Enquire Now
FAQs
Install the ACQ531-01 as a wall-mounted VFD with the IP20 enclosure for protection. Connect supply and motor leads per the ABB installation guide, mount within reach of control panels, and use the Drive Composer PC tool for initial parameterization. Verify pump presets align with your system curves and perform a step-wise ramp test to prevent water hammer.
Key specs include a power rating of 18.5 kW and a continuous current of 39 A. The unit ships with an IP20 enclosure as standard and is designed for wall mounting in pump applications, enabling compact installation in restricted spaces.
Yes. The drive supports an optional Hand-Off-Auto control panel, and can be managed via the Drive Composer PC tool or an optional Bluetooth control panel, enabling flexible local and remote operation and faster commissioning.
The energy calculator visualizes potential energy savings in real time, helping operators optimize setpoints, scheduling, and duty cycles. This supports cost reduction, regulatory reporting, and energy auditing for large pumping systems.
Choose a location with adequate ventilation and easy access for maintenance, ensure cable routing minimizes electrical noise, and leverage Drive Composer for pre‑configurations. The compact IP20 design and optional HOA/bluetooth options shorten commissioning, reduce labor costs, and support scalable, long-term pumping strategies.
