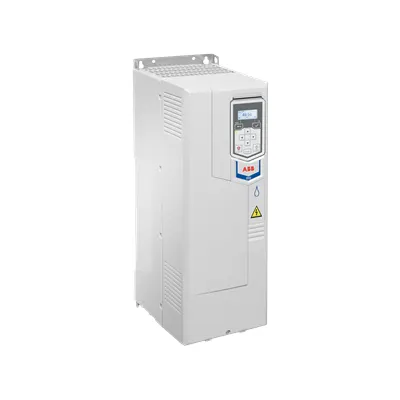

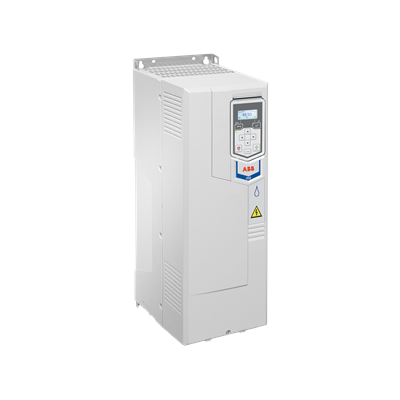

ABB ACQ531-01-062A-4+0J404 Pump Drive - IP20
Part Number: 3ABD00049853
Quick Summary
The ACQ531-01 drive is a compact wall-mounted frequency converter optimized for pump applications in water and wastewater. ABB ACQ531-01 drives deliver precise pump control for water and wastewater systems. Many facilities struggle with energy waste and variable flow that disrupt operations and raise operating costs. This compact wall-mounted drive uses an IP20 enclosure with CE-compatible configurations to simplify installation and meet regulatory checks. The unit includes built-in pump-application features and optional Hand-Off-Auto control, plus the Drive Composer PC tool and Bluetooth control panel for flexible commissioning. The built-in energy calculator visualizes energy savings, helping operators validate benefits and justify capital expenditures. By combining robust control with easy integration, this drive helps water utilities and industrial pumps meet performance targets while reducing maintenance overhead and operating expenses.
Product Information
Extended Description
3ABD00049853 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature integrated pump-application features → Business impact tailored pump control reduces commissioning time and troubleshooting effort → Application suitable for water and wastewater pumping stations. The IP20 enclosure standard → Provides reliable protection in typical indoor plant environments, enabling straightforward wall-mount installation and space savings → Application ideal for compact control panels and retrofits in existing facilities. Built-in energy calculator → Quantifies potential energy savings and supports energy audits, driving a faster ROI and demonstrating compliance with efficiency targets → Application across new builds or retrofits in water treatment and pumping stations. Optional Hand-Off-Auto control panel, Drive Composer PC tool, and Bluetooth control panel → Improves operator usability, accelerates start-ups, and enables remote diagnostics or discreet maintenance visits → Application where field service efficiency and reduced on-site time are critical. Power/Current specs PN 30kW and IN 62A → Aligns with standard plant electricals, simplifying electrical design and panel integration → Application for medium-sized pumping projects with predictable duty cycles. These capabilities address common objections about integration complexity and long commissioning times, delivering a streamlined path from installation to reliable, efficient pump operation in challenging water and wastewater environments.
Get a Quick Quote for a ABB 3ABD00049853
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049853?
Enquire Now
FAQs
Install as a wall-mounted drive with IP20 protection for indoor pump rooms or control cabinets. Verify supply is within 62 A input and provide proper shielded cabling to the motor. Use the optional Hand-Off-Auto panel or Drive Composer PC tool for commissioning, and consider Bluetooth control for remote diagnostics. The Drive fits standard ABB motor control architectures and can be integrated with existing PLCs.
It includes pump-application features built into the drive, such as tailored acceleration/deceleration profiles and a built-in energy calculator. These enable optimized pump duty cycles, reduced electrical noise, and improved motor efficiency. The 30 kW, 62 A power rating supports medium-size pumps typical in water treatment and wastewater facilities.
Yes. The ACQ531-01 is designed for water and wastewater pumping applications, offering compact wall-mount installation, IP20 protection, and pump-specific features that simplify control of submersible or dry-pit pumps. Its energy calculator helps justify upgrades by showing potential savings, while optional remote control capabilities ease maintenance and monitoring in challenging environments.
The model ships with an IP20 enclosure as standard and supports CE-compatible configurations, aligning with common electrical safety and performance requirements for industrial drives in water applications. Always verify local regulatory needs and confirm final CE/UL certification status with ABB or the local distributor before deployment.
Expect energy savings through optimized pump control and reduced wear on motors, which lowers maintenance costs and extends equipment life. The Drive Composer PC tool and optional Bluetooth panel streamline commissioning and remote diagnostics, reducing field service time. The built-in energy calculator provides a straightforward basis for ROI calculations during project approvals.
