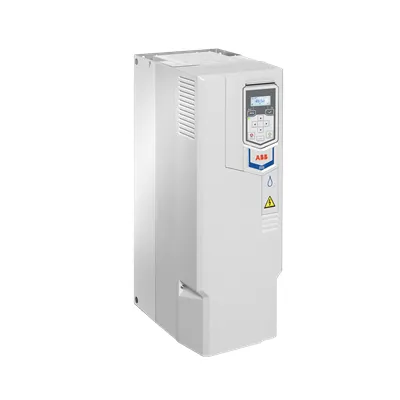

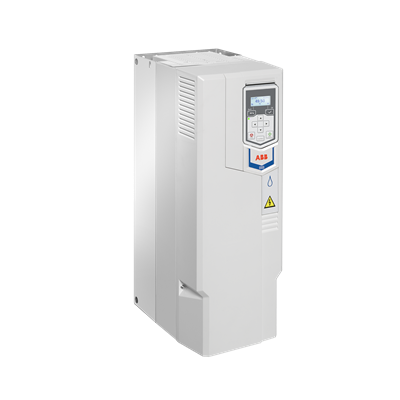

ABB ACQ531-01 3ABD00049856 - IP20 Wall-Mounted Drive
Part Number: 3ABD00049856
Quick Summary
ABB ACQ531-01 drives deliver precise motor control for pumping applications in water and wastewater systems. Operators face energy waste and variable flow; this compact, wall-mounted drive addresses those challenges with pump-application features and an integrated energy calculator. The solution comes in a standard IP20 enclosure and supports CE compliance, with optional Hand-Off-Auto control panels, Drive Composer PC tool, and Bluetooth control. By visualizing energy savings and easing commissioning, it delivers measurable business value for engineers, procurement teams, and maintenance staff in modern pumping stations.
Product Information
Extended Description
3ABD00049856 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature: Built-in pump-application logic and an energy calculator streamline pump operation. This capability translates into measurable energy savings and smoother flow control by aligning motor speed with actual demand, reducing throttling and wasted head pressure. Application: Water and wastewater pumping stations benefit from precise speed control, extended pump life, and lower operating costs as demand fluctuates throughout the day. Industry insight shows that preconfigured pump features shorten commissioning time and improve maintenance predictability. Feature: Compact IP20, wall-mounted enclosure provides a space-efficient footprint. Business impact: Easier installation in existing plant rooms and retrofit projects, with reduced cabinet clutter and simpler cable routing. Application: Municipal and industrial facilities gain a tidy, accessible drive installation that minimizes maintenance risk and improves compliance with plant layout standards. This design also supports fast replacement during upgrades, reducing downtime. Feature: Optional Hand-Off-Auto control panel offers familiar local operation. Impact: Clarifies handover between manual and automatic modes, reducing operator error and enabling rapid response to process changes. Application: Critical pumping loops and remote sites benefit from intuitive control without sacrificing integration with ABB drive logic and PLC interfaces. Feature: Drive Composer PC tool and optional Bluetooth control panel streamline configuration and commissioning. Impact: Accelerates parameterization, validation, and firmware updates, cutting project timelines and startup costs. Application: System integrators and maintenance teams gain easier diagnostics and smoother handover to operations in water treatment and wastewater facilities. Feature: 55 kW rating with IN: 106 A supports robust motor performance and reliable torque for typical pump loads. Impact: Delivers stable operation for medium to high-flow pumps while maintaining energy efficiency and grid-friendly behavior. Application: Mid-sized water infrastructure pumps, irrigation systems, and industrial fluid handling where consistent performance matters between maintenance windows.
Get a Quick Quote for a ABB 3ABD00049856
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049856?
Enquire Now
FAQs
This drive is designed for wall-mounted installation with a standard IP20 enclosure. Use compatible mounting hardware and route cables for pump motor connections and control signals. Leverage the optional Hand-Off-Auto panel and Drive Composer PC tool to simplify commissioning, with Bluetooth panel as an optional wireless interface for remote adjustments.
The drive provides precise speed control and an integrated energy calculator to visualize savings from optimized pump operation. With a 55 kW rating and IN: 106 A, it supports medium to high-flow pump applications while reducing energy consumption and extending pump life through smoother torque and reduced mechanical stress.
Yes. It supports standard ABB integration through the Drive Composer PC tool and common control interfaces. The optional Hand-Off-Auto panel enables local control, while PLC/SCADA systems can interface with the drive for seamless automation and monitoring in water and wastewater facilities.
The drive is provided with an IP20 enclosure and is designed to align with common electrical safety expectations. It also supports CE compliance for European use, ensuring adherence to essential safety, health, and environmental requirements in typical plant environments.
Expect lower operating costs from energy savings driven by pump-application features and the built-in energy calculator. The compact, easy-to-install design reduces commissioning time, while optional interfaces like Drive Composer and Bluetooth improve diagnostics and maintenance planning, contributing to a shorter payback period and more predictable maintenance cycles.
