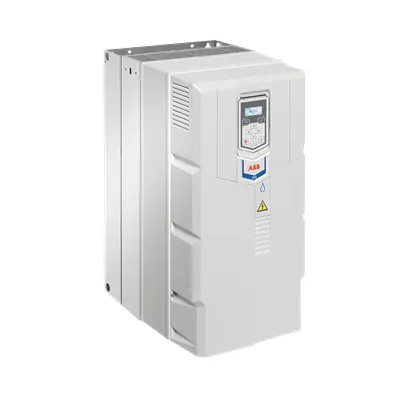

ABB ACQ531-01 Drives - 90kW Wall-Mounted IP20
Part Number: 3ABD00049858
Quick Summary
ABB ACQ531-01 Drives deliver efficient pump speed control for water and wastewater applications. Operators often face wasted energy, variable flow challenges, and lengthy commissioning that slows projects. The system features an IP20 enclosure with rugged wall-mount suitability and compatibility with standard safety and regulatory expectations for municipal and industrial pump rooms. Built-in energy calculator and optional Hand-Off-Auto control panel simplify optimization, while Drive Composer and Bluetooth enable streamlined configuration and remote monitoring. Together, these capabilities translate to lower operating costs, faster deployment, and reliable performance for municipal infrastructure and commercial pumping networks. This approach supports ongoing energy-efficiency targets and simplifies procurement through modular, scalable drive solutions.
Product Information
Extended Description
3ABD00049858 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Built-in pump application functionality tailors ABB ACQ531-01 drives to common pumping tasks, reducing commissioning time and enabling optimized flow control. The business impact is tangible: improved system efficiency, reduced wear on mechanical components, and a clearer path to meeting sustainability targets in municipal and industrial pumps. This is particularly valuable in water and wastewater networks where precise head and flow management directly drives energy savings and service reliability. The energy calculator provides real-time visibility into potential savings, supporting ROI analyses and justifying upgrades to stakeholders. In practice, engineers can demonstrate payback periods while meeting regulatory expectations for energy efficiency and pump performance. The optional Hand-Off-Auto control panel adds operator flexibility without sacrificing automation, enabling safe transitions between manual and automatic modes on demand. Drive Composer PC tool enhances commissioning speed, diagnostics, and version-controlled configurations, while the Bluetooth control panel supports remote monitoring and maintenance in hard-to-reach installations. The wall-mounted IP20 enclosure facilitates compact installations in standard pump rooms, minimizing footprint while preserving protection. Compatibility with 169A input and 90kW output positions the ACQ531-01 as a robust choice for mid-to-high-power pumping tasks, ensuring reliable operation in municipal and industrial facilities. Overall, these features translate to lower lifecycle costs, higher uptime, and a streamlined modernization path for aging pump drives.
Get a Quick Quote for a ABB 3ABD00049858
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049858?
Enquire Now
FAQs
For wall-mount installation, prepare a clean, vibration-free surface with adequate clearance for cooling and cable routing. Secure the IP20 enclosure to a solid wall, install a dedicated mains supply, and connect motor leads to the 169 A input/output terminals. Use the Drive Composer PC tool for initial configuration, then verify motor protection, fault logging, and remote interfaces (Bluetooth-ready panels) before commissioning.
The ACQ531-01 is configured for up to 90 kW pump output with an input current of 169 A. It features a wall-mounted IP20 enclosure and pump-specific software functions. The drive supports standard motor control needs for water and wastewater pumps, including startup/shutdown strategies, energy efficiency features, and diagnostic reporting accessible via Drive Composer and optional remote panels.
Yes, the ACQ531-01 is designed for water and wastewater pumping. It is well-suited for municipal pumping stations, industrial water handling, and any application requiring reliable variable-speed control to optimize head, flow, and energy use. The built-in energy calculator helps quantify savings, while optional panels support operator-friendly control in field environments.
The ACQ531-01 features an IP20 enclosure suitable for indoor wall-mounted installations, with standard safety and regulatory considerations aligned to industrial drives. When used in compliant systems, it supports safe operation, fault diagnostics, and regulatory-ready integration with site controls and monitoring equipment.
ROI arises from energy savings achieved through variable-speed pumping, reduced pump wear due to smoother start/stop cycles, and faster commissioning with Drive Composer. The optional Hand-Off-Auto panel and Bluetooth monitoring minimize downtime and maintenance trips, while the energy calculator provides tangible data to justify upgrades and ongoing operational improvements.
