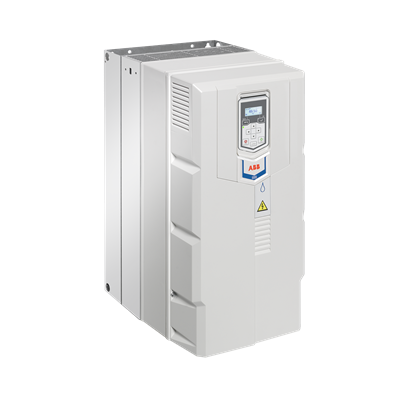

ABB 3ABD00049859 ACQ531-01 drives - IP20 enclosure
Part Number: 3ABD00049859
Quick Summary
ABB 3ABD00049859 ACQ531-01 drives deliver precise pump speed control for water and wastewater applications. This solution addresses the challenge of wasted energy and inconsistent flow by enabling optimized pump operation and easy integration with existing automation. The IP20 enclosure and compact wall-mounted design simplify installation in space-constrained motor rooms, while optional Hand-Off-Auto control, Drive Composer PC tool, and Bluetooth control panel streamline configuration and commissioning. The built-in energy calculator visualizes savings opportunities, helping engineers justify automation investments. By aligning with ABB’s ecosystem, the solution scales across varying pump profiles and site requirements, delivering measurable business value.
Product Information
Extended Description
3ABD00049859 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature: Built-in pump application functionality enables optimized pump control with minimal programming. Benefit: Improves hydraulic efficiency and reduces wear, translating to lower energy costs and longer motor life. Application: Water and wastewater pumping where flow accuracy matters. Feature: Energy calculator provides real-time visualization of energy savings. Benefit: Quantifies operating-cost reductions for ROI analysis and budget approvals. Application: Plant-wide energy management programs in municipal facilities and industrial water plants. Feature: IP20 enclosure and compact wall-mounted form factor. Benefit: Easier, safer installation in standard electrical rooms with minimal footprint. Application: Retrofit and new-build installations where space is at a premium. Feature: Optional Hand-Off-Auto control panel, Drive Composer PC tool, and Bluetooth control panel. Benefit: Accelerates commissioning, simplifies parameter tuning, and enables remote or field adjustments. Application: Tiered operator environments from shift-based to centralized control rooms. Feature: Built-in compatibility with ABB’s ecosystem and scalable performance. Benefit: Smooth integration with existing drives, sensors, and PLCs, reducing integration risk and future-proofing the investment. Application: Large-scale pumping deployments in municipal and industrial facilities. Industry context: In water and wastewater pumping, these capabilities support compliant operation, predictable head and flow, and reduced total cost of ownership over the drive’s life cycle.
Get a Quick Quote for a ABB 3ABD00049859
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00049859?
Enquire Now
FAQs
Begin with a proper wall-mount location inside an IP20-rated panel. Mount the ACQ531-01 drive securely, connect the input power and motor leads per the ABB installation guide, then enable the optional Hand-Off-Auto panel or Drive Composer PC tool for initial commissioning. Use the Bluetooth control panel for field adjustments and perform a basic parameter set to your pump curve.
Key specs include a 110 kW power rating and 206 A input current, housed in an IP20 enclosure and designed for wall mounting. It features built-in pump application functionality and supports ABB tooling such as Drive Composer PC and optional Bluetooth control. These specs enable precise, efficient control of pumping systems in water and wastewater applications.
Yes. The ACQ531-01 is explicitly designed for water and wastewater pumping, delivering reliable flow control and energy-efficient operation. Its pump-optimized features, energy calculator, and optional operator interfaces support municipal and industrial pumping scenarios with variable demand and strict process requirements.
The product comes with a standard IP20 enclosure, suitable for general indoor use in typical industrial environments. While IP20 addresses enclosure protection, verify local regulatory requirements for any additional CE/UL or regional certifications that may apply to your facility and application before deployment.
The integrated energy calculator helps quantify energy savings, supporting faster ROI assessments. Reduced wear from optimized pump operation lowers maintenance costs, while the optional Hand-Off-Auto and Drive Composer PC tool streamline commissioning and ongoing tuning, offering predictable performance and lower lifecycle costs for municipal and industrial pumping projects.
