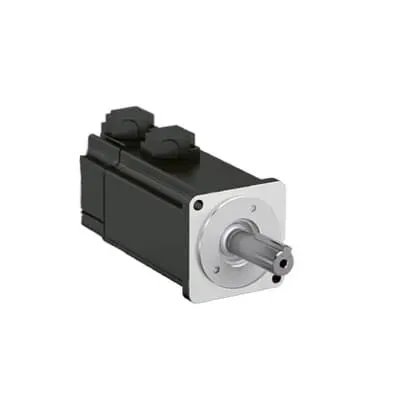

ABB 3ABD00050082 eSM Servo Motor - 0.1 kW, 220V
Part Number: 3ABD00050082
Quick Summary
ABB eSM servo motor is a compact, high-precision motion solution for LV AC automation in packaging, robotics, and tooling. Engineers often struggle with long machine setup times and downtime caused by homing cycles in traditional servo systems. Common certifications such as CE safety compliance, IP protection for harsh environments, and SIL-ready safety architectures help ensure regulatory adherence and reliable operation. By pairing the motor with MotiFlex e180 or MicroFlex e190 drives, you gain improved system reliability, energy efficiency, and faster commissioning—delivering tangible productivity gains in industrial automation environments.
Product Information
Extended Description
3ABD00050082 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
High torque density and fast dynamic response translate to higher throughputs on assembly lines and packaging machines, enabling shorter cycle times and better production capacity. This LV AC servo motor delivers precise motion with compact form factor, supporting tight space constraints and easier machine design. The business impact is clear: reduced downtime, improved quality, and lower total cost of ownership on high-speed automation workflows. A robust absolute encoder option provides accurate position feedback and eliminates homing cycles, cutting setup times and accelerating line changeovers in repetitive manufacturing. This directly improves takt times and reduces scrap through tighter process control. Compatibility with MotiFlex e180 and MicroFlex e190 drives offers a streamlined control architecture, simplifying commissioning, wiring, and diagnostics while maintaining a single vendor ecosystem. Expect faster integration, easier maintenance, and enhanced reliability across automated equipment. The motor’s energy-efficient design lowers operating costs on continuous production lines, delivering measurable reductions in cooling load and electricity consumption. Flexible flange options and a compact footprint ease integration with legacy equipment and new toolstations, enabling faster retrofits and scalable upgrades. Overall, the eSM motor supports high productivity without sacrificing reliability, backed by ABB’s engineering rigor and service ecosystem.
Get a Quick Quote for a ABB 3ABD00050082
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00050082?
Enquire Now
FAQs
To integrate this motor with MotiFlex e180, verify the drive’s flange compatibility and wiring scheme, ensure 220 V supply, and configure the encoder feedback type. Use ABB's suggested parameter sets for inertia and velocity limits, and incorporate safe torque off (STO) logic. Pre-commissioning checks include cable routing, bus sizing, and shield placement to minimize EMI for stable operation in automation cells.
The absolute encoder provides unique position data without homing cycles, enabling immediate position reference at power-up. This eliminates lengthy homing routines and reduces machine-bed alignment steps. For users, this means faster line changeovers, shorter downtime between jobs, and consistent repeatability across shifts, which is especially valuable in high-mix, low-volume manufacturing.
Yes. The 0.1 kW nominal rating with 0.32 N·m nominal torque offers precise, responsive control suitable for packaging with rapid pick-and-place or print-and-cut cycles. Its incremental inertia and fast dynamic response help maintain tight cycle timing, while compatibility with ABB drives supports scalable integration into existing lines and future upgrades without compromising performance.
The eSM motor is designed for high reliability with low-maintenance requirements, leveraging a robust brushless design and efficient thermal management. Its compatibility with ABB’s servo drives enables predictive diagnostics and unified service tooling, reducing unscheduled downtime. Energy-efficient operation also lowers cooling demands, contributing to longer system life and lower operating costs in demanding production environments.
ABB eSM motors commonly align with CE safety compliance and IP ratings for protection in challenging environments. Many ABB motion components are designed to support SIL-based safety architectures and standard industrial automation safety practices, helping you meet regulatory requirements and maintain safer, more reliable operations on the factory floor.
