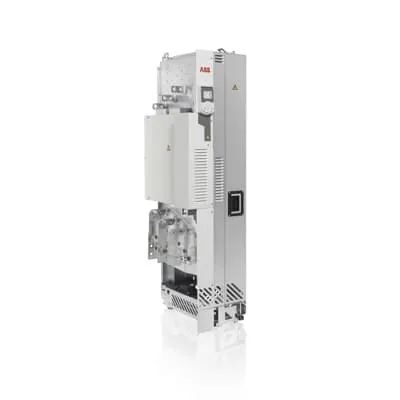

ABB 3ABD00050164-D Drive Module - 355 kW, 650 A (ACS580-04)
Part Number: 3ABD00050164-D
Quick Summary
ABB 3ABD00050164-D drive module is a LV AC variable-speed drive designed for general-purpose machine control across conveyors, pumps, compressors, and more. Engineers often struggle with lengthy setup, system integration, and maintaining reliability in demanding environments, making a plug‑and‑play solution highly valuable. This model features IP00 enclosure as standard, with an IP20 option to fit cabinet installations, and is aligned with robust industry practices through its ACS580-04 platform. The combination of built‑in configuration assistants and a rugged design translates to faster commissioning, easier maintenance, and lower total cost of ownership, while still delivering precise motor control for both variable and constant torque applications. In short, it supports efficient automation across food and beverage, plastics, textiles, and material handling sectors through dependable performance and simplified integration.
Product Information
Extended Description
3ABD00050164-D ABB: The ACS580-04 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS580-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
The drive is plug-in ready, which reduces installation time and accelerates project timelines, delivering immediate business value through faster commissioning and fewer field hardware requirements. The built-in settings menu and assistants simplify tuning, enabling operators to achieve stable process control with minimal engineering effort, reducing downtime and training costs. With a 355 kW, 650 A rating, the ACS580-04 module supports high‑torque starts for compressors and pumps while maintaining smooth speed transitions for conveyors and fans, improving energy efficiency and reducing mechanical wear. The IP00 enclosure is standard for cabinet installations, and an IP20 option expands installation flexibility, helping integrators meet plant safety policies and enclosure standards with minimal redesign. Rugged construction and proven ABB reliability translate to lower maintenance frequency and longer asset life in steel, food & beverage, and material handling environments. These characteristics also enable straightforward system expansion and compatibility with existing plant controls and fieldbus networks.
Get a Quick Quote for a ABB 3ABD00050164-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00050164-D?
Enquire Now
FAQs
The 3ABD00050164-D is plug-in ready and designed for cabinet installation. It ships with an IP00 enclosure as standard, with an IP20 option available for higher protection. Follow standard LV AC drive wiring practices: connect L1/L2/L3 (three-phase input), motor U/V/W outputs, protective earth, and any fieldbus connections as required. Use the built-in setup assistants to configure motor parameters, torque profiles, and control modes for a smooth commissioning process and reduced现场调试时间.
Yes. The ACS580-04 drive module is designed for general‑purpose control across a range of machines, including conveyors, pumps, compressors, extruders, centrifuges, mixers, and fans. Its plug‑in architecture and built‑in features support both variable and constant torque applications, enabling reliable speed control, energy efficiency, and extended equipment life in light industries such as food & beverage, plastics, and material handling.
Key specs include a 355 kW rated power and 650 A rated current, with standard IP00 enclosure and an optional IP20 enclosure. These protections are designed to support cabinet installations while offering flexibility for harsher environments. The drive belongs to the ACS580‑04 family, combining robust electrical design with straightforward configuration for reliable motor control.
The ACS580-04 drive module includes a versatile settings menu and assistants that streamline setup, commissioning, and ongoing operation. These built‑in tools reduce engineering time, minimize error sources during parameter tuning, and simplify troubleshooting. Coupled with a rugged build and built‑in protection features, this translates to lower downtime, fewer spare parts, and easier maintenance planning.
A plug‑in, cabinet‑ready drive with built‑in configuration aids reduces upfront engineering effort and field wiring, shortening project lead times. The rugged design and reliable ABB platform lower maintenance frequency and asset downtime, while the ability to support multiple applications (compressors, pumps, conveyors, fans) under a single drive family reduces spare parts and training needs. Over the life of a plant, these factors contribute to faster ROI and more predictable lifecycle costs.
