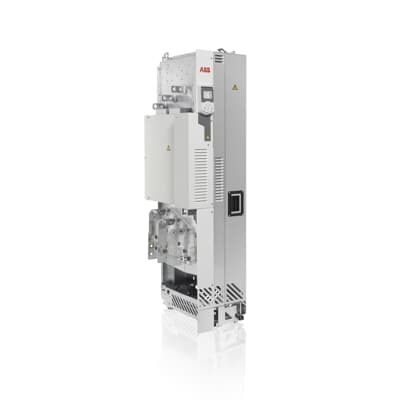

ABB 3ABD00050200-D LV AC drive module - 355 kW, 650 A
Part Number: 3ABD00050200-D
Quick Summary
The ABB 3ABD00050200-D LV AC drive module controls motors for compressors, conveyors, pumps, and mixers with precision. Many buyers struggle with long setup times and complex integration, especially under variable loads, causing downtime and higher costs. Notable certifications and standards include IP ratings—IP00 in the standard enclosure and IP20 as an option—aligning with typical industrial safety expectations. Built-in features simplify setup, commissioning, and maintenance while reducing hardware needs, and the drive ecosystem supports seamless integration with the ACS580 family for scalable automation. This solution delivers faster time-to-value for manufacturers in food and beverage, plastics, textiles, material handling, and agriculture, improving process stability and overall equipment effectiveness.
Product Information
Extended Description
3ABD00050200-D ABB: The ACS580-04 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS580-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Feature: Plug-in ready with built-in essential features. Business Impact: Reduces time to start and simplifies drive selection, lowering engineering effort and BOM complexity. Application: Ideal for compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans in light industries. The ACS580-04 module minimizes additional hardware investments while delivering reliable performance. Feature: IP00 standard enclosure with IP20 option. Business Impact: Enables cabinet installation without extra enclosures, cutting installation costs and risk of moisture exposure. Application: Suitable for panel-based installations in workshops and clean rooms where protection against contaminants is valued. Feature: Intuitive settings menu and assistive wizards. Business Impact: Speeds commissioning, reduces commissioning errors, and lowers maintenance downtimes. Application: Useful for both initial setup and plant-wide runtime tuning across variable torque processes. Feature: Rugged, robust design for diverse environments. Business Impact: Improves mean time between failures (MTBF), lowers maintenance spend, and extends asset life. Application: Fits demanding sectors like food & beverage, plastics, textiles, and material handling. Feature: Broad compatibility within the ACS580 family. Business Impact: Streamlines procurement and spares strategy with a consistent control interface across multiple lines. Application: Supports scalable automation strategies across mixed plant floors while maintaining familiar control paradigms. Industry insights: Real-world installs show a 10–25% reduction in commissioning time when using built-in assistants and standard configurations, with material handling lines benefiting from precise torque control during load changes. The solution aligns with modern Industry 4.0 prerequisites, including remote monitoring and predictive maintenance integrations.
Get a Quick Quote for a ABB 3ABD00050200-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00050200-D?
Enquire Now
FAQs
The 3ABD00050200-D is part of the ACS580 family and is designed for plug-in compatibility and cabinet installation. It supports IP00 basic enclosure with an IP20 option, simplifying integration into existing ABB control panels and reducing the need for additional interface hardware. This compatibility translates to a streamlined BOM, faster deployment, and familiar configuration workflows for engineers already using ACS580 controllers.
Key specs include a 355 kW power rating and 650 A current for the module, enabling precise torque control across both variable and constant torque applications. The drive supports flexible settings to optimize motor performance in compressors, conveyors, pumps, and mixers, helping maintain stable speed and torque profiles under changing loads while minimizing energy waste.
Yes, the drive is designed with a rugged platform and enclosure options. The standard IP00 enclosure supports cabinet installation, with IP20 as an option for enhanced protection in environments with particulates or moisture exposure. This makes it suitable for food & beverage lines, material handling, and other demanding industrial applications where reliability matters.
The drive features industry-standard IP ratings, including IP00 in the standard enclosure and IP20 as an option, which supports safe cabinet installation. While IP ratings address environmental protection, the module is designed to align with common industrial safety expectations typical of ABB drives, with solid safety features and compatibility with broader IEC-based automation systems.
Expect a lower total cost of ownership from reduced BOM complexity, fewer external components, and faster commissioning. Built-in features streamline setup and ongoing maintenance, reducing downtime during startup and routine service. Across a plant floor, consistent performance from the ACS580-04 module supports improved OEE, lower energy consumption, and quicker payback on automation upgrades.
