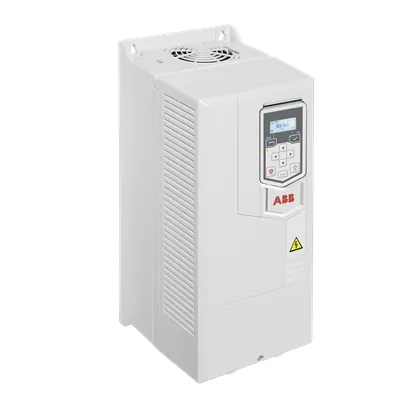

ABB ACS530-01-046A-4+N7569 Drive - IP20 Enclosure
Part Number: 3ABD00050262-D
Quick Summary
ABB ACS530-01-046A-4+N7569 drive provides precise motor speed control for compressors, conveyors, pumps, and fans. Engineers often struggle with lengthy setup times, complex wiring, and cascading control panels when adding drives to existing lines. The IP20 wall-mounted enclosure and built-in features support CE marking and SIL-ready configurations—confirm with your regional ABB distributor. In practice, you gain faster time-to-production, reduced external hardware, and scalable automation across light-industrial applications, delivering reliable performance and lower total cost of ownership for manufacturing and process environments.
Product Information
Extended Description
3ABD00050262-D ABB: The ACS530-01 can control your compressors, conveyors, pumps, centrifuges, fans, and many other variable and simple constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The basic control panel enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. The wall-mounted ACS530-01 comes in an IP20 enclosure as standard.
Feature: Built-in setup and commissioning tools; Business Impact: Accelerates configuration and reduces the need for additional hardware, shortening project timelines; Application: New line installations and retrofit projects in light-industrial settings. Feature: IP20 wall-mounted enclosure; Business Impact: Safe, space-efficient installation with easy access for maintenance; Application: Control cabinets and restricted plant areas. Feature: 22 kW output with 46 A input; Business Impact: Sufficient torque for moderate-load conveyors, compressors, and pumps while preserving energy efficiency; Application: Medium-demand fans and pump packages. Feature: Broad compatibility with food & beverage, plastic, textile, and agriculture sectors; Business Impact: One drive supports multiple machines, reducing spares inventory; Application: Material handling and process lines. Feature: Rugged, robust design; Business Impact: Reliability in variable environments lowers downtime; Application: Clean rooms, production floors, and outdoor-adjacent units. Feature: Built-in protection and diagnostics; Business Impact: Faster fault isolation and preventive maintenance; Application: Prevents unexpected outages and extends motor life.
Get a Quick Quote for a ABB 3ABD00050262-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00050262-D?
Enquire Now
FAQs
The ACS530-01-046A-4+N7569 is designed for easy integration in controlled environments with standard three-phase supplies. Mount in a ventilated, IP20-rated enclosure, connect to the motor via suitable terminals, and use the built-in setup utilities to minimize external hardware. Ensure proper circuit protection and motor compatibility to achieve reliable commissioning and quick start-up.
Key specs include a 22 kW output power rating, 46 A input current, IP20 protection, and a wall-mounted enclosure. It supports variable speed control for motors in light-industrial applications and provides built-in features that simplify setup, monitoring, and maintenance, reducing component count and overall installation time.
Yes, it is suitable for light-industrial applications such as food and beverage conveyors. The 22 kW capacity supports moderate-load conveyors, and the IP20 wall-mounted design helps integration in controlled production areas. It’s advisable to confirm regional sanitation standards and any industry-specific cleanability requirements with your ABB distributor.
The unit comes with IP20 enclosure protection for indoor, controlled environments. ABB drives typically align with CE marking and SIL-ready configurations; however, confirm the exact certifications applicable in your region with your supplier to ensure compliance with local regulations and safety requirements.
The ACS530-01-046A-4+N7569 reduces hardware diversity by delivering built-in setup, diagnostics, and protection, speeding commissioning and lowering maintenance needs. Energy savings from precise speed control improve overall process efficiency. With fewer external components and streamlined maintenance, customers typically see quicker payback and lower lifecycle costs across light-industrial lines.
