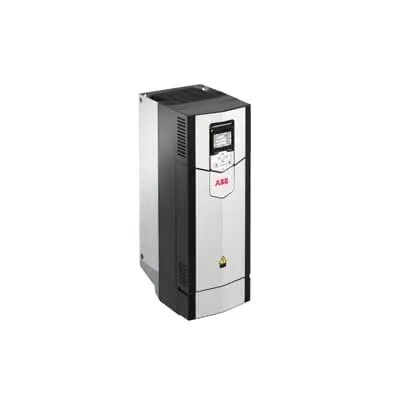

ABB 3ABD00050594-D ACS880 Drive - +N5700 Control
Part Number: 3ABD00050594-D
Quick Summary
ABB 3ABD00050594-D is a LV AC industrial wall-mounted single drive that delivers precise high-power position control for production machinery. OEMs and maintenance teams often face lengthy tuning, integration challenges, and unexpected downtime when upgrading motion systems. This solution aligns with CE safety requirements, IP-rated enclosures for harsh environments, and SIL-ready capabilities to support safe, reliable operation. Configured with PLCopen motion control blocks, it offers flexible programming and seamless connectivity to motors and PLCs, streamlining commissioning. This makes it ideal for industrial automation, machine builders, and material handling applications seeking scalable, ready-to-integrate solutions for rapid deployment and reduced total cost of ownership.
Product Information
Extended Description
3ABD00050594-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: High-power 22 kW, 45 A drive enables handling demanding axes with a compact footprint. Business Impact: Improves throughput and reduces motor size requirements, delivering greater efficiency in conveyors and hoists. Application: Material handling systems and packaging lines benefit from consistent torque and responsive starts. Feature: +N5700 position control with PLCopen motion control blocks. Business Impact: Enables precise axis positioning, tighter tolerances, and faster cycle times while simplifying programming. Application: Production machinery and pick-and-place axes where repeatability matters. Feature: LV AC wall-mounted enclosure design. Business Impact: Easier installation, simplified service access, and reduced cabinet footprint on crowded factory floors. Application: OEM machine builders installing multi-axis systems in limited spaces. Feature: Seamless motor and PLC connectivity. Business Impact: Shortens time-to-first-run and lowers commissioning costs with standard fieldbus interfaces. Application: New lines or retrofits requiring quick integration with existing controls. Feature: Safety, reliability, and support framework. Business Impact: Lowers risk of unexpected downtime and improves maintenance planning with robust components and lifecycle support. Application: Continuous operation environments such as material handling and packaging lines. Objection handling: If programming complexity is a concern, PLCopen motion control blocks provide a parameter-based setup that accelerates tuning and validation, while open connectivity ensures compatibility with legacy PLCs and non-ABB motors.
Get a Quick Quote for a ABB 3ABD00050594-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00050594-D?
Enquire Now
FAQs
Yes. The drive is designed for straightforward integration with both ABB and non-ABB PLCs, leveraging PLCopen motion control blocks and standard fieldbus interfaces. Compatibility with existing cabling and motor configurations minimizes rework, while the modular ACS880 platform supports scalable upgrades without a full system rebuild.
The drive delivers 22 kW of power and 45 A current, configured as ACS880-01-045A-3+E200+N5700. It includes a high-precision position control program (+N5700) and PLCopen blocks for flexible motion control, enabling accurate axis positioning and repeatable motion across demanding axes.
Absolutely. The 22 kW, 45 A rating combined with +N5700 position control supports rapid accelerations and precise positioning required in material handling and packaging. Its PLCopen-based configuration reduces commissioning time, while the wall-mounted form factor simplifies installation along compact production lines.
The ABB ACS880 family commonly aligns with CE safety standards and is designed for industrial environments with protective IP-rated enclosures. SIL-ready features are available to support safe, layered control architectures. For your specific installation, confirm local regulatory requirements and your plant’s safety integration plans.
Investing in the 3ABD00050594-D reduces commissioning time through PLCopen blocks, minimizes downtime with robust hardware, and improves energy efficiency via optimized motor control. Long-term maintenance is simplified by standardized wiring, easier diagnostics, and compatibility with existing control ecosystems, leading to faster time-to-value and lower total cost of ownership.
