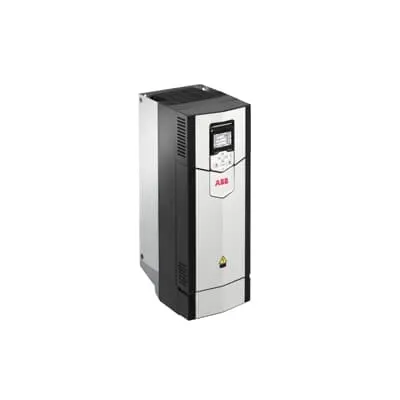

ABB ACS880-01-061A-3+E200+N5700 Drive - Position control
Part Number: 3ABD00057674-D
Quick Summary
ABB ACS880 drive is a high‑power LV AC motion controller designed for precise position control in production machinery and material handling. Engineers often wrestle with lengthy commissioning and complex PLC integration; the ACS880 offers parameter based setup and PLCopen motion control blocks to accelerate deployment. With CE compliance and compatibility across motors and PLCs, this drive supports safe, scalable expansion in modern factories. Beyond reliability, the solution delivers measurable business value through faster time‑to‑production, reduced wiring and commissioning costs, and optimized motion performance. Ideal for food and packaging lines, automotive subassemblies, and material handling tasks requiring repeatable positioning. This combination of power, flexibility and proven motion control makes it a reliable backbone for production automation.
Product Information
Extended Description
3ABD00057674-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: High power LV AC performance (30 kW, 61 A) with wall‑mounted installation. Business Impact: Delivers robust axis power in a compact footprint, reducing enclosure size and installation complexity. Application: Suitable for single-axis, high‑torque positioning in packaging, material handling, and light machinery. Feature: +N5700 position control program. Business Impact: Enables precise, repeatable motion with PLCopen capable blocks, shortening commissioning time. Application: High‑precision pick-and-place, stacking and indexing in automated lines. Feature: PLCopen motion control blocks and parameter‑driven configuration. Business Impact: Simplifies integration with existing PLCs, lowers engineering effort, and accelerates validation. Application: Machines with heterogeneous control architectures. Feature: Wide motor and PLC compatibility. Business Impact: Reduces risk and wiring complexity when upgrading or expanding lines. Application: Retrofit projects and scalable automation. Feature: Wall‑mounted industrial design with straightforward connectivity. Business Impact: Eases installation in tight panels, lowers maintenance risk, and improves serviceability. Application: Factory floors with space constraints and frequent maintenance cycles.
Get a Quick Quote for a ABB 3ABD00057674-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00057674-D?
Enquire Now
FAQs
Begin with a suitable wall‑mount enclosure rated for your environment, ensuring adequate ventilation and clearance for heat dissipation. Connect input power and operator interfaces per ABB installation guidelines, then configure the N5700 position control parameters. Verify motor and encoder wiring match the drive’s 30 kW power rating and 61 A current, and finally perform a cautious ramping test to validate axis response and PLC integration.
The ACS880 is designed to work with standard industrial motors within its 30 kW, 61 A rating and supports integration with PLCs that implement PLCopen motion control blocks. This compatibility reduces wiring, simplifies parameter transfer, and allows reuse of existing motor libraries and control software, making upgrades or expansions less disruptive to production lines.
Yes. The drive includes the +N5700 position control program, enabling precise, repeatable axis movement even in demanding packaging and material handling tasks. Real‑time motion blocks optimize trajectory planning, reducing overshoot and settling time while maintaining consistent performance across repeat cycles.
The ACS880 drive is CE‑compliant for European markets, reflecting adherence to essential safety and environmental standards. It is designed to integrate with common industrial automation practices and supports standardized motion control interfaces, which helps ensure safe, reliable operation within compliant manufacturing environments.
By shortening commissioning through parameter‑driven setup and PLCopen blocks, the ACS880 reduces engineer time and startup risk. Its compatible wiring and modular architecture simplify maintenance and future upgrades, while precise motion control improves throughput and reduces scrap, delivering measurable cost savings and faster time‑to‑production on automated lines.
