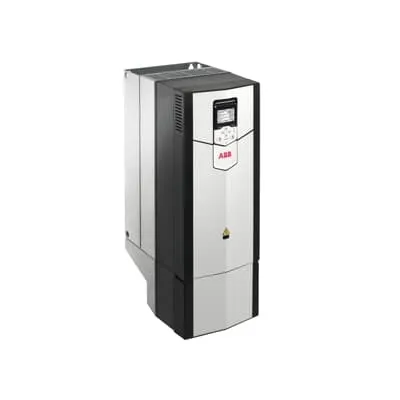

ABB ACS880 Drive 3ABD00057686-D - PLCopen Motion
Part Number: 3ABD00057686-D
Quick Summary
ABB ACS880 Drive is a LV AC industrial wall-mounted drive for high-power axis position control. Engineers often wrestle with lengthy programming and inconsistent PLC integration when scaling motion across multiple axes. This solution aligns with industry standards with CE compliance, IP-rated enclosure options, and SIL-ready safety configurations to meet demanding process environments. Beyond compliance, it delivers faster commissioning, parameter-based setup, and seamless motor-PLC connectivity, translating into improved line uptime and reduced engineering effort. The result is a more predictable automation stack that supports production efficiency and scalable integration with existing PLC architectures. This combination helps OEMs meet tight lead times and minimizes changeover risk across diverse manufacturing environments.
Product Information
Extended Description
3ABD00057686-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
High-power capability and a compact wall-mount design enable 55 kW, 105 A operation in demanding axis drives. This configuration supports heavy-load positioning on production machinery and material-handling lines, reducing footprint without sacrificing performance. The directional control algorithms stay robust under heavy-duty cycles, improving motor life and reducing maintenance intervals in demanding environments. PLCopen motion control blocks provide a structured programming model, simplifying sequence development and trimming commissioning time. Parameter-based configuration lets engineers tune motion profiles quickly, enabling repeatable performance across multiple axes with minimal rework. This approach also improves traceability and change management when upgrading production lines or adding new equipment. Position control via the +N5700 option delivers precise axis motion, repeatability, and synchronized moves between drives. In practice, this enhances assembly-line accuracy, reduces defect rates, and raises throughput on material-handling tasks. The result is a scalable solution that supports evolving manufacturing requirements without re-engineering the control architecture. Connectivity to a broad range of motors and PLCs ensures flexible deployment across mixed-brand plants. Engineers value compatibility with common fieldbus protocols and the ease of integrating with existing automation stacks. The drive’s parameter migration tools simplify upgrades when motor catalogs or PLCs change over time. Installation benefits include straightforward LV AC power routing and a modular enclosure strategy that fits tight machine spaces. The unit supports safe commissioning with predictable start-up sequences and state-of-the-art safety options. By aligning with standard industrial practices, it reduces engineering risk and shortens time-to-first-run. In short, ABB ACS880 Drives deliver measurable efficiency gains, lower downtime, and a clear ROI path for high-precision automation. This makes the 3ABD00057686-D model a compelling option for OEMs and maintenance teams seeking reliable, scalable motion control.
Get a Quick Quote for a ABB 3ABD00057686-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00057686-D?
Enquire Now
FAQs
For mounting, place the drive in a suitable enclosure with adequate ventilation and access to LV AC power. Wire the 3-phase supply per the nameplate, connect motor leads to the drive outputs, and tie the PLC/fieldbus interface to the controller inputs. Use parameter-based configuration to align the +/- N5700 position control and ensure proper protection devices are in place. Verify grounding and safety interlocks before commissioning to minimize risk.
Key specs include 55 kW power with a 105 A current rating for LV AC operation, configured as ACS880-01-105A-3+D150+E200+N5700. It supports PLCopen motion control blocks for structured motion programming and the +N5700 position control option for precise axis control. These features enable high-precision positioning, repeatable moves, and scalable performance across multiple axes in production lines.
Yes. The +N5700 position control option and PLCopen motion blocks provide deterministic axis motion, which is critical for material handling and high-precision assembly. The 55 kW, 105 A capability supports demanding loads, while server-like parameter-based tuning reduces variation between cycles. Its integration with existing PLCs and motors simplifies deployment in multi-axis handling systems.
ABB drives in this class typically align with CE conformity for Europe and offer SIL-ready safety configurations where applicable. While enclosure IP ratings depend on the final enclosure, the device supports standard safety practices common to industrial drives. Verify the specific unit’s safety documentation and local regulatory requirements during procurement and integration.
Expect reduced commissioning time due to parameter-based setup and PLCopen blocks, leading to faster time-to-first-run. The precise position control reduces defect rates and minimizes rework in high-precision tasks. Long-term benefits include lower downtime, easier upgrades, and a clearer path to ROI through improved line throughput and scalable automation across multi-axis systems.
