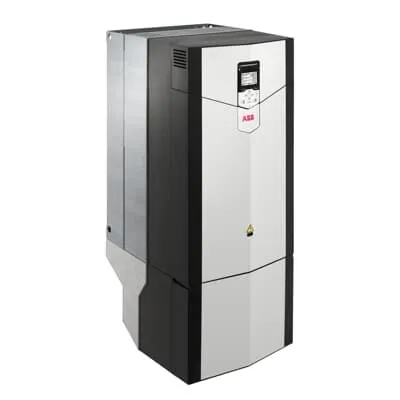

ABB 3ABD00057693-D Drive - Pn 250 kW, 430 A, ACS880-01
Part Number: 3ABD00057693-D
Quick Summary
ABB 3ABD00057693-D is a LV AC wall-mounted drive for high-power position control applications. Engineers wrestle with downtime, integration friction, and tuning delays when linking drives to PLCs and motion controls. CE-compliant design with SIL-ready safety configurations and IP-rated enclosure options. The system is configured with the position control program (+N5700) for precise, repeatable motion in production machinery and material handling. Designed for ACS880-compatible ecosystems and seamless PLC connectivity, it drives efficiency, reduces wiring complexity, and shortens time to value. The combination of robust programming, easy commissioning, and scalable integration supports manufacturers seeking higher throughput.
Product Information
Extended Description
3ABD00057693-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: The ACS880 platform configuration includes a position control program (+N5700) that delivers precise, repeatable axis motion. Business Impact: users benefit from tighter process control, reduced overshoot, and lower scrap rates in high-speed lines. Application: ideal for production machinery and material handling systems where accurate positioning of conveyors, lifting devices, or rotary axes is a competitive differentiator, even under varying load conditions. Feature: PLCopen motion control blocks enable parameter-driven programming with clear blocks for velocity, position, and torque profiles. Business Impact: this reduces commissioning time, lowers engineering costs, and minimizes risk during plant startups. Application: perfectly suited for multi-axis packaging lines, sorting systems, and automated assembly cells that demand consistent motion across synchronized axes. Feature: The drive is rated Pn 250 kW with 430 A nominal current in an LV AC configuration, housed in a single wall-mounted unit. Business Impact: it can directly drive high-torque applications, reducing the number of auxiliary drives and simplifying wiring. Application: appropriate for large conveyors, presses, and material-handling equipment that require robust, high-power motor control in a compact footprint. Feature: Space-saving wall-mount enclosure supports quick installation and simplified maintenance in tight control cabinets. Business Impact: frees cabinet space, lowers installation labor, and expedites servicing with accessible connectors. Application: retrofits and new lines in busy factories where floor space is at a premium and downtime costs matter. Feature: Connectivity with ABB’s ACS880 ecosystem and seamless PLC interfaces provides a future-ready automation backbone. Business Impact: standardization reduces spare-parts inventory, accelerates upgrades, and improves long-term total cost of ownership. Application: suitable for industrial environments seeking scalable motion control across multiple lines, mixed PLC platforms, or cross-site deployment.
Get a Quick Quote for a ABB 3ABD00057693-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00057693-D?
Enquire Now
FAQs
Ensure a suitable LV AC supply, proper grounding, and clearance for cooling. Use compliant cabling, verify enclosure access, and follow ACS880 installation guidelines to integrate the +N5700 position control correctly with the machine PLC and field devices.
Power rating Pn is 250 kW with a nominal current of 430 A. It houses the ACS880-01-430A-3+D150+E200+N5700 configuration and supports high-power position control with PLCopen motion blocks for multi-axis synchronization.
Yes. The combination of high power, precise position control, and PLC connectivity makes it well-suited for packaging lines, material handling systems, and large conveyors where repeatable motion and reliable axis control are critical.
The drive is CE compliant with common industrial safety expectations. It supports SIL-ready configurations and offers IP-rated enclosure options depending on the specific installation and enclosure design.
ROI is driven by reduced downtime, quicker commissioning via PLCopen blocks, and standardized ABB ACS880 integration. Maintenance is simplified by standardized components, with predictable spare parts and lifecycle support across the ACS880 family.
