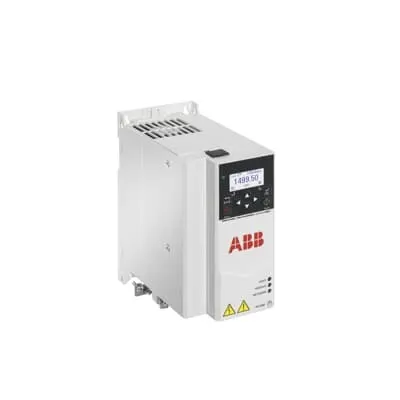

ABB 3ABD00057771 Frequency Converter - IP20 Open Type
Part Number: 3ABD00057771
Quick Summary
ABB 3ABD00057771 frequency converter is a compact LV AC drive module designed to provide precise motor speed control for packaging, material handling, and general automation applications. Designed to fit tight spaces, this 5.5 kW drive accepts 380–480 V three-phase power and delivers reliable torque with smooth ramping. For engineers, the challenge is integrating a robust drive without increasing enclosure complexity or wiring. The module features IP20 protection in an open-type enclosure, with a 3-phase input and IEC-capable efficiency. While not a 'one-size-fits-all' solution, it aligns with standard ABB drives to streamline procurement, spare parts, and service. The combination of compact form, solid performance, and global stock supports faster project timelines.
Product Information
Extended Description
3ABD00057771 ABB: LV AC machinery drive module, IEC: Pn 5.5 kW, 12.6 A (ACS380-040C-12A6-4+X1607+L535)
Configuration Only
No
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSC | WMSACNGZH1 | CSB | WMSACNURMQ
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS380-040C-12A6-4+X1607+L535 PN: 5.5kW, IN: 12.6A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
1.4 kg
Product Net Depth / Length
176 mm
Product Net Height
223 mm
Product Net Width
70 mm
Package Level 1 Depth / Length
280 mm
Package Level 1 Height
270 mm
Package Level 1 Width
170 mm
Package Level 1 Units
0 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R1
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Module
Output Current, Normal Use (In)
12.6 A
Output Current, Light-Overload Use (ILD)
12.0 A
Output Current, Heavy-Duty Use (IHD)
9.4 A
Output Power, Normal Use (Pn)
5.5 kW
Output Power, Light-Overload Use (PLD)
5.5 kW
Output Power, Heavy-Duty Use (PHD)
4.0 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
FREQUENCY CONVERTER
Feature → Business Impact → Application: The 176 mm x 223 mm x 70 mm footprint and a 1.4 kg weight deliver a compact drive module that fits tight panel spaces, reducing enclosure footprint and installation time for conveyor and pump stations. This enables faster commissioning and easier retrofits in existing lines, supporting lean manufacturing goals. Feature → Business Impact → Application: A 5.5 kW output with 12.6 A nominal current provides precise motor control and predictable torque for speed-critical conveyors and fans, translating into smoother production flow and reduced mechanical wear. Feature → Business Impact → Application: IP20 protection in an Open Type enclosure simplifies heat management and field servicing, lowering maintenance downtime while keeping wiring accessible for quick troubleshooting on packaging lines and material handling systems. Feature → Business Impact → Application: The 47.5–63 Hz input range and IE2 efficiency support stable operation across varying voltages and loading conditions, improving energy efficiency and reducing operating costs on continuous-process lines. Feature → Business Impact → Application: Stock availability across multiple warehouses accelerates project timelines and spare-part accessibility, enabling rapid replacement and minimizing downtime during expansion or upgrade projects. Feature → Business Impact → Application: Module mounting and compatibility with ABB drives simplify installation, migration, and integration with existing control architectures, providing a seamless path for upgrades in food & beverage, packaging, and manufacturing environments.
