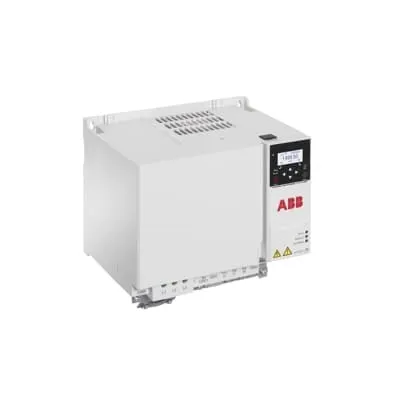

ABB ACS380-040C-045A-4+X1607+L535 Frequency Converter - IP20
Part Number: 3ABD00057776
Quick Summary
ABB ACS380-040C-045A-4+X1607+L535 is a low-voltage AC drive for motor control in automation. Designed as a compact, modular frequency converter, it minimizes wiring and speeds commissioning in complex machinery. Key protections and standards include IP20 protection, IE2 efficiency, and an Open Type enclosure, aligning with typical plant safety and energy targets. Operated from 380–480 V three-phase networks, it delivers reliable performance for conveyors, machine tools, and packaging lines. Across OEMs and integrators, these attributes translate to lower installation risk, reduced downtime, and faster ROI. It also supports easy maintenance through modular construction and clear diagnostics. This combination helps engineers meet production targets with predictable performance.
Product Information
Extended Description
3ABD00057776 ABB: LV AC machinery drive module, IEC: Pn 22 kW, 45.0 A (ACS380-040C-045A-4+X1607+L535)
Configuration Only
No
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSC | WMSACNGZH1 | CSB | WMSACNURMQ
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS380-040C-045A-4+X1607+L535 PN: 22kW, IN: 45A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
5.3 kg
Product Net Depth / Length
176 mm
Product Net Height
240 mm
Product Net Width
260 mm
Package Level 1 Depth / Length
355 mm
Package Level 1 Height
270 mm
Package Level 1 Width
290 mm
Package Level 1 Units
0 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R4
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Module
Output Current, Normal Use (In)
45.0 A
Output Current, Light-Overload Use (ILD)
42.8 A
Output Current, Heavy-Duty Use (IHD)
38.0 A
Output Power, Normal Use (Pn)
22 kW
Output Power, Light-Overload Use (PLD)
22.0 kW
Output Power, Heavy-Duty Use (PHD)
18.5 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
FREQUENCY CONVERTER
Feature: 22 kW PN, 45 A output in a 3-phase 380–480 V system. Business Impact: Enables precise motor control with robust startup torque while minimizing energy waste on steady-state operation. Application: Ideal for conveyors, machine tools, and packaging lines where reliable torque is critical. Feature: IP20 protection with Open Type enclosure. Business Impact: Suitable for controlled environments, simplifying installation in control panels and machine rooms. Application: Common in OEM panels and retrofit projects where accessibility and ventilation are priorities. Feature: IE2 efficiency rating. Business Impact: Reduces energy consumption over the drive’s life, lowering operating costs and improving sustainability metrics. Application: High-duty-cycle lines and long-running equipment where energy costs accumulate. Feature: Modular drive module with straightforward mounting. Business Impact: Speeds installation, reduces wiring complexity, and eases maintenance or future upgrades. Application: Retrofit projects and new builds seeking scalable automation architecture. Feature: Wide frequency range and robust multi-area compatibility (47.5–63 Hz). Business Impact: Ensures stable performance across regional supply variations and motor types. Application: Global manufacturing environments and multi-site deployments. Industry context and accessibility: In practice, installers benefit from stock availability across multiple warehouses, shortening lead times and supporting just-in-time manufacturing. Compatibility with standard ABB accessory ecosystems further reduces time-to-first-run and simplifies spare-part planning.
