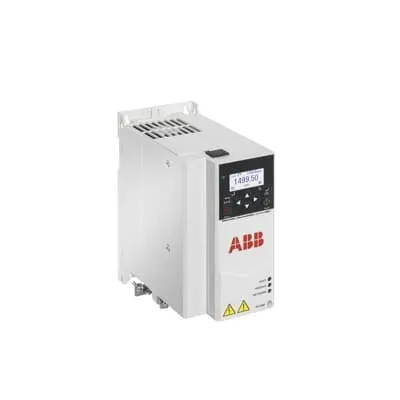

ABB ACS380-040C-12A6-4 Frequency Converter - IP20
Part Number: 3ABD00057869
Quick Summary
ABB ACS380-040C-12A6-4 frequency converter enables precise motor control for LVAC drives in three-phase systems such as conveyors, pumps, and machine tools. Engineers often struggle with limited panel space, wiring complexity, and energy waste when upgrading older drives. This module delivers IP20 protection, an open-type enclosure, and guidance aligned with IEC 61800-9-2 energy efficiency standards to ensure reliable performance. With stock available across multiple regional warehouses and a 0 day lead time for select SKUs, rapid deployment and predictable project timelines are within reach. In addition to core drive technology, this solution supports efficient procurement and streamlined installation for industrial automation projects.
Product Information
Extended Description
3ABD00057869 ABB: LV AC machinery drive module, IEC: Pn 5.5 kW, 12.6 A (ACS380-040C-12A6-4+K454+L515+L535)
Configuration Only
No
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | WMSACNGZH1 | CSC | CSB
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS380-040C-12A6-4+K454+L515+L535 PN: 5.5kW, IN: 12.6A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
2 kg
Product Net Depth / Length
176 mm
Product Net Height
223 mm
Product Net Width
95 mm
Package Level 1 Depth / Length
280 mm
Package Level 1 Height
270 mm
Package Level 1 Width
170 mm
Package Level 1 Units
0 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R2
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Module
Output Current, Normal Use (In)
12.6 A
Output Current, Light-Overload Use (ILD)
12.0 A
Output Current, Heavy-Duty Use (IHD)
9.4 A
Output Power, Normal Use (Pn)
5.5 kW
Output Power, Light-Overload Use (PLD)
5.5 kW
Output Power, Heavy-Duty Use (PHD)
4.0 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
FREQUENCY CONVERTER
Feature → Business Impact → Application: The compact module footprint (176 mm x 95 mm x 223 mm) and 2 kg weight save valuable panel space and simplify enclosure design, reducing installation time and cabinet cooling requirements. This translates to faster commissioning and lower upfront integration costs for machine tools and compact conveyors. Feature → Business Impact → Application: The 3-phase input range of 380–480 V with PN 5.5 kW (5.5 kW output) enables direct motor drive with standard industrial power, improving energy efficiency and reducing wiring complexity in pumps and fans. Feature → Business Impact → Application: IP20 protection and an Open Type enclosure support accessible wiring and robust indoor operation, improving serviceability during maintenance and upgrades in manufacturing lines. Feature → Business Impact → Application: Output ratings of 12.6 A nominal, 12.0 A LD, and 9.4 A HD enable smooth starts, better torque control, and transient handling, delivering reliable performance under varied load conditions in conveyors and process equipment. Feature → Business Impact → Application: Ready stock across multiple warehouses and 0-day lead time for select SKUs minimize downtime and expedite project timelines, benefiting regional rollouts and maintenance budgets. Feature → Business Impact → Application: Compliance with 61800-9-2 efficiency guidance and tariff/HS classifications streamline procurement and import compliance for industrial automation projects.
Get a Quick Quote for a ABB 3ABD00057869
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00057869?
Enquire Now
FAQs
Yes. The ACS380-040C-12A6-4 is designed for 380–480 V three-phase input with a 47.5–63 Hz operating range, enabling straightforward integration into standard industrial power rails and existing machine control networks. Its module mounting and open-type enclosure simplify panel layout and wiring routing, reducing installation time.
The drive delivers 5.5 kW PN with a nominal output of 12.6 A, LD of 12.0 A, and HD of 9.4 A. It uses IP20 protection and open-type enclosure to support indoor applications. The unit aligns with IEC 61800-9-2 efficiency guidance, helping justify energy-performance targets in continuous operations.
Absolutely. The 5.5 kW, 12.6 A configuration provides precise speed control and torque management ideal for conveyors and pump trains. The 380–480 V input and 47.5–63 Hz range accommodate typical industrial duty cycles, while the compact footprint aids integration into compact control panels and retrofit projects.
The device features IP20 protection and adheres to energy-efficiency guidelines outlined in IEC 61800-9-2. For procurement and logistics, tariff/HS classifications are available (Tariff Number 85044099; HS code references). Lead times vary by stock location, with multiple warehouses supporting faster delivery.
The lightweight, compact module reduces panel space and wiring complexity, accelerating commissioning and reducing enclosure costs. Ready stock across several warehouses minimizes downtime, while the open enclosure simplifies maintenance tasks. Overall, these factors contribute to quicker ROI and lower lifecycle costs.
