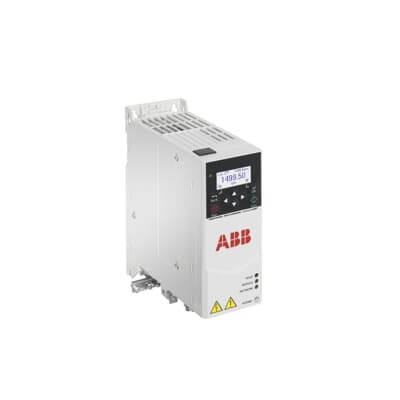

ABB ACS380-040C-01A8-4+K490+L515+L535 Drive Module - IE2
Part Number: 3ABD00057876
Quick Summary
ABB ACS380-040C-01A8-4+K490+L515+L535 Drive Module is a compact LV AC machinery drive designed for 3-phase 380–480 V applications. Engineers often face space constraints, long commissioning times, and compatibility challenges with existing motors. This module aligns with IP20 protection and IE2 efficiency, offering an open-type enclosure that simplifies panel integration while maintaining robust performance. With stock available across multiple warehouses and a 0-day lead time, it minimizes downtime and accelerates project readiness. For OEMs and maintenance teams, the device delivers reliable speed control and straightforward installation for conveyors, pumps, and industrial machinery.
Product Information
Extended Description
3ABD00057876 ABB: LV AC machinery drive module, IEC: Pn 0.55 kW, 1.8 A (ACS380-040C-01A8-4+K490+L515+L535)
Configuration Only
No
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | WMSACNGZH1 | CSC | CSB
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS380-040C-01A8-4+K490+L515+L535 PN: 0.55kW, IN: 1.8A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
1.4 kg
Product Net Depth / Length
176 mm
Product Net Height
223 mm
Product Net Width
70 mm
Package Level 1 Depth / Length
280 mm
Package Level 1 Height
270 mm
Package Level 1 Width
145 mm
Package Level 1 Units
0 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R0
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Module
Output Current, Normal Use (In)
1.8 A
Output Current, Light-Overload Use (ILD)
1.7 A
Output Current, Heavy-Duty Use (IHD)
1.2 A
Output Power, Normal Use (Pn)
0.55 kW
Output Power, Light-Overload Use (PLD)
0.55 kW
Output Power, Heavy-Duty Use (PHD)
0.37 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
FREQUENCY CONVERTER
Feature → Business Impact → Application: 3-phase input 380–480 V supports direct integration with standard industrial power grids, reducing wiring complexity and improving compatibility with existing controls. This translates to faster commissioning and lower installation risk in machine builds or line upgrades. Application: conveyors, pumps, and packaging lines benefit from immediate compatibility and predictable performance. Feature → Business Impact → Application: PN 0.55 kW, IN 1.8 A enables precise motor speed control while maintaining compact form factor, reducing motor oversizing and improving system responsiveness. This supports energy-efficient operation and smoother process control in small- to mid-range drives. Application: fans, pumps, and small actuators benefit from efficient torque and speed tuning. Feature → Business Impact → Application: IP20 protection in an Open Type enclosure provides safe access for service and wiring while allowing adequate ventilation in control panels. This minimizes enclosure costs and simplifies maintenance in busy automation environments. Application: panel-mounted drives in machine centers and OEM assemblies can be accessed without compromising protection. Feature → Business Impact → Application: IE2 efficiency class delivers measurable energy savings over extended operation, lowering total cost of ownership. Application: continuous-running conveyors and process lines gain lower energy bills and cooler operation. Feature → Business Impact → Application: Frame Size R0 and modular mounting support quick installation, retrofit, and future expansion. Application: compact footprint fits tight panel spaces and enables scalable automation architectures. Feature → Business Impact → Application: Stocked At Warehouses with 0 day lead time reduces downtime by enabling rapid replacement or upgrades. Application: maintenance events and spare-part planning in manufacturing facilities. Industry insight: leveraging a ready-to-ship drive module accelerates time-to- production and reduces risk during line migrations or capacity expansions.
Get a Quick Quote for a ABB 3ABD00057876
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00057876?
Enquire Now
FAQs
Yes. This ABB drive module is designed for 3-phase 380–480 V input, enabling direct integration with standard industrial power supplies. Its open-type IP20 enclosure supports straightforward panel mounting, wiring, and commissioning in machine builds, conveyors, or process lines without requiring special transformers or rearrangements of existing controls.
The module provides PN 0.55 kW with IN 1.8 A, designed for 47.5–63 Hz operation. It delivers controlled speed for 3-phase motors while maintaining energy efficiency via the IE2 class. Its IP20 protection and open enclosure support safe installation in industrial control panels, making it suitable for compact automation applications.
Absolutely. With 0.55 kW output and 1.8 A nominal current, the ACS380 module is well-suited for small conveyors, pumps, fans, and similar load profiles. The device supports reliable speed control, robust resistance to motor transients, and easy integration with existing PLCs or HMI interfaces in standard automation lines.
The module offers IP20 protection and open-type enclosure suitable for controlled panel environments. While CE labeling specifics aren’t listed here, the IP rating and IEC-based efficiency alignment (IE2) provide a clear baseline for safe operation and energy-efficient performance in industrial settings.
The product is stocked at multiple warehouses (CNIAB001EXPU, WMSACNURMQ, WMSACNGZH1, CSC, CSB) with a stated 0 day lead time, enabling rapid delivery and quick project ramp-ups. Minimum order quantity is 1 piece, and the product is ready for fast deployment in ongoing maintenance or new builds.
