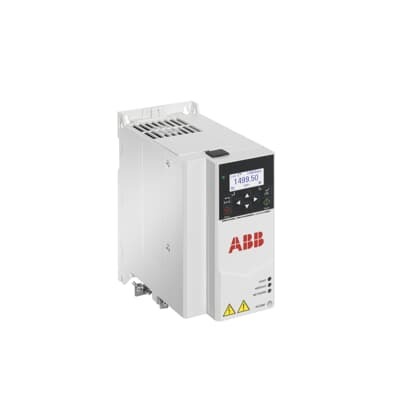

ABB 3ABD00057897 Frequency Converter - IP20 IE2
Part Number: 3ABD00057897
Quick Summary
ABB 3ABD00057897 Frequency Converter powers motor speed control on LV AC machinery for conveyors, pumps, and processing lines. This compact drive module helps engineers integrate precise torque and speed management without complex wiring. It addresses common pain points such as panel space constraints, spare parts availability, and long commissioning times. Designed for three-phase 380–480 V systems and open-type enclosures, it supports IP20 protection and IE2 efficiency to meet modern automation standards. By adopting this ABB drive, manufacturers can reduce energy waste, improve line uptime, and streamline procurement through global stocking at multiple warehouses. Its modular design also simplifies replacement, spare-parts planning, and serviceability across diverse industrial environments.
Product Information
Extended Description
3ABD00057897 ABB: LV AC machinery drive module, IEC: Pn 5.5 kW, 12.6 A (ACS380-040C-12A6-4+K495+L515+L535)
Configuration Only
No
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | WMSACNGZH1 | CSC | CSB
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS380-040C-12A6-4+K495+L515+L535 PN: 5.5kW, IN: 12.6A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
2 kg
Product Net Depth / Length
176 mm
Product Net Height
223 mm
Product Net Width
95 mm
Package Level 1 Depth / Length
280 mm
Package Level 1 Height
270 mm
Package Level 1 Width
170 mm
Package Level 1 Units
0 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R2
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Module
Output Current, Normal Use (In)
12.6 A
Output Current, Light-Overload Use (ILD)
12.0 A
Output Current, Heavy-Duty Use (IHD)
9.4 A
Output Power, Normal Use (Pn)
5.5 kW
Output Power, Light-Overload Use (PLD)
5.5 kW
Output Power, Heavy-Duty Use (PHD)
4.0 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
FREQUENCY CONVERTER
High-performance power stage provides PN 5.5 kW with 12.6 A continuous output. This combination delivers reliable torque for medium-sized three-phase motors while keeping the drive footprint compact, reducing cabinet depth and wiring complexity. In packaging lines, conveyors, and pumps, that compact footprint accelerates installation and minimizes panel rework. Three-phase input 380–480 V and 47.5–63 Hz capability ensures compatibility with common industrial power networks. The result is fewer custom transformers or adapters, faster start-up, and fewer field issues during commissioning. This is particularly advantageous in facilities migrating legacy equipment to modern frequency control with minimal downtime. IP20 protection and open-type enclosure offer robust electrical safety while preserving accessibility for maintenance and cooling. Mounting as a module simplifies retrofits and upgrades in existing frames, and the open design supports flexible cable routing and quick replacement in busy manufacturing sites. IE2 efficiency aligns with energy-reduction goals and utility incentives, helping lower operating costs over the motor's lifetime. The module also ships from multiple warehouses (WMSACNURMQ, WMSACNGZH1, CSC, CSB), enabling fast replenishment and reduced maintenance lead times. Combined with 1-piece minimum order, procurement is straightforward for repetitive deployments. Common objections about drive integration are addressed by built-in protection, standard wiring schemes, and ABB ecosystem compatibility. The result is improved uptime, simpler spare-parts planning, and clearer maintenance schedules for engineers handling automation projects in process industries. Diagnostics and remote monitoring: The drive module provides straightforward fault codes and status indicators that simplify troubleshooting within the control cabinet. This capability lowers mean time to repair and supports shift- or plant-level data collection for performance analytics and maintenance planning. Installation and compatibility: It is designed to integrate with ABB and compatible third-party control architectures through standard PLC interfaces and wiring schemes. The module mounting approach and open-type enclosure enable rapid retrofits, minimal panel disruption, and predictable commissioning timelines across plant sites.
