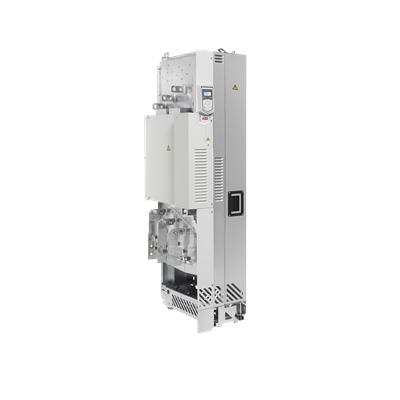

ABB 3ABD00057990-D Frequency Converter - 315 kW IE2
Part Number: 3ABD00057990-D
Quick Summary
ABB 3ABD00057990-D Frequency Converter delivers precise motor control for 315 kW drives in heavy-industrial applications. Engineers often struggle to source reliable, high-power drives that fit standard 380-480V systems with reasonable lead times. Key capabilities include IP00 protection with an open-type enclosure, and IE2 efficiency, which together translate to predictable performance and lower energy costs. This drive module supports streamlined procurement and ongoing maintenance, delivering value through faster installation, better uptime, and scalable automation for production lines.
Product Information
Extended Description
3ABD00057990-D ABB: ACS530-04-585A-4+N7569+B051+P974 PN: 315kW, IN: 585A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | WMSACNGZH1 | CSC
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-04-585A-4+N7569+B051+P974 PN: 315kW, IN: 585A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
161 kg
Product Net Depth / Length
529 mm
Product Net Height
1462 mm
Product Net Width
350 mm
Package Level 1 Depth / Length
2050 mm
Package Level 1 Height
500 mm
Package Level 1 Width
645 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP00
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R10
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Module
Output Current, Normal Use (In)
585 A
Output Current, Light-Overload Use (ILD)
575 A
Output Power, Normal Use (Pn)
315 kW
Output Power, Light-Overload Use (PLD)
315 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature: High-power drive capability (315 kW, 585 A) provides robust motor control for demanding loads. Business Impact: Enables reliable operation of pumps, fans, and heavy conveyors while reducing mechanical stress and torque variations. Application: Suitable for large-scale pumping systems and process equipment where consistent torque is critical. Feature: 3-phase, 380-480 V input compatibility. Business Impact: Simplifies integration with common industrial power infrastructure, reducing wiring complexity and installation time. Application: Retrofit projects and new builds across manufacturing lines that operate on standard plant power. Feature: IE2 efficiency rating. Business Impact: Lowers energy consumption and running costs over the life of the drive, improving overall process economics. Application: Continuous-duty applications with long runtimes such as HVAC fans and process motors. Feature: Open-type enclosure with IP00 protection. Business Impact: Facilitates maintenance and modular upgrades, enabling faster service interventions and easier cooling management. Application: Open machine environments where quick access to electronics reduces downtime. Feature: Ready availability and short lead time (14 days) with stock in multiple warehouses. Business Impact: Improves spare-part strategy and uptime by avoiding extended outages. Application: Critical manufacturing lines and distributed plants that rely on rapid replenishment. Feature: 3-phase synchronous operation and 585 A nominal output current. Business Impact: Delivers precise speed and torque control for dynamic loads, improving process stability. Application: Printing, machining centers, and packaging lines requiring tight motor performance.
Get a Quick Quote for a ABB 3ABD00057990-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00057990-D?
Enquire Now
FAQs
Yes. The unit supports 380-480 V three-phase input, simplifying integration with standard plant electrical infrastructure and minimizing rewiring when upgrading legacy drives.
The drive provides 315 kW of output power with a nominal output current of 585 A, enabling strong acceleration and precise motor control for heavy-duty applications.
It’s well-suited for pumps, fans, conveyors, and other heavy-muilding equipment requiring reliable speed control and energy-efficient operation, particularly in manufacturing and packaging lines.
The frequency converter features IE2 efficiency and an IP00 open-type enclosure, providing essential protection while enabling accessible maintenance and cooling. The 3-phase design also aligns with common industrial standards.
Stock is available at multiple warehouses with a typical lead time of 14 days, improving uptime planning. The unit’s modular design also supports straightforward installation, diagnostics, and spare-part replacements.
