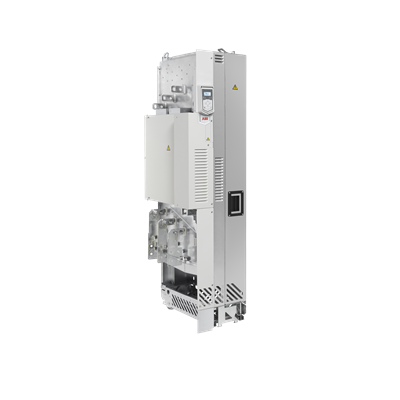

ABB ACS530-04-650A-4+N7569+B051+P974 - Frequency Converter IE2
Part Number: 3ABD00057991-D
Quick Summary
ABB ACS530-04-650A-4+N7569+B051+P974 is a high-performance frequency converter designed for open-type motor control in industrial drive applications. Engineers often struggle with downtime, energy waste, and integration friction when upgrading legacy drives. This model delivers robust protection with IP00, an Open Type enclosure, and IE2 efficiency, aligned with 3-phase input of 380-480 V. By enabling seamless motor control for ABB or third-party systems, it helps reduce wiring complexity and startup risk while supporting lower operating costs and faster project realization.
Product Information
Extended Description
3ABD00057991-D ABB: ACS530-04-650A-4+N7569+B051+P974 PN: 355kW, IN: 650A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | WMSACNGZH1 | CSC
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-04-650A-4+N7569+B051+P974 PN: 355kW, IN: 650A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
161 kg
Product Net Depth / Length
529 mm
Product Net Height
1462 mm
Product Net Width
350 mm
Package Level 1 Depth / Length
2050 mm
Package Level 1 Height
500 mm
Package Level 1 Width
645 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP00
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R10
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Module
Output Current, Normal Use (In)
650 A
Output Current, Light-Overload Use (ILD)
634 A
Output Power, Normal Use (Pn)
355 kW
Output Power, Light-Overload Use (PLD)
355 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature: 3-phase input 380-480 V with 47.5-63 Hz operation. Business Impact: Enables direct compatibility with common plant electrical distributions, reducing installation time and panel modifications. Application: Ideal for retrofits in conveyors, pumps, and fans where power is standard at 380-480 V. Feature: Output 355 kW and 650 A continuous current. Business Impact: Delivers substantial torque and reliable dynamic response for high-load applications, minimizing motor wear and unplanned downtime. Application: Heavy-duty rolling mills, extruders, and process pumps benefit from precise speed control. Feature: IE2 efficiency rating. Business Impact: Lowers energy consumption and heat generation, reducing cooling load and running costs over the lifecycle. Application: Continuous-process drives and energy-sensitive manufacturing lines. Feature: Open Type enclosure with IP00 protection. Business Impact: Simplifies installation inside modular control cabinets and machine frames without complex sealing, improving serviceability. Application: Modular machine builders and retrofit projects where open access is preferred. Feature: Lead Time and stock availability. Business Impact: 14-day lead time with stock at multiple warehouses accelerates procurement and project schedules. Application: Capital projects and aftermarket replacements where timely delivery matters. Feature: Warranty and return policy. Business Impact: Clear warranty terms reduce risk for uptime guarantees and support planning. Application: Maintenance planning and service contracts across plants.
Get a Quick Quote for a ABB 3ABD00057991-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00057991-D?
Enquire Now
FAQs
Yes. The unit supports 380-480 V three-phase input, 47.5-63 Hz operation, and an Open Type enclosure (IP00), making it suitable for standard industrial control panels and retrofits without major electrical rewiring. Verify panel clearance, cooling, and wiring torques per ABB installation guidelines for optimal performance.
The drive delivers 355 kW of nominal output power with a continuous output current of 650 A (I n). It operates on 380-480 V three-phase supply and supports a frequency range of 47.5 to 63 Hz, aligning with standard industrial motor loads and demanding process control needs.
Yes. The 355 kW rating and 650 A capability provide ample torque and dynamic response for high-demand conveyors and pump trains. The IE2 efficiency helps reduce energy use in continuous-duty applications, while the Open Type enclosure facilitates integration into existing plant layouts and modular installations.
ACS530 features IP00 protection with an Open Type enclosure, designed for modular installation in non-sealed environments. It is built to support standard IEC motor-drive expectations and operates within a 380-480 V three-phase window, making it suitable for general industrial automation applications.
Lead time is 14 days, and stock is available at multiple warehouses (CSB | WMSACNGZH1 | CSC). This reduces project delays and accelerates time-to-value. Combined with IE2 efficiency and robust 355 kW performance, the drive offers predictable maintenance planning and favorable total cost of ownership for industrial automation projects.
