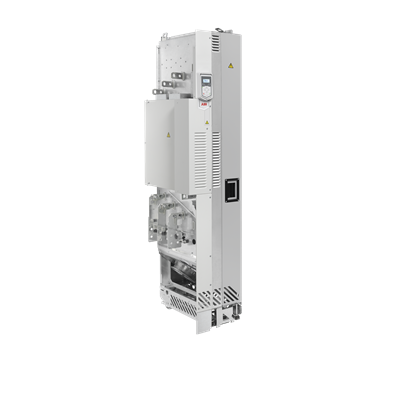

ABB ACS530-04-725A-4+N7569+B051+P974 Frequency Converter - IE2
Part Number: 3ABD00057992-D
Quick Summary
ABB ACS530-04-725A-4+N7569+B051+P974 is a high-efficiency frequency converter for precise motor control in heavy-duty drives. It helps operations optimize throughput while reducing energy use and motor wear. This drive module delivers 400 kW at 725 A with a 380–480 V input, featuring IE2 efficiency and an open-type IP00 enclosure to fit flexible cabinet layouts. With a 14-day lead time and broad warehouse availability, it supports project timelines and rapid deployment. In modern automation, such a module complements ABB and third-party control architectures, enabling scalable, reliable performance across manufacturing lines and process plants.
Product Information
Extended Description
3ABD00057992-D ABB: ACS530-04-725A-4+N7569+B051+P974 PN: 400kW, IN: 725A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | WMSACNGZH1 | CSC
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-04-725A-4+N7569+B051+P974 PN: 400kW, IN: 725A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
199 kg
Product Net Depth / Length
529 mm
Product Net Height
1662 mm
Product Net Width
350 mm
Package Level 1 Depth / Length
2050 mm
Package Level 1 Height
500 mm
Package Level 1 Width
645 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP00
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R11
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Module
Output Current, Normal Use (In)
725 A
Output Current, Light-Overload Use (ILD)
715 A
Output Power, Normal Use (Pn)
400 kW
Output Power, Light-Overload Use (PLD)
400 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature → Business Impact → Application: High power rating (400 kW) and IN 725 A in a 380–480 V three-phase system enable robust starting torque and load handling for large pumps and extrusion lines, reducing motor stress and downtime. This translates to improved process stability and lower maintenance costs in continuous operations. Feature → Business Impact → Application: IE2 efficiency improves energy consumption by reducing I2R losses, delivering measurable operating cost savings in conveyor systems and fans where continuous duty is common. Feature → Business Impact → Application: Open Type enclosure (IP00) provides flexible integration into control cabinets, enabling compact panel design and easier thermal management in packaging equipment. Feature → Business Impact → Application: Module mounting simplifies installation, service, and future upgrades, cutting commissioning time and enabling scalable automation in processing plants. Feature → Business Impact → Application: 14-day lead time with stock at multiple warehouses minimizes procurement risk for capital projects and factory upgrades across industrial facilities. Feature → Business Impact → Application: 3-phase 47.5–63 Hz capability supports varied plant frequencies, ensuring reliable operation in climate-controlled manufacturing lines and water treatment applications.
Get a Quick Quote for a ABB 3ABD00057992-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00057992-D?
Enquire Now
FAQs
This model is a 3-phase drive module designed for 380–480 V systems, suitable for heavy-load motors used in pumps, fans, and conveyors. It integrates with standard ABB control architectures and is mounted in open-type panel volumes, often within existing motor control centers. Ensure cabinet space accommodates its IP00 open enclosure and allow for proper cooling and wiring access.
Key specs include PN: 400 kW, IN: 725 A, input voltage 380–480 V, three-phase operation, and IE2 efficiency. It supports a frequency range of 47.5–63 Hz and provides reliable motor control for high-duty applications. These specs translate to strong torque capability with energy-efficient operation in continuous-duty processes.
Yes. The drive is engineered for heavy-load motors typical of pumps and fans in manufacturing and process industries. Its high power rating and precise speed control help maintain flow and pressure, while energy efficiency and smooth ramping reduce mechanical stress and maintenance requirements, improving overall uptime and process stability.
The unit features an open-type enclosure with IP00 protection and is designed for 3-phase operation at 380–480 V, supporting flexible cabinet integration. It emphasizes energy efficiency (IE2) and robust performance in industrial environments, with the option to integrate into standard NEMA/open-type control panels.
Stock is available across multiple warehouses with a 14-day lead time, reducing procurement risk for projects. The 400 kW drive minimizes downtime and energy costs through efficient operation and reliable performance, delivering favorable TCO for capital-intensive automation upgrades and new line installations.
