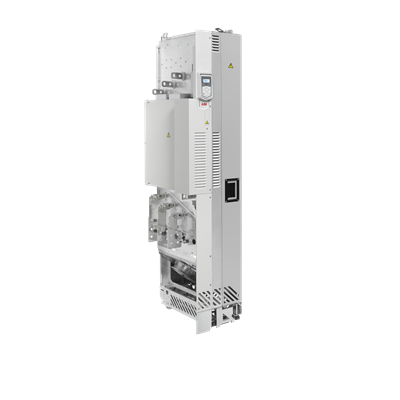

ABB ACS530-04-820A-4+N7569+B051+P974 Drive - 450kW
Part Number: 3ABD00057993-D
Quick Summary
ABB ACS530-04-820A-4+N7569+B051+P974 Drive is a high‑performance three‑phase frequency converter for motor control up to 450 kW and 820 A. It is well suited for heavy‑duty applications such as pumps, conveyors, and processing lines where precise speed control and reliable operation are critical. The unit features an open‑type enclosure with IP00 protection and supports a 380–480 V input across 47.5–63 Hz, enabling global deployment. With IE2 efficiency, it reduces energy consumption in continuous operation. Lead times are typically 14 days, and stock at multiple warehouses help minimize downtime during upgrades or expansions, delivering faster return on investment and easier procurement for engineering projects.
Product Information
Extended Description
3ABD00057993-D ABB: ACS530-04-820A-4+N7569+B051+P974 PN: 450kW, IN: 820A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | WMSACNGZH1 | CSC
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-04-820A-4+N7569+B051+P974 PN: 450kW, IN: 820A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
199 kg
Product Net Depth / Length
529 mm
Product Net Height
1662 mm
Product Net Width
350 mm
Package Level 1 Depth / Length
2050 mm
Package Level 1 Height
500 mm
Package Level 1 Width
645 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP00
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R11
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Module
Output Current, Normal Use (In)
820 A
Output Current, Light-Overload Use (ILD)
810 A
Output Power, Normal Use (Pn)
450 kW
Output Power, Light-Overload Use (PLD)
450 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature: High-power drive module delivers PN 450 kW with IN 820 A at 3-phase 380–480 V input. Business Impact: Enables precise torque and speed control for large motors, reducing process variation and improving line throughput. Application: Suitable for pumps, fans, conveyors, and processing lines in steel, chemical, and water treatment facilities. Feature: IE2 efficiency rating and advanced vector control optimize energy use. Business Impact: Lower energy consumption and operating cost, contributing to faster payback on motor drives projects. Application: Continuous-duty conveyors and centrifuge lines where energy savings matter. Feature: Open-type IP00 enclosure and modular mounting simplify installation and serviceability. Business Impact: Faster commissioning, easier maintenance, and reduced downtime during upgrades. Application: Retrofit projects in existing plant rooms with limited enclosure options. Feature: 380–480 V input and 47.5–63 Hz support enable global deployment. Business Impact: One drive supports multiple regional power grids, reducing spare parts and training requirements. Application: Global manufacturing facilities with varied electrical standards. Feature: Stocked at multiple warehouses with 14‑day lead times. Business Impact: Shorter procurement cycles and minimized production downtime. Application: Capital projects and maintenance planning where reliable delivery is crucial. Feature: IE2 efficiency and open-drive design align with modern sustainability goals. Business Impact: Lower total cost of ownership and improved KPI for energy intensity. Application: Green-field installations and retrofit upgrades in process industries.
Get a Quick Quote for a ABB 3ABD00057993-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00057993-D?
Enquire Now
FAQs
Yes. The ACS530-04-820A-4+N7569+B051+P974 supports a 380–480 V three-phase input and a 47.5–63 Hz range, with standard three‑phase wiring and module mounting for straightforward integration into common industrial networks.
The drive delivers 820 A nominal output current (I_n) and 450 kW (P_n) of output power in normal use. It also provides I_LD of 810 A for light‑overload conditions, suitable for demanding load profiles.
Absolutely. With 450 kW and 820 A, the ACS530 supports large pumps, conveyors, and processing lines, delivering precise speed control, smooth start‑stop behavior, and energy savings essential for continuous industrial operations.
The unit features IE2 energy efficiency and an Open Type IP00 enclosure, designed for flexible installation in industrial environments. If CE marking or additional regional certifications are required, please confirm with sales for the latest qualification details and documentation.
Lead time is typically 14 days with stock available at multiple warehouses (CSB | WMSACNGZH1 | CSC). This reduces downtime during upgrades and simplifies procurement for ongoing operations and maintenance projects.
