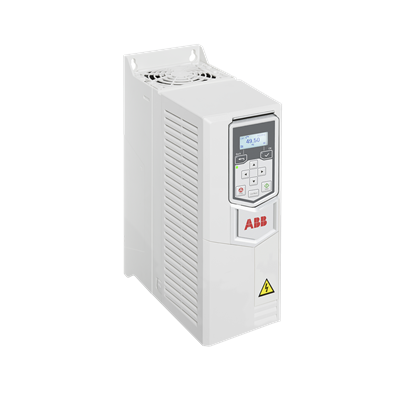

ABB 3ABD00058105-D Motors & Drives - IP20 Enclosure
Part Number: 3ABD00058105-D
Quick Summary
ABB 3ABD00058105-D is a compact ACS530-01 drive that precisely controls compressors, conveyors, pumps, and fans. Engineers often struggle with lengthy setup, complex wiring, and downtime during maintenance, which erodes uptime and increases project risk. Key protections include IP20 enclosure, CE-compliant design, and a rugged industrial build that withstands harsh environments. For value, the drive shortens commissioning, reduces hardware requirements, and frees up panel space while delivering reliable control for variable torque applications. Originally designed for light industries—food and beverage, plastic, textile, material handling, and agriculture—it translates to faster time-to-market and lower total cost of ownership.
Product Information
Extended Description
3ABD00058105-D ABB: The ACS530-01 can control your compressors, conveyors, pumps, centrifuges, fans, and many other variable and simple constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The basic control panel enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. The wall-mounted ACS530-01 comes in an IP20 enclosure as standard.
Feature → Business Impact → Application: Built-in control panel enables fast setup and commissioning, reducing time-to-operational on new lines and minimizing on-site wiring efforts. This translates to quicker project kickoffs and reduced engineering overhead in food & beverage, plastics, and material handling applications. Feature → Application: All essential features are built-in, eliminating the need for additional hardware; this lowers upfront capital expenditure and simplifies spare parts management for conveyors and pumps in SMEs and large plants alike. Feature → Application: IP20 wall-mount enclosure delivers rugged protection in production floors and control rooms, enabling reliable operation in busy environments such as packaging lines and textile mills while keeping maintenance accessible. Feature → Application: Wide compatibility with compressors, centrifuges, fans, and other variable or constant torque loads supports flexible line design and future upgrades in mixed-automation facilities. Feature → Application: Integrated diagnostics and straightforward parameter tuning address common objections about integration time and training, improving onboarding for new operators and maintenance staff. Feature → Application: Compact form factor and optimized panel footprint reduce cabinet space, enabling multi-drive banks in automation cells and improving overall plant layout efficiency.
Get a Quick Quote for a ABB 3ABD00058105-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058105-D?
Enquire Now
FAQs
The 3ABD00058105-D drives are designed for wall-mounted IP20 enclosures and come with a built-in control panel to simplify commissioning. Begin with verifying supply voltage and motor ratings, mount the unit in a suitable panel area, connect motor and bus wiring per the ACS530-01 guidelines, and use the built-in setup wizard to configure basic motor parameters. This minimizes external hardware and reduces installation time while ensuring a clean, serviceable panel layout.
The drive provides 3 kW of output power and requires an input current of approximately 7.2 A. It is intended for light to moderate torque applications, such as fans, pumps, conveyors, and compressors. While configuring, ensure motor nameplate compatibility, proper cable sizing, and correct protection settings to maximize efficiency and protect against overcurrent and short circuits.
Yes. The ACS530-01 drive is suitable for food & beverage, plastic, textile, material handling, and agriculture applications. The IP20, wall-mounted enclosure provides a rugged installation for production floors, and the built-in features support fast commissioning, reliable speed control, and reduced maintenance—essential for continuous-process lines and packaging operations.
The drive comes with an IP20 enclosure providing robust protection in typical industrial environments. The design supports standard compliance practices and is configured to simplify integration with existing safety and control systems, helping meet regulatory expectations for electrical equipment in manufacturing environments.
ROI is driven by reduced hardware needs due to built-in features, shorter commissioning times from the integrated control panel, and simplified maintenance with diagnostics. In line-started and variable-torque applications like conveyors and pumps, this translates to lower upfront costs, improved uptime, and faster time-to-market for automation projects.
