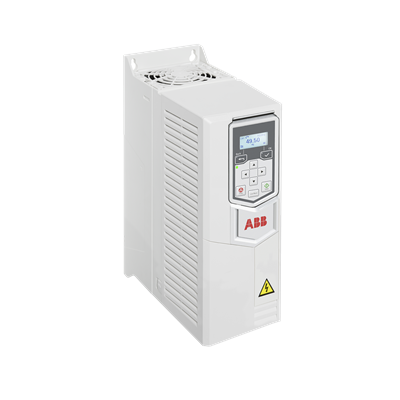

ABB ACS530-01-09A5-4+N7569+P974 Frequency Converter - IE2
Part Number: 3ABD00058115-D
Quick Summary
ABB ACS530-01-09A5-4+N7569+P974 is a compact frequency converter that controls 3-phase motors up to 4 kW in industrial drives. It helps engineers balance performance with energy costs while simplifying integration into existing panels and machines. This unit features IP20 protection, IE2 efficiency, and an open-type enclosure designed for straightforward mounting in wall-mounted panels. With a 380-480 V input range and a broad 47.5–63 Hz operating window, it accommodates common plant electrical infrastructure and variable-speed applications. A 14-day lead time and broad warehouse coverage support faster project timelines, while its efficiency gains and smooth torque control translate to reduced wear, lower energy consumption, and improved process reliability in conveyors, pumps, and fans.
Product Information
Extended Description
3ABD00058115-D ABB: ACS530-01-09A5-4+N7569+P974 PN: 4kW, IN: 9.4A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | CSC | WMSACNGZH1 | WMSACNURMQ
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-09A5-4+N7569+P974 PN: 4kW, IN: 9.4A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
4 kg
Product Net Depth / Length
223 mm
Product Net Height
331 mm
Product Net Width
125 mm
Package Level 1 Depth / Length
525 mm
Package Level 1 Height
425 mm
Package Level 1 Width
225 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R1
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
9.4 A
Output Current, Light-Overload Use (ILD)
8.9 A
Output Power, Normal Use (Pn)
4 kW
Output Power, Light-Overload Use (PLD)
4 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature → Business Impact → Application: 4 kW output PN and IN 9.4 A enable precise sizing for mid-range motors, delivering smooth startup and torque control that reduce mechanical wear and energy waste in conveyors, pumps, and fans. This directly supports higher overall equipment effectiveness (OEE) and lowers maintenance costs in automated lines. Feature → 380-480 V three-phase input with a wide 47.5–63 Hz operating range provides seamless integration into European and North American plants without costly transformers, enabling quick retrofits and minimal downtime during upgrades. Feature → IP20 protection in an open-type, wall-mounted enclosure simplifies installation, improves service access, and reduces cabinet depth, making it ideal for compact control panels and distributed motor locations. Feature → IE2 efficiency lowers energy consumption over the motor lifecycle, delivering measurable cost savings in continuous-duty applications such as pumps and fans. Feature → Frame Size R1 and a compact footprint support easy mounting in standard enclosures, while the 4 kg net weight aids handling during installation. Feature → 14-day lead time and multiple warehouse stock enable fast procurement for maintenance events or project kick-offs, reducing project risk. The included fundamentals align with ABB's reliability standards and support fast adoption in industrial automation contexts.
Get a Quick Quote for a ABB 3ABD00058115-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058115-D?
Enquire Now
FAQs
The ACS530-01-09A5-4+N7569+P974 is designed for three-phase plants with 380–480 V input and supports a wide operating frequency of 47.5–63 Hz. It is suitable for wall-mounted installations in standard industrial environments and can be integrated with common conveyors, pumps, and fans without requiring a transformer in most setups.
Key specs include 4 kW output power (PN), nominal input current of 9.4 A, three-phase operation, IP20 protection, IE2 efficiency, frame size R1, and 380–480 V input. The frequency range is 47.5–63 Hz, making it capable of smooth speed control for moderate-load motor applications.
Yes. The 4 kW drive provides reliable speed control, smooth start/stop, and energy efficiency improvements ideal for conveyors, pumps, and fans. Its open-type IP20 enclosure and wall-mount design simplify integration into compact control panels and distributed motor locations common in automated lines.
Key protections include IP20 enclosure rating and 3-phase open-type design. The unit supports IE2 efficiency, which aligns with common energy directives, and it is compatible with 380–480 V three-phase systems for wide international adoption.
Assess the energy savings from IE2 efficiency over the motor’s life, the reduced wear from smooth torque control, and the faster procurement with a 14-day lead time. The open-type, wall-mounted design also lowers installation labor and cabinet costs, contributing to a shorter payback period.
