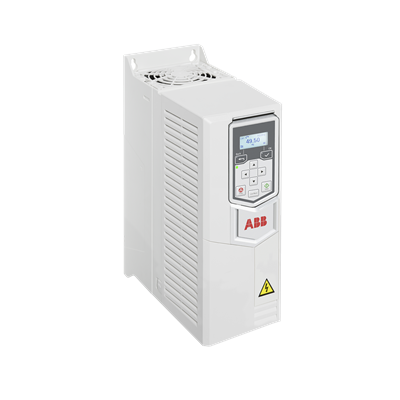

ABB ACS530-01-12A7-4+N7569+P974 Frequency Converter - IE2
Part Number: 3ABD00058116-D
Quick Summary
ABB ACS530-01-12A7-4+N7569+P974 Frequency Converter is a compact 3-phase drive engineered to optimize 5.5 kW motor control in industrial automation, from conveyors to pumps. The challenge many engineers face is balancing energy efficiency with space, installation effort, and cross-system compatibility. This drive addresses that by supporting 380–480 V three-phase power with a robust IE2 efficiency profile and IP20 Open Type enclosure, all within a wall-mounted footprint. It is designed for easy retrofit in open-panel environments and can be stocked across multiple warehouses for faster procurement. With a 14-day lead time and proven reliability, this ABB drive helps reduce energy costs, simplify commissioning, and improve process stability for manufacturing operations.
Product Information
Extended Description
3ABD00058116-D ABB: ACS530-01-12A7-4+N7569+P974 PN: 5.5kW, IN: 12.6A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | CSC | WMSACNGZH1 | WMSACNURMQ
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-12A7-4+N7569+P974 PN: 5.5kW, IN: 12.6A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
4 kg
Product Net Depth / Length
223 mm
Product Net Height
331 mm
Product Net Width
125 mm
Package Level 1 Depth / Length
525 mm
Package Level 1 Height
425 mm
Package Level 1 Width
225 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R1
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
12.6 A
Output Current, Light-Overload Use (ILD)
12 A
Output Power, Normal Use (Pn)
5.5 kW
Output Power, Light-Overload Use (PLD)
5.5 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature → Business Impact → Application: The ACS530-01-12A7-4+N7569+P974 Frequency Converter delivers 5.5 kW of output power from a 380–480 V three-phase supply. This enables precise motor control with improved energy efficiency, reducing operating costs in fans, pumps, and conveyors. Application: Ideal for compact machine rooms where space is at a premium and reliable speed control is required. Feature → Business Impact → Application: IE2 efficiency rating translates to tangible energy savings over typical motor-driven loads, contributing to lower CO2 emissions and a favorable total cost of ownership. Application: Used in continuous process lines and material handling where long-running fans and pumps benefit from optimized torque and speed profiles. Feature → Business Impact → Application: IP20, Open Type, wall-mounted design simplifies installation and maintenance, enabling quick retrofits and compliant integration into existing panels. Application: Suitable for retrofit projects and new builds in open enclosures. Feature → Business Impact → Application: 3-phase input (380–480 V) ensures compatibility with standard industrial power networks, reducing the need for transformers or complex electrical rearrangements. Application: Used across automotive, packaging, and process industries. Feature → Business Impact → Application: 12.6 A continuous output current supports consistent performance under normal load conditions, enabling smooth start/stop sequences and reduced electrical stress. Application: Applies to motor-driven conveyors and mixing applications. Feature → Business Impact → Application: 14-day lead time and multi-warehouse stocking improve procurement resilience, minimizing downtime and speeding project schedules. Application: Critical for OEMs and maintenance teams pursuing lean spare parts strategies. Throughout these features, long-tail keywords such as ABB frequency converter, ACS530 drive module, 3-phase motor drive, IE2 efficiency drive, wall-mounted frequency converter, open-type drive, and 380-480 V drive are integrated to reflect real-world search intent.
Get a Quick Quote for a ABB 3ABD00058116-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058116-D?
Enquire Now
FAQs
Yes. The ACS530-01-12A7-4+N7569+P974 is designed for 380–480 V three-phase power and features a wall-mounted, Open Type enclosure with IP20 protection, simplifying installation in compact panels and retrofit projects.
The drive accepts 380–480 V 3-phase input, provides an output current of 12.6 A, and delivers 5.5 kW of output power with IE2 efficiency. Frequency range is 47.5–63 Hz, suitable for standard industrial motor control.
Best suited for pumps, fans, and conveyors in manufacturing and processing environments where space is limited and precise speed control improves process stability and energy use. Its compact footprint supports retrofit into existing equipment without major electrical changes.
Key recognitions include IE2 efficiency and IP20 protection with Open Type enclosure. The product is designed to meet typical industrial safety and performance expectations for commercial automation projects.
Stock is available across multiple warehouses with a 14-day lead time. The product comes with a warranty policy; returns are subject to warranty terms. The drive’s energy savings and reliable control contribute to a favorable return on investment in continuous operation scenarios.
