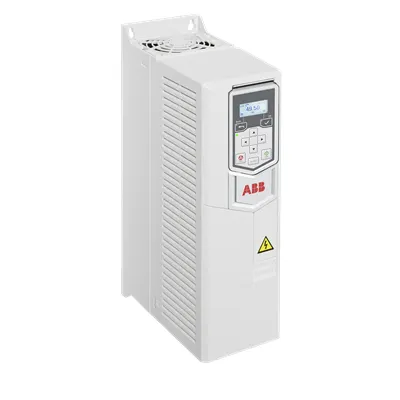

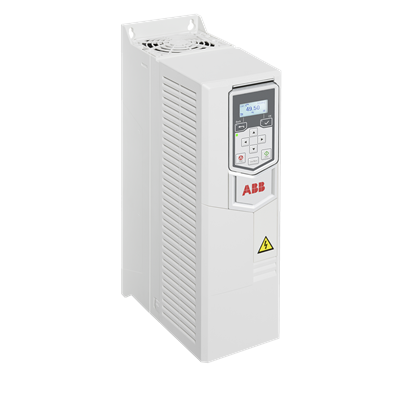

ABB ACS530-01-026A-4 Frequency Converter - IP20 IE2
Part Number: 3ABD00058118-D
Quick Summary
ABB ACS530-01-026A-4 Frequency Converter is engineered to drive 11 kW, 3-phase motors in demanding industrial automation and machine-building environments. This drive addresses common pain points such as mismatched motor control, lengthy procurement cycles, and integration challenges by offering a compact, wall-mounted solution that fits standard 380–480 V systems. With IP20 protection and IE2 efficiency, it aligns with modern safety and energy targets while remaining straightforward to install and commission. Leverage the next-best-fit for reliable production lines, reduced energy waste, and faster project delivery by selecting a drive that balances performance with total cost of ownership.
Product Information
Extended Description
3ABD00058118-D ABB: ACS530-01-026A-4+N7569+P974 PN: 11kW, IN: 25A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | CSB | CSC | WMSACNGZH1
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-026A-4+N7569+P974 PN: 11kW, IN: 25A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
6 kg
Product Net Depth / Length
229 mm
Product Net Height
432 mm
Product Net Width
125 mm
Package Level 1 Depth / Length
425 mm
Package Level 1 Height
620 mm
Package Level 1 Width
225 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R2
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
25 A
Output Current, Light-Overload Use (ILD)
23.8 A
Output Power, Normal Use (Pn)
11 kW
Output Power, Light-Overload Use (PLD)
11 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature → Business Impact → Application: The 11 kW drive delivers precise speed control for three-phase motors, enabling smoother conveyors and pumps while reducing mechanical wear and energy consumption in continuous operations. This translates to lower maintenance costs and improved process stability in material handling and packaging lines. Feature → Business Impact → Application: IP20 open-type enclosure with wall-mount capability simplifies installation in compact electrical rooms, enabling quicker commissioning and easier retrofits in existing ABB-driven automation ecosystems. Feature → Business Impact → Application: 380–480 V input compatibility plus a 47.5–63 Hz frequency range supports global manufacturing sites, delivering consistent performance across varying supply conditions and reducing the need for multiple drive variants. Feature → Business Impact → Application: IE2 efficiency rating provides tangible energy savings over long production cycles, supporting sustainability goals and lowering total electricity spend in batch processing and CNC tooling. Feature → Business Impact → Application: Stocked at multiple warehouses with a 14-day lead time improves supply resilience and reduces downtime for critical line upgrades or new line starts in automotive, food & beverage, and packaging sectors. Feature → Business Impact → Application: 1 piece minimum order and clear invoicing description streamline procurement workflows, enabling engineers to specify exact configurations without delays during project scoping and rollouts.
Get a Quick Quote for a ABB 3ABD00058118-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058118-D?
Enquire Now
FAQs
The drive supports three-phase input in the 380–480 V range with 47.5–63 Hz frequency control, making it suitable for common European and many international industrial power networks.
It provides an output power of 11 kW with a nominal output current of 25 A, designed for reliable control of 3-phase motors in conveyors, pumps, and machine tools.
IP20 protection suits indoor, dry environments; the open-type enclosure and wall-mount capability simplify installation, reduce enclosure footprint, and accelerate commissioning in compact control rooms.
Lead time is 14 days, with stock across multiple warehouses (WMSACNURMQ, CSB, CSC, WMSACNGZH1), enabling faster project starts and minimal downtime during upgrades.
Key characteristics include IP20 protection and IE2 efficiency. The device is designed for 3-phase 380–480 V operation and Open Type mounting, aligning with common industrial safety and energy-performance expectations.
