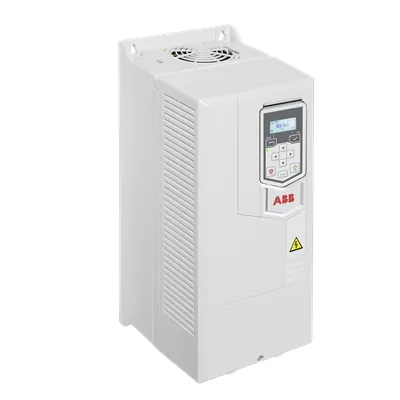

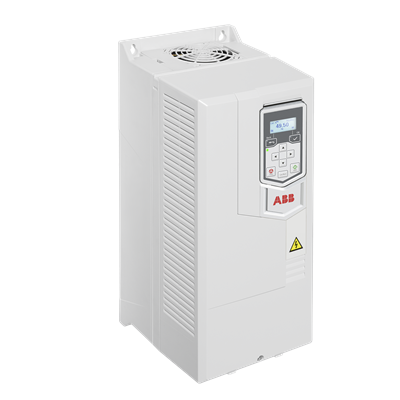

ABB ACS530-01-039A-4+N7569+P974 Frequency Converter - IE2
Part Number: 3ABD00058120-D
Quick Summary
ACS530-01-039A-4+N7569+P974 is ABB’s compact, three-phase frequency converter designed to optimize motor performance across a range of industrial applications such as pumps, fans, and conveyors. This drive helps engineers tame speed variation and reduce energy use without compromising process accuracy. For end users facing downtime, mismatched drives, or excessive harmonics, the ACS530 offers reliable control with straightforward setup and diagnostics. It is rated IE2 for efficiency, IP20 protection in an open-type enclosure, and supports a 380–480 V supply at 47.5–63 Hz, making installation simpler in mixed-site environments. Stocked at multiple warehouses with a short lead time, this model supports fast procurement and consistent parts availability, even in multi-site operations.
Product Information
Extended Description
3ABD00058120-D ABB: ACS530-01-039A-4+N7569+P974 PN: 18.5kW, IN: 39A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | CSC | WMSACNGZH1 | WMSACNURMQ
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-039A-4+N7569+P974 PN: 18.5kW, IN: 39A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
14.5 kg
Product Net Depth / Length
228 mm
Product Net Height
490 mm
Product Net Width
203 mm
Package Level 1 Depth / Length
610 mm
Package Level 1 Height
425 mm
Package Level 1 Width
290 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R3
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
38 A
Output Current, Light-Overload Use (ILD)
36.1 A
Output Power, Normal Use (Pn)
18.5 kW
Output Power, Light-Overload Use (PLD)
18.5 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
The ACS530-01-039A-4+N7569+P974 accepts a 380–480 V three-phase supply and operates across 47.5–63 Hz, delivering 18.5 kW (PN) with a nominal current of 39 A. This combination provides precise speed control while simplifying electrical design, reducing the need for multiple drives across mixed-voltage systems and enabling reliable process control in pumps, fans, conveyors, and machine tools. The IE2 efficiency rating translates to measurable energy savings during continuous operation, improving total cost of ownership and reducing cooling load in compact control panels. The IP20 protection in an Open Type enclosure with frame size R3 supports straightforward, wall-mounted installation in indoor environments, while standard diagnostics and an intuitive interface accelerate commissioning and maintenance. Stock availability at CSB, CSC, and other warehouses with a 14-day lead time enhances procurement reliability for multi-site projects. Compatibility with 1-piece minimum orders simplifies procurement planning for small-batch deployments and pilot runs, aiding repeatability across projects and sites. In practice, this drive reduces downtime and extends motor life by delivering smooth starts, reliable torque, and robust fault reporting within common industrial automation architectures.
