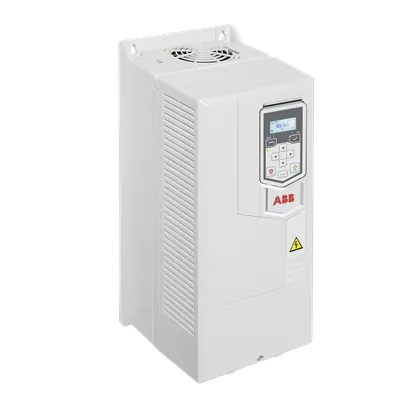

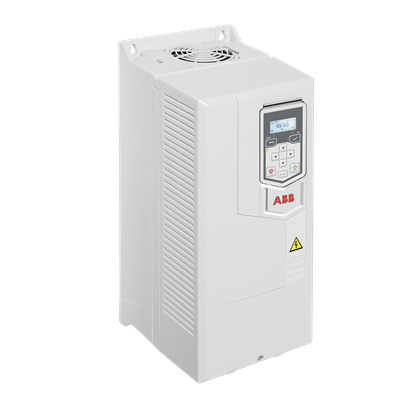

ABB 3ABD00058121-D Frequency Converter - 22 kW IE2 IP20
Part Number: 3ABD00058121-D
Quick Summary
ABB 3ABD00058121-D frequency converter powers precise 3-phase motor control in conveyors, pumps, fans, and processing lines. Designed for wall-mounted installation, it enables compact control panels and simplified wiring, reducing enclosure footprint and installation time. For engineers facing variable loads, harsh start/stop cycles, and rising energy costs, the unit delivers a dependable 22 kW output with 46 A nominal input across 380–480 V and 47.5–63 Hz. The drive features IP20 protection in an open-type enclosure, supporting safe maintenance and straightforward integration into existing machines. With IE2 efficiency, it helps lower energy consumption without compromising performance. Stocked at multiple warehouses with a 14-day lead time, it supports aggressive project schedules and lean procurement, delivering consistent supply for mid-market automation programs.
Product Information
Extended Description
3ABD00058121-D ABB: ACS530-01-046A-4+N7569+P974 PN: 22kW, IN: 46A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | CSC | WMSACNGZH1 | WMSACNURMQ
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-046A-4+N7569+P974 PN: 22kW, IN: 46A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
14.5 kg
Product Net Depth / Length
228 mm
Product Net Height
490 mm
Product Net Width
203 mm
Package Level 1 Depth / Length
610 mm
Package Level 1 Height
425 mm
Package Level 1 Width
290 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R3
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
45 A
Output Current, Light-Overload Use (ILD)
42.8 A
Output Power, Normal Use (Pn)
22 kW
Output Power, Light-Overload Use (PLD)
22 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature: 22 kW output with 46 A nominal input at 380-480 V. Business Impact: Enables reliable, high-torque start and precise speed control, reducing motor wear and energy waste. Application: ideal for conveyors, pumps, and fans in packaging lines and process environments. Feature: 47.5-63 Hz operational range. Business Impact: Supports global grid compatibility and smooth adaptation to variable-speed processes, improving product quality and thermal management. Application: process lines, mixers, and HVAC fans in mixed-load applications. Feature: IE2 efficiency rating. Business Impact: Lowers running costs and reduces cooling requirements, contributing to longer service life for drives and motors. Application: continuous-duty applications in manufacturing and packaging facilities. Feature: IP20 protection with Open Type enclosure. Business Impact: Safer maintenance and easier panel integration, enabling faster commissioning and serviceability. Application: wall-mounted installations in compact control cabinets. Feature: Stocked availability and lead times. Business Impact: Improves procurement reliability and project scheduling with 14-day lead time and multi-warehouse support. Application: industrial projects with tight timelines and just-in-time supply. Feature: Compatibility with 3-phase 380-480 V systems. Business Impact: Simplifies electrical design by eliminating extra transformers; reduces installation risk. Application: conveyors, pumps, and fans across packaging and process industries.
