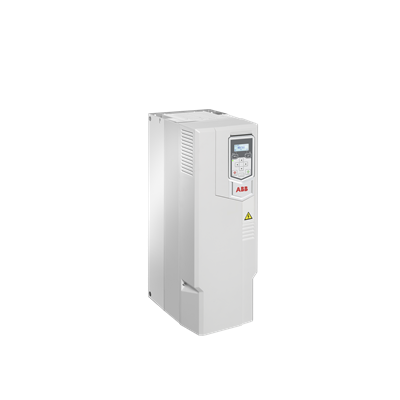

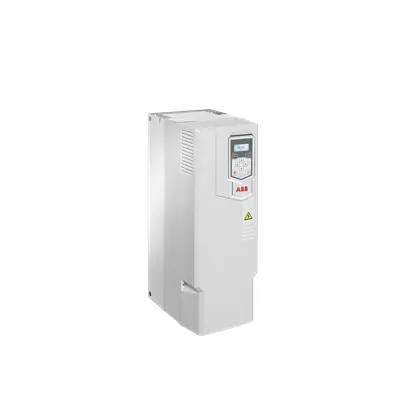

ABB 3ABD00058125-D Motors & Drives - IE2
Part Number: 3ABD00058125-D
Quick Summary
ABB 3ABD00058125-D frequency converter enables precise motor control for 3-phase drives in industrial automation. Designed for 55 kW applications, it simplifies startup sequences, reduces voltage sag, and improves process stability in demanding lines such as packaging, conveying, and pumping systems. This drive meets IP20 protection with an open-type enclosure, supports a 380-480 V input and a 47.5-63 Hz range, and delivers IE2 efficiency for energy-conscious facilities. With stock available across multiple warehouses and a 14-day lead time, procurement teams gain reliable uptime and predictable project schedules. In short, ABB’s frequency converter combines performance, installability, and total-cost-of-ownership advantages for engineers and maintenance teams.
Product Information
Extended Description
3ABD00058125-D ABB: ACS530-01-106A-4+N7569+P974 PN: 55kW, IN: 106A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | CSC | WMSACNGZH1 | WMSACNURMQ
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-106A-4+N7569+P974 PN: 55kW, IN: 106A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
26.5 kg
Product Net Depth / Length
295 mm
Product Net Height
596 mm
Product Net Width
203 mm
Package Level 1 Depth / Length
830 mm
Package Level 1 Height
510 mm
Package Level 1 Width
280 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R5
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
106 A
Output Current, Light-Overload Use (ILD)
100 A
Output Power, Normal Use (Pn)
55 kW
Output Power, Light-Overload Use (PLD)
55 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature → Business Impact → Application: The 55 kW output with a nominal 106 A current at a 380-480 V three-phase input allows direct integration with common plant power rails, reducing wiring complexity and enabling tighter control over motor torque. This translates to improved process stability and reduced energy waste in packaging lines, conveyors, and pumps. Feature → Business Impact → Application: IE2 efficiency class delivers measurable energy savings over the motor drive’s lifecycle, lowering operating costs and cooling load in continuous operation environments, especially in air handling, water pumping, and material handling systems. Feature → Business Impact → Application: IP20 protection in an open-type, wall-mounted enclosure simplifies installation in control cabinets and on factory walls, enabling compact layouts and safer access for service technicians in manufacturing floors and assembly lines. Feature → Business Impact → Application: 14-day lead time with stock at multiple warehouses (CSB, CSC, WMSACNGZH1, WMSACNURMQ) supports rapid project execution and faster downtime recovery for critical lines, including packaging equipment and bottling lines. Feature → Business Impact → Application: 26.5 kg weight and compact dimensions (295 mm L, 203 mm W, 596 mm H) facilitate handling, swappable installations, and space-efficient retrofits in constrained spaces, such as small control cabinets and CNC automation zones.
