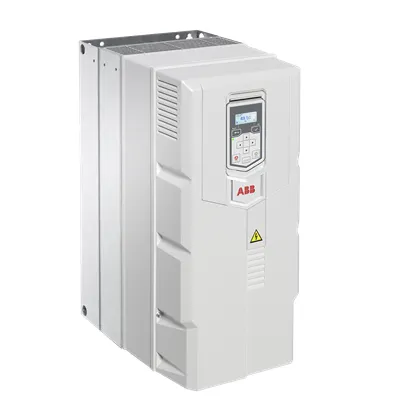

ABB 3ABD00058126-D Frequency Converter - IP20
Part Number: 3ABD00058126-D
Quick Summary
ABB 3ABD00058126-D frequency converter provides precise motor speed control for industrial automation applications. The drive helps optimize energy use, extend motor life, and reduce process variability across manufacturing lines. Key protections and standards include IP20 open-type enclosure, a 380–480 V three-phase input, and IE2 efficiency, which together support safe cabinet installation and compliant energy performance. This natively supports quick integration with standard motors up to 75 kW ( PN: 75 kW, IN: 145 A) and delivers reliable operation in wall-mounted configurations. With 14-day lead times and multiple stocking locations, you can minimize downtime and accelerate project timelines while maintaining procurement flexibility for global supply.
Product Information
Extended Description
3ABD00058126-D ABB: ACS530-01-145A-4+N7569+P974 PN: 75kW, IN: 145A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | CSC | WMSACNGZH1 | WMSACNURMQ
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-145A-4+N7569+P974 PN: 75kW, IN: 145A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
42.6 kg
Product Net Depth / Length
369 mm
Product Net Height
548 mm
Product Net Width
252 mm
Package Level 1 Depth / Length
850 mm
Package Level 1 Height
580 mm
Package Level 1 Width
310 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R6
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
145 A
Output Current, Light-Overload Use (ILD)
138 A
Output Power, Normal Use (Pn)
75 kW
Output Power, Light-Overload Use (PLD)
75 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
The drive’s 75 kW PN and 145 A IN specification translates to immediate compatibility with standard, high-torque motors, empowering conveyors and pumps in demanding applications. Energy optimization is enabled by IE2 efficiency, reducing running costs and improving ROI for continuous-duty equipment in packaging lines and material handling. Its IP20 open-type enclosure and 380-480 V three-phase input simplify cabinet integration and wiring, while the compact footprint (369 mm depth x 252 mm width x 548 mm height) and 42.6 kg weight ease installation in existing control panels. Wall-mounted mounting and a robust frame (R6) support OEM machine designs and serviceability, driving faster commissioning and predictable maintenance. Finally, rapid procurement from stocked warehouses (CSB, CSC, WMSACNGZH1, WMSACNURMQ) mitigates supply chain risk for global projects.
