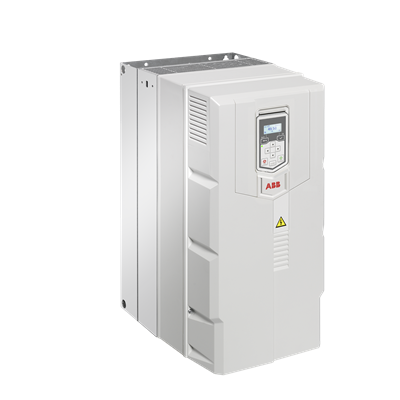

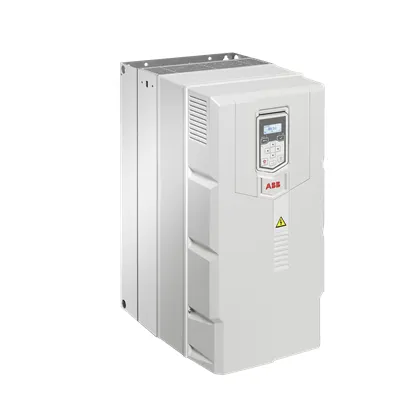

ABB ACS530-01-169A-4+N7569+P974 Freq Converter - IP20
Part Number: 3ABD00058127-D
Quick Summary
The ABB ACS530-01-169A-4+N7569+P974 Frequency Converter is a high-performance drive designed for 3-phase motors in industrial systems up to 90 kW. It accepts 380-480 V input and delivers up to 169 A at 90 kW, with a flexible frequency range of 47.5 to 63 Hz to suit a variety of process speeds. This open-type, wall-mounted drive is built for demanding manufacturing environments, offering IP20 protection and IE2 efficiency for reliable operation and energy savings. For procurement and maintenance teams, predictable availability matters: the unit is stocked at multiple warehouses with approximately 14 days lead time, and a straightforward warranty process. By combining precise motor control with robust ABB reliability, this drive reduces energy costs, enhances process stability, and supports lean project timelines.
Product Information
Extended Description
3ABD00058127-D ABB: ACS530-01-169A-4+N7569+P974 PN: 90kW, IN: 169A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | CSC | WMSACNGZH1 | WMSACNURMQ
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-169A-4+N7569+P974 PN: 90kW, IN: 169A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
49.6 kg
Product Net Depth / Length
370 mm
Product Net Height
600 mm
Product Net Width
284 mm
Package Level 1 Depth / Length
970 mm
Package Level 1 Height
600 mm
Package Level 1 Width
380 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R7
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
169 A
Output Current, Light-Overload Use (ILD)
161 A
Output Power, Normal Use (Pn)
90 kW
Output Power, Light-Overload Use (PLD)
90 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature: 380–480 V input and 3-phase operation. Business Impact: Enables seamless integration with standard plant power, minimizing wiring changes and startup risk. Application: Ideal for motors driving pumps, fans, and conveyors in process lines.Feature: 90 kW output with 169 A nominal current and a 47.5–63 Hz range. Business Impact: Delivers strong torque control and scalable performance for high-load applications, reducing motor wear and downtime. Application: Suitable for heavy-duty conveyors, large pumps, and industrial fans.Feature: IP20 protection in an open-type, wall-mounted enclosure. Business Impact: Simplifies installation and maintenance, enhancing safety and serviceability in panel environments. Application: Practical for OEM panels and retrofit projects with space constraints. Feature: IE2 efficiency with a compact 90 kW drive (Frame Size R7, 49.6 kg). Business Impact: Lowers energy consumption and footprint, contributing to reduced operating costs and improved energy management. Application: Effective for energy-intensive processes such as continuous material handling. Feature: Ready stock across multiple warehouses with a 14-day lead time and clear warranty terms. Business Impact: Predictable procurement and faster project scheduling, reducing risk in uptime-critical production lines. Application: Ideal for manufacturing facilities seeking reliable, quickly deployable variable-speed drive solutions.
