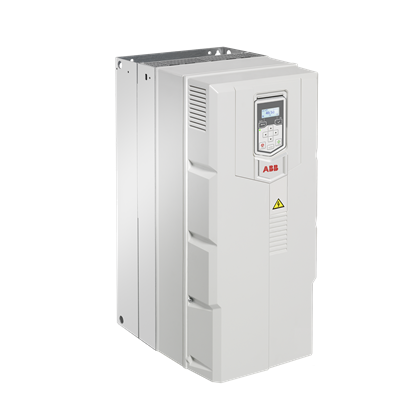

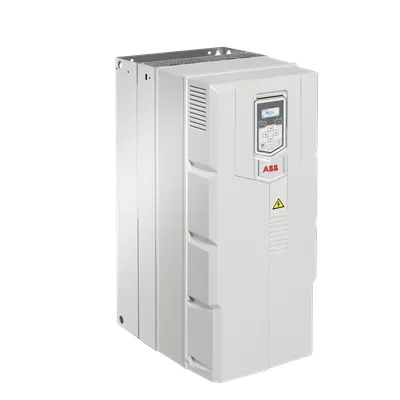

ABB ACS530-01-293A-4+N7569+P974 Frequency Converter - IP20
Part Number: 3ABD00058130-D
Quick Summary
ABB ACS530-01-293A-4+N7569+P974 is a high-performance frequency converter for 3‑phase motors in industrial automation. Many engineers face long lead times and complex setup when upgrading drives, which can stall production and drive costs higher. This unit delivers IP20 protection, 47.5–63 Hz operation, and IE2 efficiency, making it suitable for global electrical grids and demanding environments. Stocked across multiple warehouses enables fast procurement, while its wall-mounted, open-type enclosure simplifies installation and inline maintenance, delivering measurable reliability and lower total cost of ownership for pumps, conveyors, and fans.
Product Information
Extended Description
3ABD00058130-D ABB: ACS530-01-293A-4+N7569+P974 PN: 160kW, IN: 293A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | CSC | WMSACNGZH1 | WMSACNURMQ
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-293A-4+N7569+P974 PN: 160kW, IN: 293A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
62.8 kg
Product Net Depth / Length
393 mm
Product Net Height
680 mm
Product Net Width
300 mm
Package Level 1 Depth / Length
1160 mm
Package Level 1 Height
650 mm
Package Level 1 Width
490 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R8
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
293 A
Output Current, Light-Overload Use (ILD)
278 A
Output Power, Normal Use (Pn)
160 kW
Output Power, Light-Overload Use (PLD)
160 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Output power and current capability enable direct control of large motors, reducing the need for multiple drives and simplifying motor sizing in conveyors and pumps. The 160 kW PN and 293 A IN translate to robust torque at start-up, improving process stability and reducing startup shocks. The 380–480 V input range supports global installations, enabling standardized control architectures across sites with minimal wiring changes. IP20 open-type enclosure and wall-mounting simplify retrofits and new panel layouts, speeding installation while maintaining safe access for routine maintenance. IE2 efficiency lowers energy consumption, delivering tangible operating savings even in continuous duty applications. With 47.5–63 Hz operation, it handles variable-speed requirements common in HVAC, pumping, and material-handling systems. Lead times (14 days) and stocked warehouses reduce project delays and spare-part risk, supporting lean manufacturing and uptime commitments. The compact footprint (680 mm tall, 393 mm depth, 300 mm width) and weight of 62.8 kg optimize control-panel space and mounting flexibility.
Get a Quick Quote for a ABB 3ABD00058130-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058130-D?
Enquire Now
FAQs
The ACS530-01-293A supports 380–480 V three-phase power and is designed for wall-mounted, open-type installations. It measures 393 mm in depth, 680 mm in height and 300 mm in width, with a weight of 62.8 kg. It integrates into standard control panels and requires proper panel clearance and wiring per ABB installation guidelines. Lead time is typically 14 days, and stock is available in multiple warehouses to support fast project setup.
PN of 160 kW is the nominal output power the drive can deliver to the motor, while IN of 293 A is the nominal input current. The 47.5–63 Hz frequency range allows precise speed control for 3‑phase motors across regional grid variations, enabling soft-starts, torque management, and energy-efficient operation in pumps, fans, and conveyors.
Yes. With 160 kW output and 293 A current capability, the ACS530-01-293A supports large motors typical in conveyors and pump assemblies. Its IE2 efficiency and 3‑phase control provide smooth acceleration, reduced mechanical wear, and improved process stability, which translates to lower maintenance costs and higher line uptime in continuous production environments.
The unit features IP20 protection and an open-type enclosure suitable for controlled industrial spaces. It is designed for 3‑phase operation and 380–480 V input, with compatibility for European and global grids. While CE certification is common for industrial drives, always verify site-specific compliance requirements. ABB documentation provides installation guidance to meet typical safety and performance standards.
The ACS530-01-293A is stocked across multiple warehouses to minimize downtime and support fast procurement. A standard warranty applies, with a clear policy on returns for warranty service. ROI is driven by energy savings from IE2 efficiency, reduced motor wear due to soft-start control, and lower spare-part and maintenance costs thanks to reliable ABB engineering and support.
