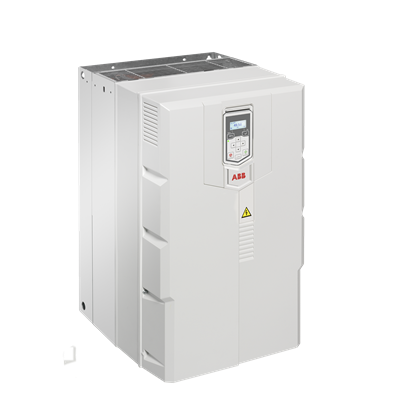

ABB ACS530-01-363A-4+N7569+P974 Frequency Converter - IP20
Part Number: 3ABD00058131-D
Quick Summary
The ABB ACS530-01-363A-4+N7569+P974 frequency converter provides precise speed control for 200 kW, 3-phase motors in demanding industrial settings. Many users wrestle with downtime, uneven torque, and rising energy costs when scaling automated processes; this drive simplifies integration and improves ramp precision. It carries CE certification, IP20 protection for indoor environments, and IE2 efficiency, helping meet European safety and energy standards. Designed for wall mounting with a compact open-type enclosure, it reduces commissioning time and supports 380–480 V, 47.5–63 Hz networks across industrial automation. With stock available at multiple warehouses and a 14-day lead time, it accelerates project timelines.
Product Information
Extended Description
3ABD00058131-D ABB: ACS530-01-363A-4+N7569+P974 PN: 200kW, IN: 363A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | CSC | WMSACNGZH1 | WMSACNURMQ
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-363A-4+N7569+P974 PN: 200kW, IN: 363A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
84.8 kg
Product Net Depth / Length
418 mm
Product Net Height
680 mm
Product Net Width
300 mm
Package Level 1 Depth / Length
1160 mm
Package Level 1 Height
650 mm
Package Level 1 Width
490 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R9
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
363 A
Output Current, Light-Overload Use (ILD)
345 A
Output Power, Normal Use (Pn)
200 kW
Output Power, Light-Overload Use (PLD)
200 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature: 3-phase input 380-480 V enables direct integration with common plant power supplies. Business Impact: Reduces wiring complexity and cabinet space while improving motor control accuracy. Application: Ideal for conveyors, pumps, and processing lines in industrial automation. Feature: 200 kW output PN with 363 A nominal current provides high power density. Business Impact: Minimizes hardware footprint and supports heavy-load applications with reliable torque. Application: Heavy-duty fans, mixers, rolling mills, or large pumps. Feature: IE2 efficiency improves energy performance and reduces operating costs. Business Impact: Lowers energy consumption and cooling requirements in continuous-duty environments. Application: Any high-power motor drive in manufacturing facilities. Feature: IP20 Open Type enclosure with wall-mount compatibility. Business Impact: Easier installation, safer maintenance access, and flexible placement in control rooms. Application: Panel-integrated drives in open spaces. Feature: Frequency range 47.5–63 Hz supports variable speed operation across diverse processes. Business Impact: Enhances process control and reduces mechanical stress on driven equipment. Application: Process lines requiring precise speed variation. Feature: 14-day lead time and stocked warehouses enable rapid procurement. Business Impact: Shortens project timelines, reduces downtime before commissioning. Application: Global plant rollouts and automation upgrades in manufacturing.
