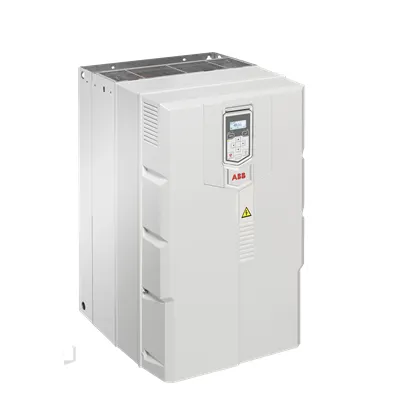

ABB 3ABD00058132-D Frequency Converter 250kW IP20
Part Number: 3ABD00058132-D
Quick Summary
ABB 3ABD00058132-D Frequency Converter is a 3-phase drive delivering precise motor speed control for industrial lines. It addresses startup delays, energy waste, and torque inconsistencies that can disrupt production and inflate costs. The unit meets IP20 protection, IE2 efficiency, and an open-type enclosure, ensuring reliable performance in open plant environments. Designed for 380–480 V systems and up to 430 A output, it integrates smoothly with medium-to-high power motors while offering straightforward installation and low-maintenance service. By optimizing load profiles and enabling soft-start, it reduces energy consumption, extends motor life, and supports better asset management for engineering teams and procurement professionals.
Product Information
Extended Description
3ABD00058132-D ABB: ACS530-01-430A-4+N7569+P974 PN: 250kW, IN: 430A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | CSC | WMSACNGZH1 | WMSACNURMQ
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-430A-4+N7569+P974 PN: 250kW, IN: 430A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
84.8 kg
Product Net Depth / Length
418 mm
Product Net Height
680 mm
Product Net Width
300 mm
Package Level 1 Depth / Length
1160 mm
Package Level 1 Height
650 mm
Package Level 1 Width
490 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R9
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
430 A
Output Current, Light-Overload Use (ILD)
400 A
Output Power, Normal Use (Pn)
250 kW
Output Power, Light-Overload Use (PLD)
200 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature: 3-phase input 380-480 V and 430 A output. Business Impact: Direct compatibility with common industrial power supplies minimizes wiring complexity and reduces cabinet footprint. Application: Suitable for pumps, fans, and conveyors in manufacturing facilities. Long-tail keyword integration: 3-phase frequency converter for 380-480 V systems. Feature: 250 kW nominal power and IE2 efficiency. Business Impact: Higher productive torque with lower energy bills and improved process control. Application: Heavy-duty motor drives in packaging lines. Feature: IP20 protection and Open Type enclosure. Business Impact: Safer operations with easy wall-mounted installation and straightforward maintenance, lowering commissioning time. Application: Open-area machinery rooms and exposed environments. Feature: Wall-mounted mounting and compact footprint. Business Impact: Space-saving installation, faster retrofits, and simpler service access. Application: Retrofit projects and new line builds. Feature: Stocked at multiple warehouses with 14 day lead time. Business Impact: Reduced downtime and predictable procurement, improving project scheduling. Application: Global maintenance enterprises and OEMs. Feature: 3-phase protection and 47.5–63 Hz frequency range. Business Impact: Broad compatibility with variable-speed drives and compliant motor control. Application: HVAC, pumps, conveyors in process industries. Industry context: Energy-saving IE2 efficiency, robust open-type design, and fast availability support predictable maintenance and measurable ROI across production floors.
